PILLION RIDER HANDLE SET (OPTIONAL)

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

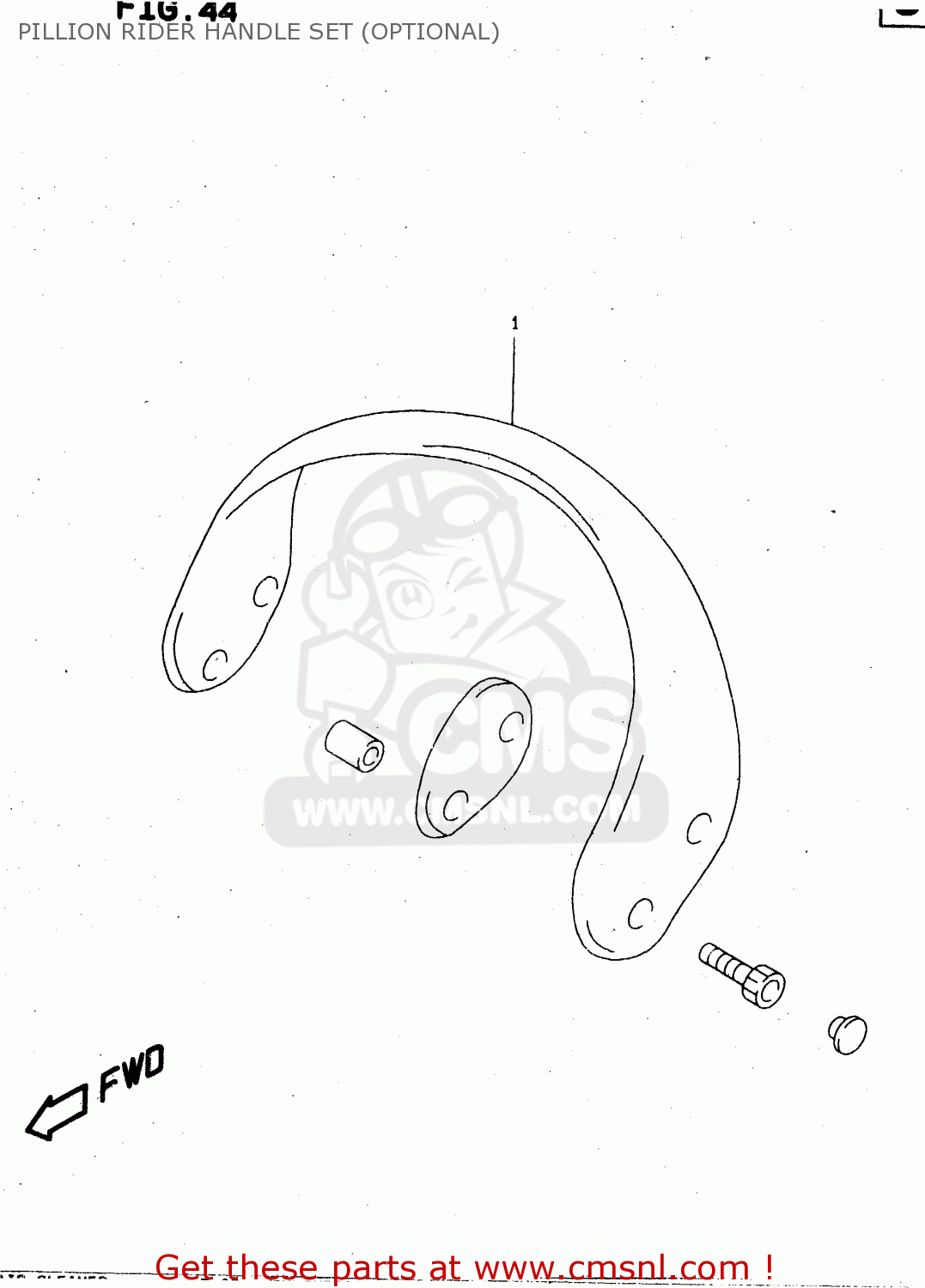

Pillion rider handle set (optional) diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

462000281028V
ref: 1
MODEL V/W

HANDLE SET,PILLION RIDER(RED)

€ 112.00

462000281033J
ref: 1
MODEL V/W/X

HANDLE SET,PILLION RIDER

€ 124.00

46200028101UH
ref: 1
MODEL V

HANDLE SET,PILLION RIDER(GREEN

€ 110.50

4620002810Y2D
ref: 1
MODEL W/X

HANDLE COMP,PILLION RIDER

€ 120.00

4620002810Y3G
ref: 1
MODEL W

HANDLE COMP,PILLION RIDER.

€ 142.50

4620002810Y0W
ref: 1
MODEL X

HANDLE SET,PILLION RIDER(ORANG

€ 109.50

4620002810Y7H
ref: 1
MODEL X

HANDLE SET,PILLION RIDER

€ 137.50
