OPTIONAL

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

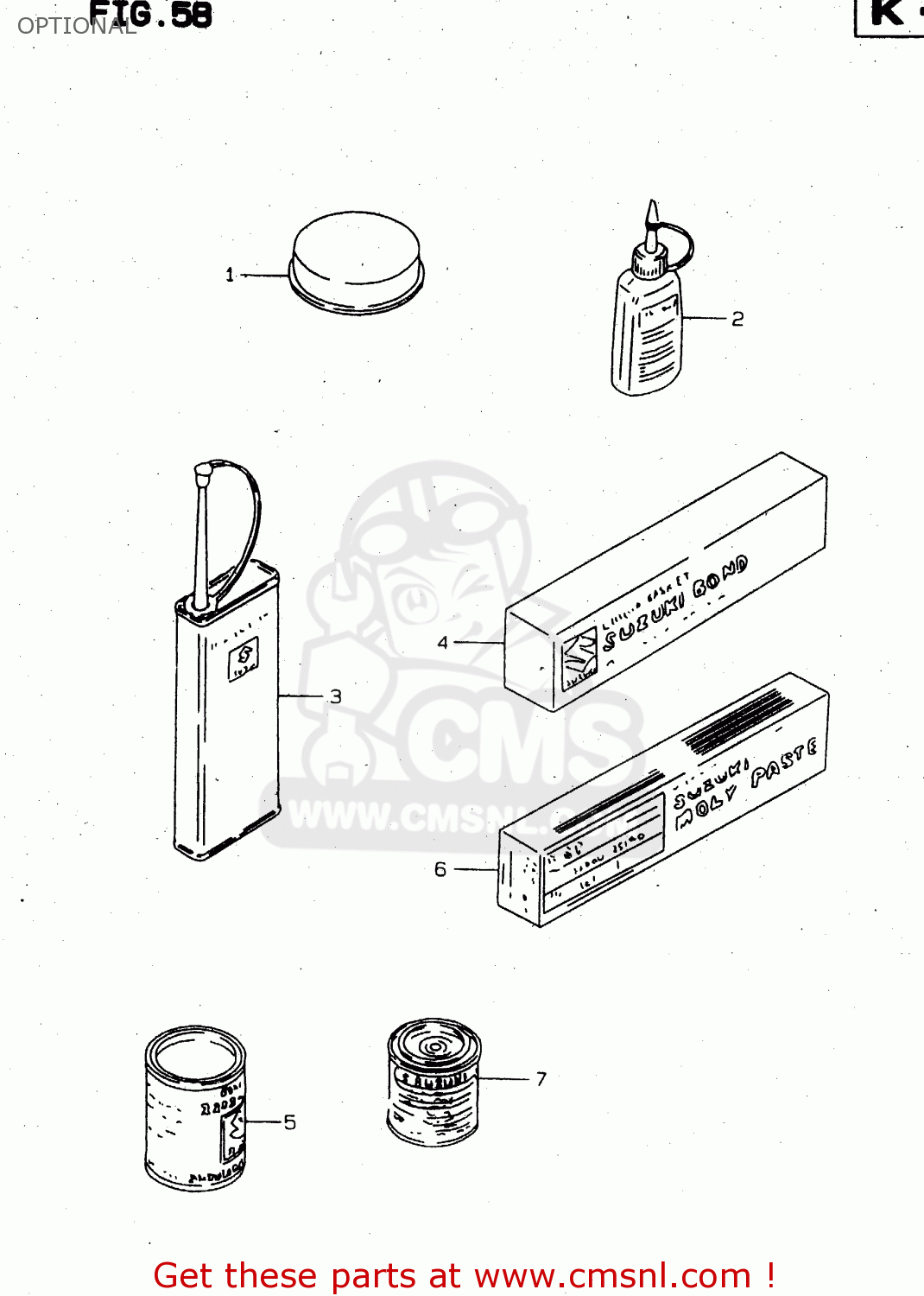

Optional diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

OPTIONAL TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

OPTIONAL TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

9900025110
ref: 1
20G

GREASE,PBC FOR BRK PAD 20G

€ 44.00

2

9900032020
ref: 2
50G

THREAD LOCK(1333B RED 50G)

€ 29.00

2

9900032030
ref: 2
50G

THREAD LOCK NO.1303B PURPL 50G

€ 40.00

2

9900032050
ref: 2
50G

THREAD LOCK NO.1342

€ 20.00

2

9900032100
ref: 2
50G

THREAD LOCK NO.1305 GREEN 50G

€ 40.00

2

9900032130
ref: 2
50G

THREAD LOCK SUPER(1360)

€ 29.00

3

9900032040
ref: 3
200G

THREAD LOCK NO.1401 CLEAR 200G

€ 92.50

4

9900031140
ref: 4
100G

LIQUID GSKT NO.1207B 100G BLK

€ 92.50

4

9900031110
ref: 4
100G

LIQUID GSKT NO.1215 250G

€ 92.50

5

9900025030
ref: 5
150G

GREASE(C)EP2 LITHIUM 150G

€ 8.00

6

9900025140
ref: 6
50G

SUZUKI MOLY PASTE

€ 12.00

7

990001020933J
ref: 7
90G

PAINT(PEARL NOVELTY BLACK)

€ 76.00

7

99000102091UH
ref: 7
90G

PAINT (MARBLE PRIME GREEN)

€ 76.00

7

990001020928V
ref: 7
90G

PAINT (MARBLE ITALIAN RED)

€ 76.00

7

9900010209Y2D
ref: 7
90G

PAINT (FLASH SILVER METALLIC)

€ 76.00

7

9900010209Y3G
ref: 7
90G

PAINT (CANDY JADE LIME YELLOW)

€ 76.00

7

9900010209Y0W
ref: 7
90G

PAINT (CANDY KORAN ORANGE)

€ 76.00

7

9900010209Y7H
ref: 7
90G

PAINT (PEARL DARK SPACE BLUE)

€ 76.00
