FRAME

TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

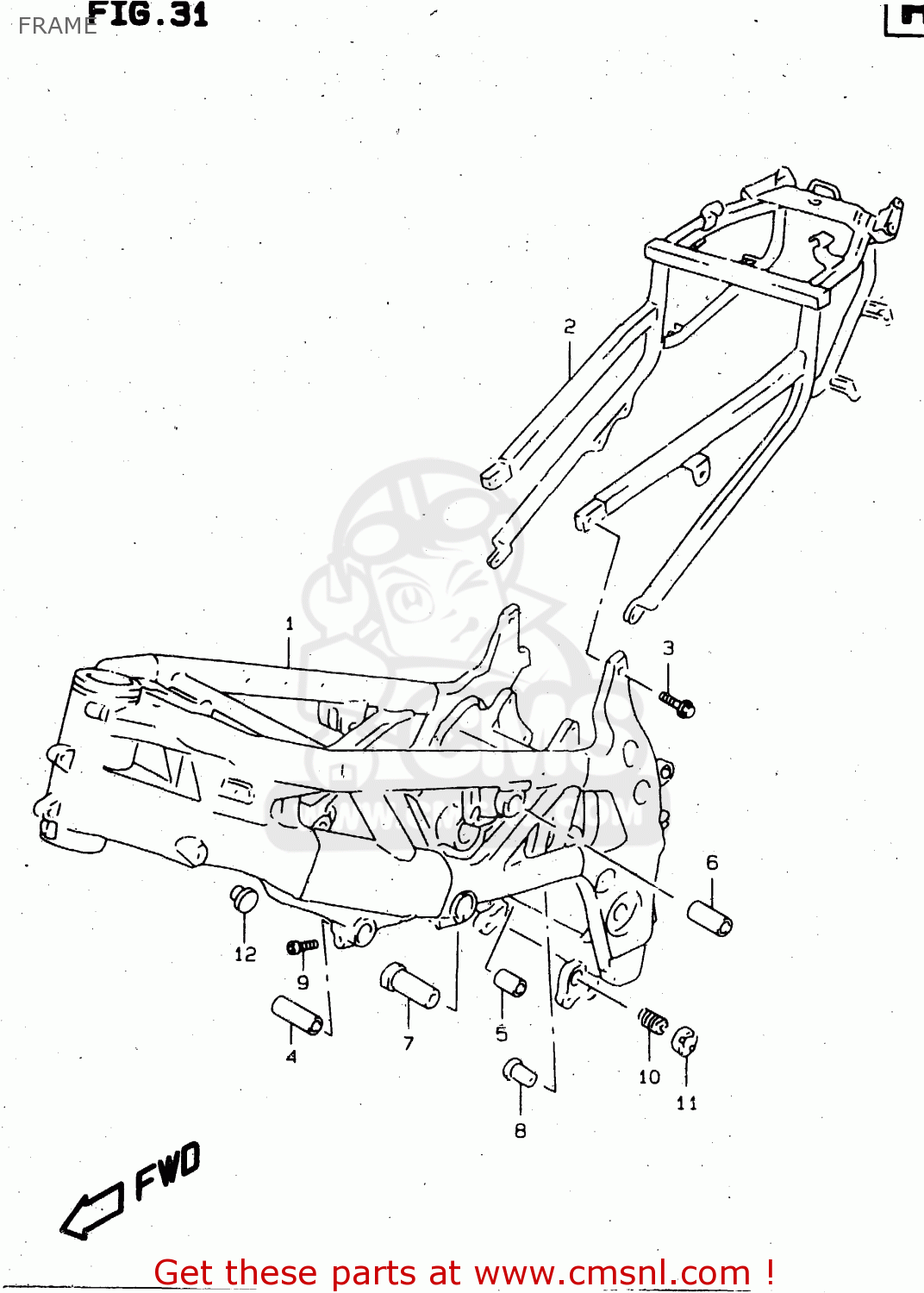

Frame diagram TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRAME TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRAME TL1000S 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

4110002F00
ref: 1
MODEL V

FRAME COMP

€ 1,705.50

1

4110002F03
ref: 1
MODEL W/X

FRAME

€ 1,705.50

2

4120002F00
ref: 2

RAIL,SEAT

€ 1,255.00

3

5919933E00
ref: 3
MODEL V

BOLT,SEAT RAIL

€ 6.00

3

0910310296
ref: 3
MODEL W/X

BOLT(10X30)

€ 6.00

4

4119802F00
ref: 4

SPACER,ENG HEAD MTG FR,L

€ 31.50

5

4194102F00
ref: 5

SPACER,ENG HEAD MTG RR,R

€ 20.00

6

4194202F00
ref: 6

SPACER,ENG HEAD MTG RR,L

€ 17.00

7

4193202F00
ref: 7

SPACER,CRANK CASE MTG FR,L

€ 41.50

8

4191133E00
ref: 8

SPACER,ENGINE MOUNTING

€ 16.50

9

0713008307
ref: 9

BOLT

€ 4.50

10

4192133E10
ref: 10
MODEL V

BOLT,CRANKCASE ADJUST

€ 46.00

10

4192133E11
ref: 10
MODEL W/X

BOLT,CRANKCASE ADJUST

€ 46.00

11

4192233E10
ref: 11

NUT,CRANKCASE ADJUST

€ 14.50

12

0925006001
ref: 12

CAP

€ 2.00
