CRANK BALANCER
TS125R 1993 (P) (E02 E04 E18 E21)

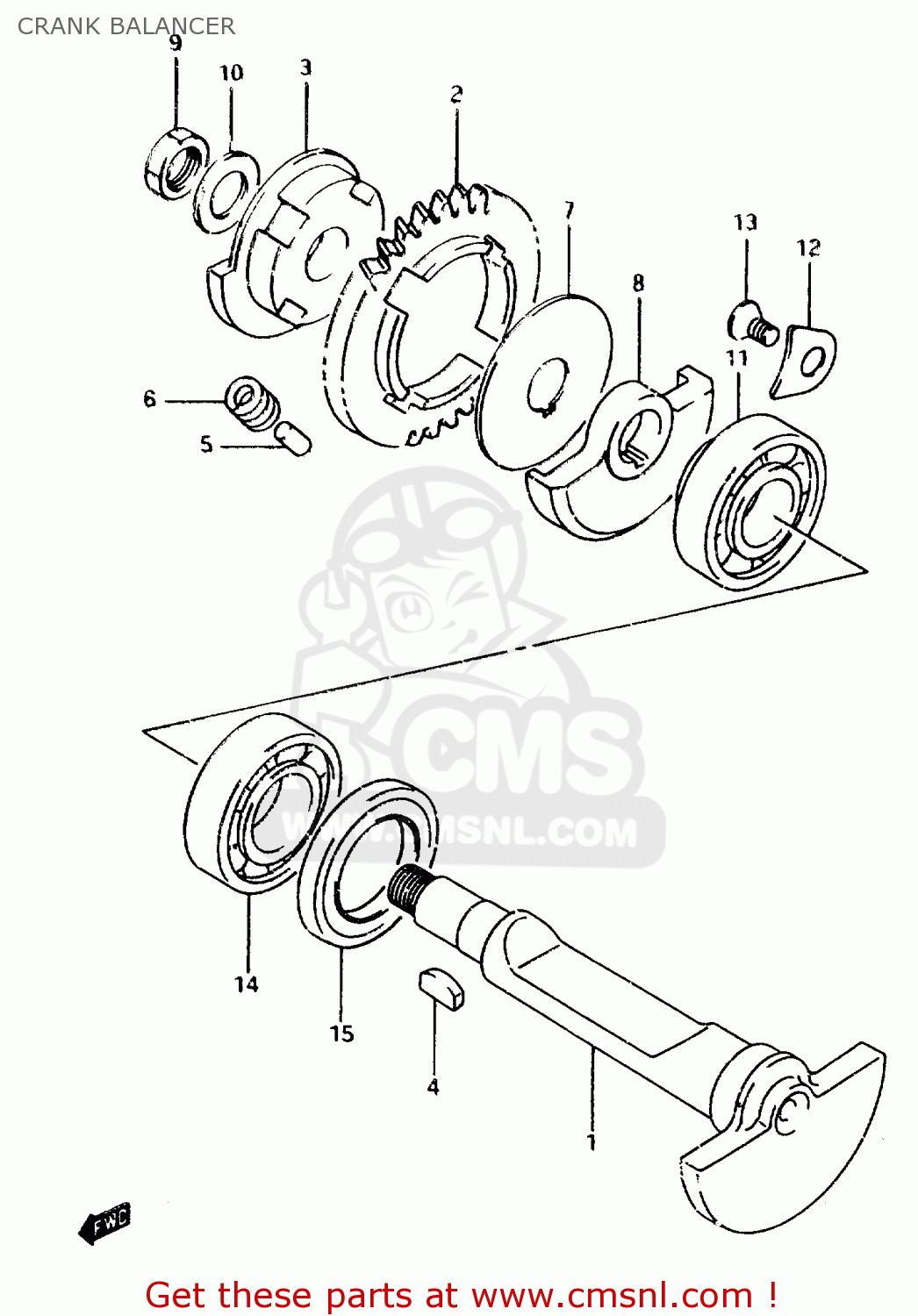

Crank balancer diagram TS125R 1993 (P) (E02 E04 E18 E21)
CRANK BALANCER TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
1265103D00
ref: 1-1
MODEL K/L//M/N
SHAFT, CRANK BALANCER
€ 58.00
1-2
1265103D01
ref: 1-2
MODEL P/R
SHAFT, CRANK BALANCER
€ 58.00
2
1266612B10
ref: 2
GEAR, BALANCER DRIVEN
€ 85.50
3
1266903D00
ref: 3
RACE, DRIVEN GEAR INNER
€ 36.00
4
0834131049
ref: 4
KEY 4MM
€ 3.50
5
0920205027
ref: 5
PIN(5X8.8)
€ 2.00
6
0944009028
ref: 6
SPRING
€ 2.50
7
0916617006
ref: 7
WASHER
€ 4.00
8
1265403D01
ref: 8
WEIGHT, CRANK BALANCER RH
€ 37.50
9
0914012034
ref: 9
NUT
€ 2.00
10
0916412020
ref: 10
WASHER
€ 2.00
11
0926215027
ref: 11
RH
BEARING(15X42X13)
€ 17.50
12
1254203D00
ref: 12
RETAINER,BEARING
€ 4.50
13
0912606011
ref: 13
SCREW(6X12)
€ 2.00
14
0926220106
ref: 14
LH
BEARING(20X42X12)
€ 20.50
15
0928325089
ref: 15
SEAL,OIL(25X42X6)
€ 10.00
