TS125R 1993 (P) (E02 E04 E18 E21)

Electrical diagram TS125R 1993 (P) (E02 E04 E18 E21)

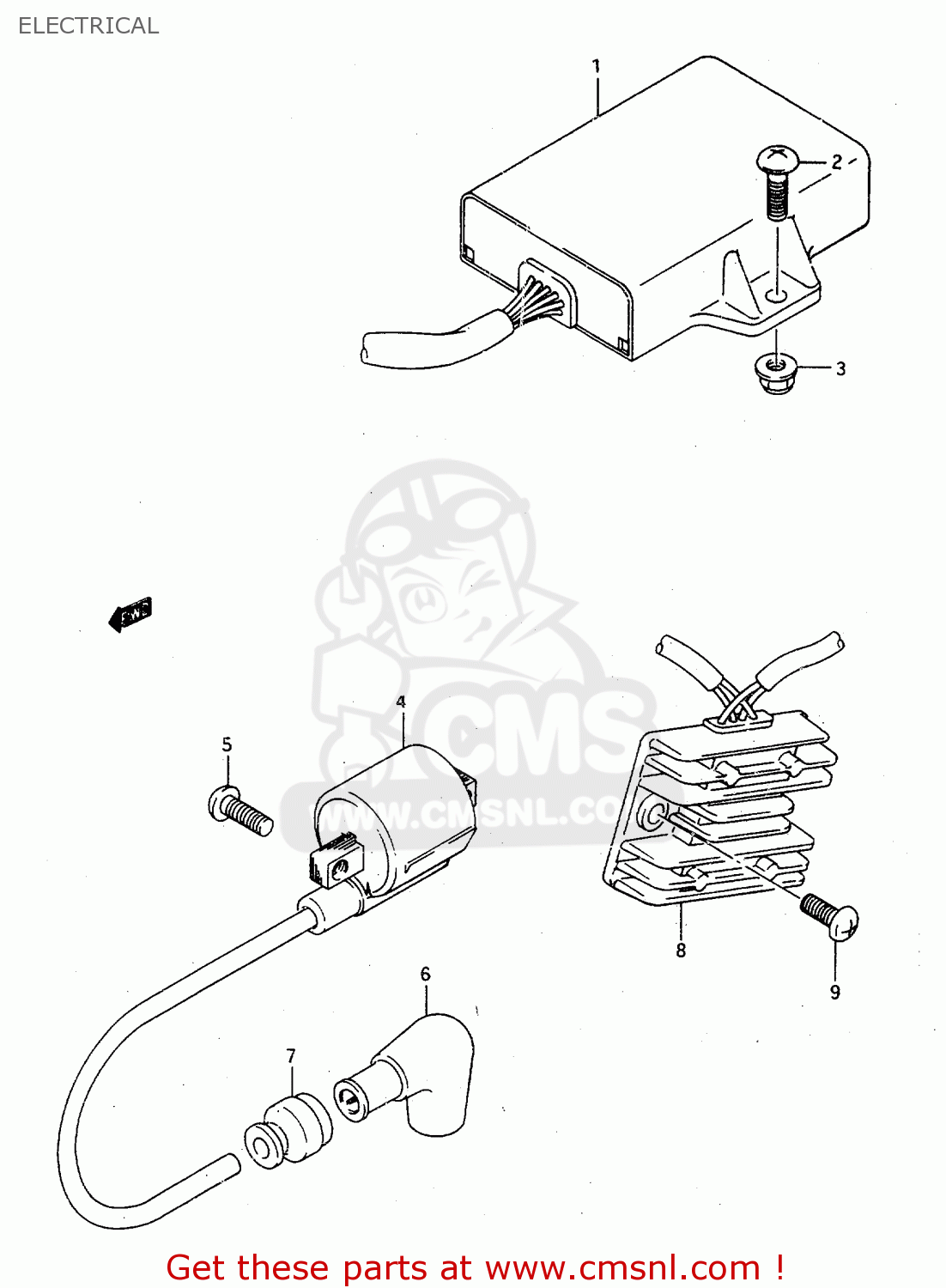

ELECTRICAL TS125R 1993 (P) (E02 E04 E18 E21)
ELECTRICAL TS125R 1993 (P) (E02 E04 E18 E21)
ELECTRICAL TS125R 1993 (P) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
3290003D30
ref: 1-1
CDI UNIT
€ 955.00
1-2
3290003D00
ref: 1-2
E4
CDI UNIT
€ 955.00
1-3
3290003D10
ref: 1-3
E18
CDI UNIT
€ 955.00
2
0214206206
ref: 2
SCREW
€ 2.00
3
0831931066
ref: 3
NUT
€ 2.50
4
3341003D00
ref: 4
COIL ASSY,IGNITION
3341003D00
€ 99.50
5
0211206166
ref: 5
SCREW
€ 2.00
6
3351020A00
ref: 6
CAP,SPARK PLUG
€ 23.00
7
3354238B00
ref: 7
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
8
3280003D10
ref: 8
RECTIFIER ASSY
€ 142.50
9
0211206126
ref: 9
SCREW
0211206126
€ 1.50
