TRANSMISSION

TS125R 1993 (P) (E02 E04 E18 E21)

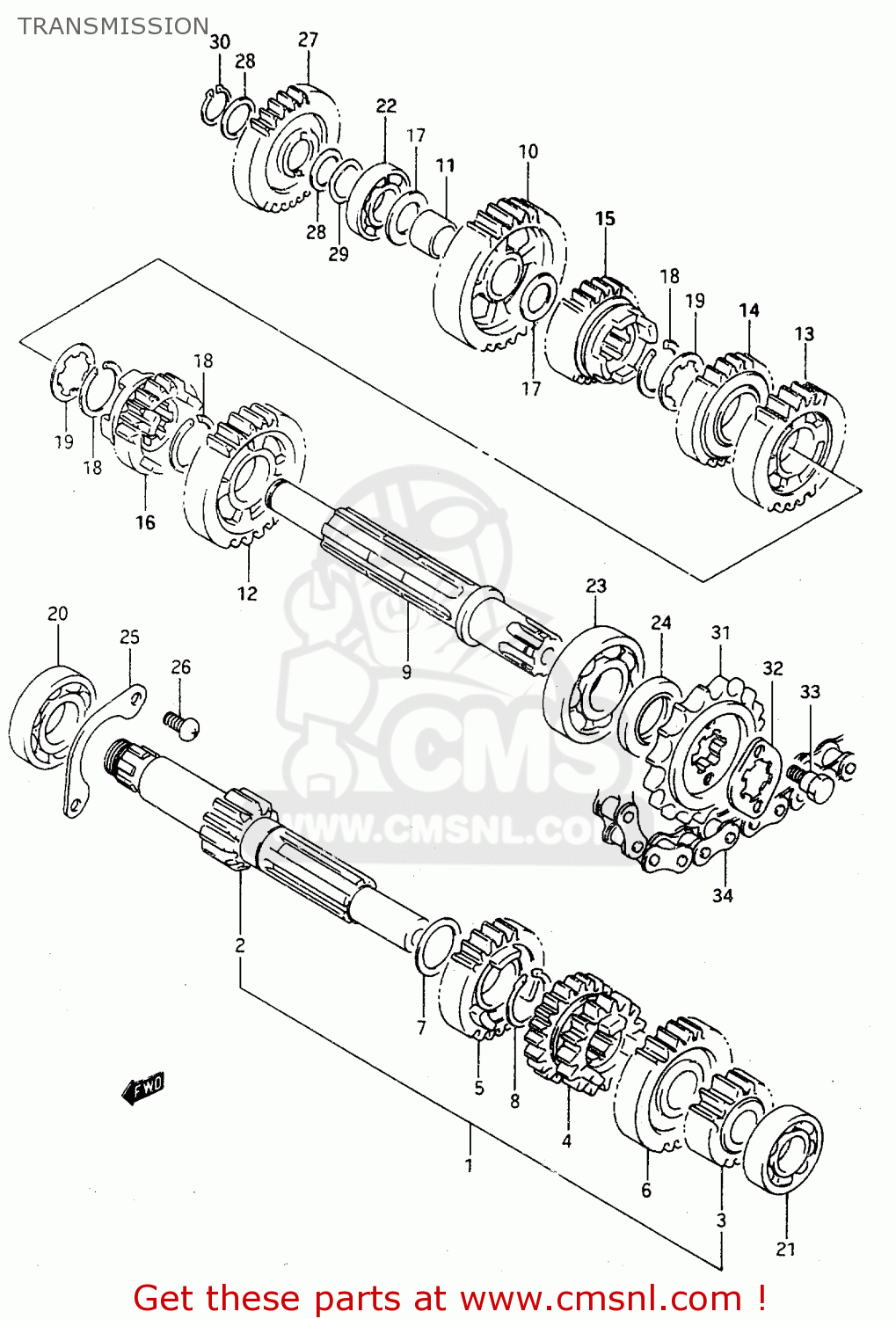

Transmission diagram TS125R 1993 (P) (E02 E04 E18 E21)

TRANSMISSION TS125R 1993 (P) (E02 E04 E18 E21)
TRANSMISSION TS125R 1993 (P) (E02 E04 E18 E21)
TRANSMISSION TS125R 1993 (P) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
2412003D02
ref: 1-1
MODEL K/L/M
COUNTER SHAFT
€ 247.50
1-2
2412003D05
ref: 1-2
MODEL N/P/R
COUNTER SHAFT
2412003D05
€ 247.50
2-1
2412103D01
ref: 2-1
MODEL K/L/M
SHAFT, COUNTER (NT:11)
2412103D01
€ 101.50
2-2
2412103D02
ref: 2-2
MODEL N/P/R
SHAFT,COUNTER(NT11)
€ 101.50
3-1
2422103D01
ref: 3-1
MODEL K/L/M
GEAR, 2ND DRIVE (NT:14)
2422103D01
€ 60.00
3-2
2422103D02
ref: 3-2
MODEL N/P/R
GEAR,2ND DRIVE(NT:14)
2422103D02
€ 60.00
4-1
2423103D01
ref: 4-1
MODEL K/L/M
GEAR, 3RD/4TH DRIVE (NT:15/21)
€ 75.00
4-2
2423103D02
ref: 4-2
MODEL N/P/R
GEAR, 3RD/4TH DRIVE (NT:15/21)
€ 75.00
5
2425103D00
ref: 5
GEAR,5TH DRIVE(NT:24)
2425103D00
€ 67.00
6
2426103D02
ref: 6
GEAR, 6TH DRIVE (NT:25)
€ 44.50
7
0821120261
ref: 7
WASHER
0821120261
€ 2.50
8
0938020007
ref: 8
CIRCLIP
0938020007
€ 3.00
9
2413103D00
ref: 9
SHAFT,DRIVE
€ 102.00
10
2431103D02
ref: 10
GEAR, 1ST DRIVEN (NT:29)
€ 51.00
11
0930015015
ref: 11
BUSH(15X18X13)
€ 13.00
12-1
2432103D01
ref: 12-1
MODEL K/L
GEAR, 2ND DRIVEN (NT:26)
€ 191.00
12-2
2432103D03
ref: 12-2
MODEL M
GEAR, 2ND DRIVEN (NT:26)
€ 191.00
12-3
2432119D00
ref: 12-3
MODEL N/P/R, 24321-0
GEAR,2ND DRIVEN(NT:26)
€ 191.00
13
2433103D01
ref: 13
GEAR,3RD DRIVEN(NT:21)
2433103D01
€ 49.00
14
2434103D00
ref: 14
GEAR,4TH DRIVEN(NT:23)
2434103D00
€ 49.00
15
2435103D00
ref: 15
GEAR,5TH DRIVE
€ 52.00
16-1
2436103D00
ref: 16-1
MODEL K/L/M/N
GEAR, 6TH DRIVEN (NT:20)
€ 52.50
16-2
2436103D01
ref: 16-2
MODEL P/R
GEAR, 6TH DRIVEN (NT:20)
€ 52.50
17
0821115241
ref: 17
WASHER,THRUST
€ 4.00
18
0938022006
ref: 18
CIRCLIP
0938022006
€ 3.00
19
0916722011
ref: 19
WASHER,LOCK
0916722011
€ 3.00
20
0926220111
ref: 20
RH
BEARING(20X47X10.5)
0926220111
€ 25.50
21
0811360020
ref: 21
LH
BEARING
0811360020
€ 14.00
22
0926215025
ref: 22
RH
BEARING(15X35X8)
0926215025
€ 17.00
23
0926220110
ref: 23
LH
BEARING(20X52X12.5)
0926220110
€ 33.50
24
0928320038
ref: 24
OIL SEAL (20X35X5)
0928320038
€ 5.50
25
2474112B00
ref: 25
RETAINER,CNTR SHAFT BEARING
2474112B00
€ 6.00
26
0211206128
ref: 26
SCREW 6X12
0211206128
€ 2.00
27
2626036A01
ref: 27
GEAR,KICK STARTER IDLE
€ 39.50
28
0822115206
ref: 28
THRUST WASHER
€ 2.50
29
0916415008
ref: 29
WAVE WASHER
€ 3.00
30
0833131156
ref: 30
CIRCLIP
0833131156
€ 2.00
31-1
2751003D10
ref: 31-1
MODEL KMODEL L/M/N E
SPROCKET,ENGINE(NT:17)
2751003D10
€ 28.00
31-2
2751003D00
ref: 31-2
MODEL L/M/N/P/R
SPROCKET, ENGINE (NT:15)
2751003D00
€ 37.00
32
2751236200
ref: 32
PLATE
2751236200
€ 7.00
33
0911106039
ref: 33
BOLT(6X13)
0911106039
€ 6.00
34-1
2760036A10130
ref: 34-1
CHAIN ASSY, DRIVE (DID 428VCA*130LE)
€ 106.50
34-2
2760036A10132
ref: 34-2
E18
CHAIN ASSY, DRIVE (DID 428VCA*132LE)
€ 85.00
