EXHAUST VALVE
TS125R 1993 (P) (E02 E04 E18 E21)

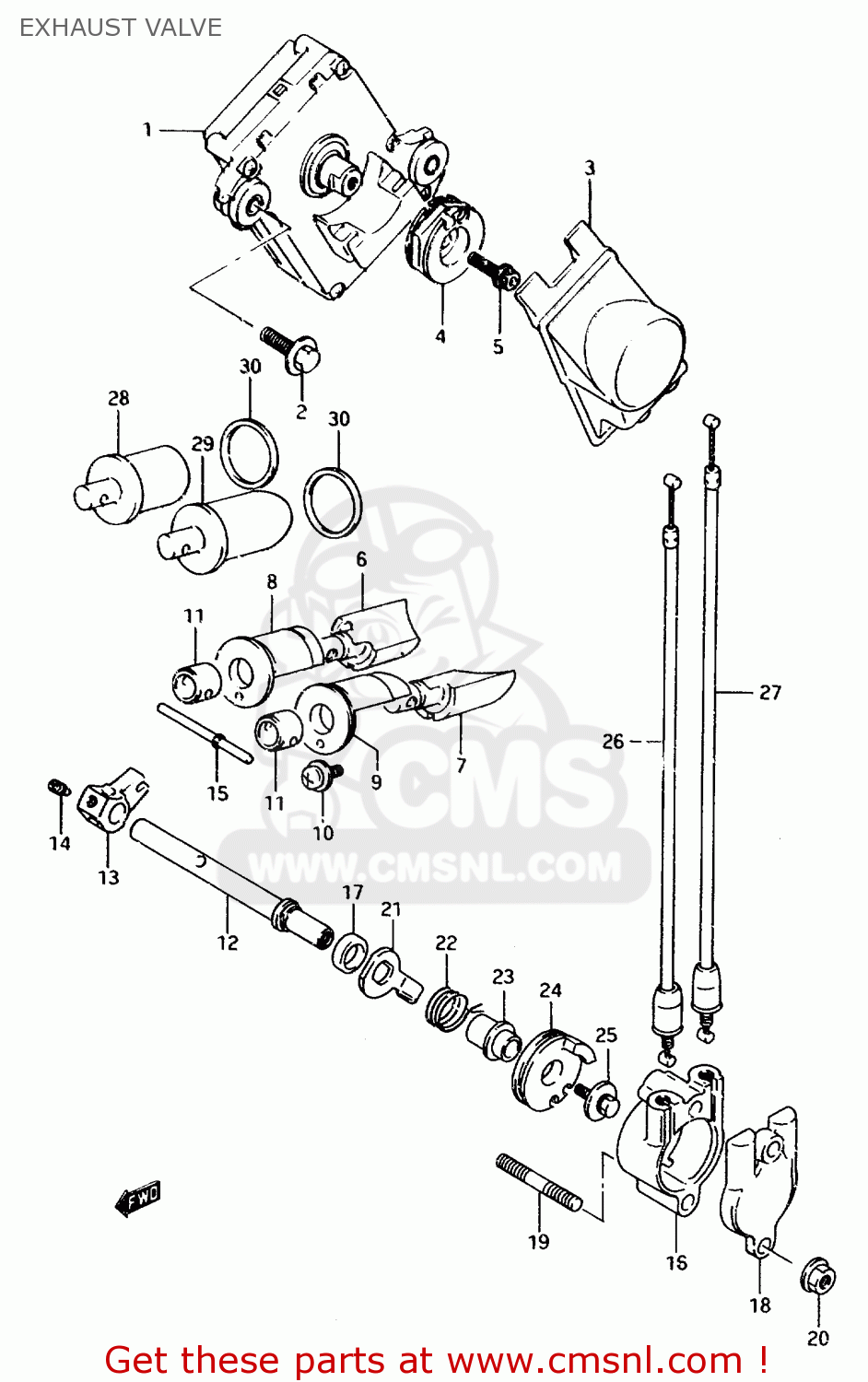

Exhaust valve diagram TS125R 1993 (P) (E02 E04 E18 E21)
EXHAUST VALVE TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
3397003D00
ref: 1
ACTUATOR ASSY,EXHAUST VALVE
€ 513.50
2
0911606025
ref: 2
BOLT(6X25)
€ 2.50
3
3397303D00
ref: 3
COVER,ACTUATOR
€ 9.50
4
1126920A04
ref: 4
PULLEY,CONTROLLER
€ 32.00
5-1
0712005208
ref: 5-1
MODEL K/L/M/N/P
BOLT
€ 2.00
5-2
0712005203
ref: 5-2
MODEL R
BOLT
€ 2.00
6
1125403D01
ref: 6
EXCEPT MODEL K E18
VALVE,EXHAUST,R
€ 127.00
7
1125503D01
ref: 7
EXCEPT MODEL K E18
VALVE,EXHAUST,L
€ 115.00
8
1126103D00
ref: 8
EXCEPT MODEL K E18
GUIDE, EXHAUST VALVE RH
€ 172.50
9
1126203D00
ref: 9
EXCEPT MODEL K E18
GUIDE,EXHAUST VALVE,L
€ 117.50
10-1
0211215128
ref: 10-1
MODEL K/L/M/N/P
SCREW
€ 1.50
10-2
0214205123
ref: 10-2
MODEL R
SCREW 5X12
€ 1.50
11
1126312C01
ref: 11
11263-12C00
SPACER,EXHAUST VALVE
€ 29.50
12
1125803D00
ref: 12
SHAFT, EXHAUST VALVE
€ 32.50
13
1126400B23
ref: 13
ARM,EXHAUST VALVE SHAFT
€ 17.00
14
0913406013
ref: 14
SCREW(6X10)
€ 4.50
15
1125301B31
ref: 15
PIN,EXHAUST VALVE 48.5MM
€ 20.50
16
1126503D01
ref: 16
HOLDER,EXHAUST VALVE
€ 30.50
17
0928208004
ref: 17
SEAL,OIL(8X16X5)
€ 7.50
18
1125903D01
ref: 18
COVER,HOLDER
€ 19.00
19
0142106358
ref: 19
STUD BOLT
€ 2.00
20-1
0915906017
ref: 20-1
MODEL K/L/M/N/P
NUT
€ 2.50
20-2
0831610063
ref: 20-2
MODEL R
NUT
€ 2.50
21
1126703D00
ref: 21
LEVER,EXHAUST VALVE
€ 6.00
22
1128503D00
ref: 22
EXCEPT MODEL K E18
SPRING,EXHAUST VALVE LEVER
€ 6.00
23
1126803D00
ref: 23
SPACER,EXHAUST VALVE PULLEY
€ 9.00
24
1126603D00
ref: 24
PULLEY, EXHAUST VALVE
€ 18.00
25
0911805005
ref: 25
BOLT(5X12)
€ 4.00
26
1127603D00
ref: 26
CABLE ASSY,EXHAUST VALVE NO.1
€ 15.50
27
1127703D00
ref: 27
CABLE ASSY,EXHAUST VALVE NO.2
€ 14.50
28
1129703D00
ref: 28
MODEL K E18
PLUG, EXHAUST RH
€ 217.50
29
1129803D00
ref: 29
MODEL K E18
PLUG, EXHAUST LH
€ 228.50
30-1
0918124002
ref: 30-1
MODEL K E18
SHIM(24X27X0.8)
€ 3.50
30-2
0918124003
ref: 30-2
MODEL K E18
SHIM,T:0.9
€ 7.50
30-3
0918124004
ref: 30-3
MODEL K E18
SHIM(24X27X1)
€ 5.50
