HEADLAMP COVER (MODEL M/N/P/R)

TS125R 1993 (P) (E02 E04 E18 E21)

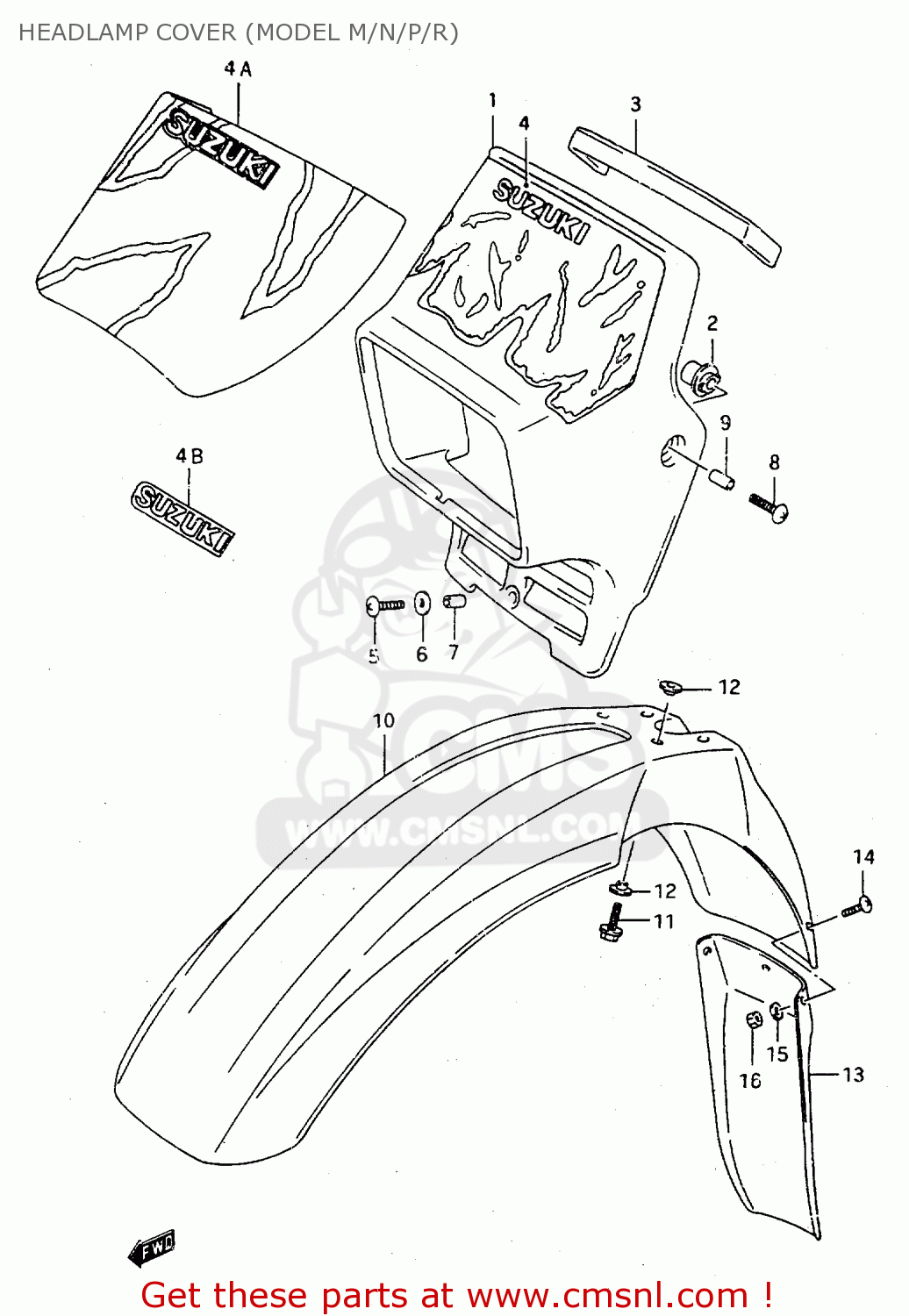

Headlamp cover (model m/n/p/r) diagram TS125R 1993 (P) (E02 E04 E18 E21)

HEADLAMP COVER (MODEL M/N/P/R) TS125R 1993 (P) (E02 E04 E18 E21)
HEADLAMP COVER (MODEL M/N/P/R) TS125R 1993 (P) (E02 E04 E18 E21)
HEADLAMP COVER (MODEL M/N/P/R) TS125R 1993 (P) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1-1
5181001A1030H
ref: 1-1
MODEL M FOR 30HMODEL
COVER,HEADLAMP
5181001A1030H
€ 66.50
1-2
5181001A1025Y
ref: 1-2
MODEL M/N/P FOR 25Y
COVER, HEADLAMP (YELLOW)
5181001A1025Y
€ 63.00
1-3
5181001A100NF
ref: 1-3
MODEL M/N/P FOR 0NFM
COVER,HEADLAMP(BLUE)
5181001A100NF
€ 66.50
2
5182101A00
ref: 2
SPACER,HEAD LAMP COVER
5182101A00
€ 5.50
3
5182701A00
ref: 3
CUSHION,HEAD LAMP HOUSING
5182701A00
€ 2.50
4-1
6872503D501DW
ref: 4-1
MODEL M FOR 30H
TAPE, HEADLAMP COVER
€ 0.00
4-2
6872503D501DV
ref: 4-2
MODEL M FOR 25Y
TAPE, HEADLAMP COVER
€ 0.00
4-3
6872503D501DY
ref: 4-3
MODEL M FOR 0NF
TAPE, HEADLAMP COVER
€ 46.50
4A-1
6872503D70N52
ref: 4A-1
MODEL N FOR 25Y
TAPE, HEADLAMP COVER
€ 0.00
4A-2
6872503D70N53
ref: 4A-2
MODEL N FOR 0NF
TAPE, HEADLAMP COVER
€ 24.50
4B-1
6817144B00A56
ref: 4B-1
MODEL P FOR 25Y
EMBLEM,SUZUKI(YELLOW/PURPLE)
6817144B00A56
€ 10.00
4B-2
6817144B003UT
ref: 4B-2
MODEL P FOR 0NF
EMBLEM,RR FENDER
€ 7.00
4B-3
6817144B00C5Z
ref: 4B-3
MODEL R FOR 3AE
EMBLEM,HEADLAMP COVER
€ 9.00
4B-4
6817144B003UT
ref: 4B-4
MODEL R FOR C3K
EMBLEM,RR FENDER
€ 7.00
5
0214205207
ref: 5
SCREW
0214205207
€ 2.00
6
0916005036
ref: 6
WASHER (5.5X14X1.2)
0916005036
€ 2.00
7
0918006035
ref: 7
SPACER (6.1X8X12)
0918006035
€ 2.50
8-1
0912506038
ref: 8-1
MODEL M/N/P
SCREW
0912506038
€ 3.00
8-2
0214206257
ref: 8-2
MODEL R
SCREW
€ 3.00
9
0918006040
ref: 9
SPACER (6.1X8X15.5)
0918006040
€ 2.00
10-1
5311127C2030H
ref: 10-1
MODEL M FOR 30HMODEL
FENDER, FRONT (WHITE)
€ 87.00
10-2
5311127C2025Y
ref: 10-2
MODEL M/N/P FOR 25YM
FENDER, FRONT (YELLOW)
€ 82.50
10-3
5311127C200NF
ref: 10-3
MODEL M/N FOR 0NF
FENDER, FRONT (BLUE)
5311127C200NF
€ 68.50
10-4
5311127C3030H
ref: 10-4
MODEL M E15,E17,E18
FENDER, FRONT (WHITE)
€ 0.00
10-5
5311127C3025Y
ref: 10-5
MODEL M/N/P E15,E17,
FENDER, FRONT (YELLOW)
€ 0.00
10-6
5311127C300NF
ref: 10-6
MODEL M/N E15,E17,E1
FENDER, FRONT (BLUE)
€ 0.00
11-1
0151706167
ref: 11-1
MODEL M/N/P
BOLT 6X16
0151706167
€ 1.50
11-2
0155006163
ref: 11-2
MODEL R
BOLT
0155006163
€ 2.50
12
0916906053
ref: 12
WASHER
0916906053
€ 2.00
13
5331103D00
ref: 13
E15,E17,E18
MUD FLAP, FRONT FENDER
€ 0.00
14
0912505042
ref: 14
E15,E17,E18
SCREW(5X10)
0912505042
€ 2.50
15
0916005016
ref: 15
E15,E17,E18
WASHER
0916005016
€ 1.50
16
0914005006
ref: 16
E15,E17,E18
NUT
0914005006
€ 2.00
21
0912505042
ref: 21
E15,E17,E18
SCREW(5X10)
0912505042
€ 2.50
22
0916005016
ref: 22
E15,E17,E18
WASHER
0916005016
€ 1.50
23
0831022056
ref: 23
E15,E17,E18
NUT 5MM
0831022056
€ 2.50
