KICK STARTER
TS125R 1993 (P) (E02 E04 E18 E21)

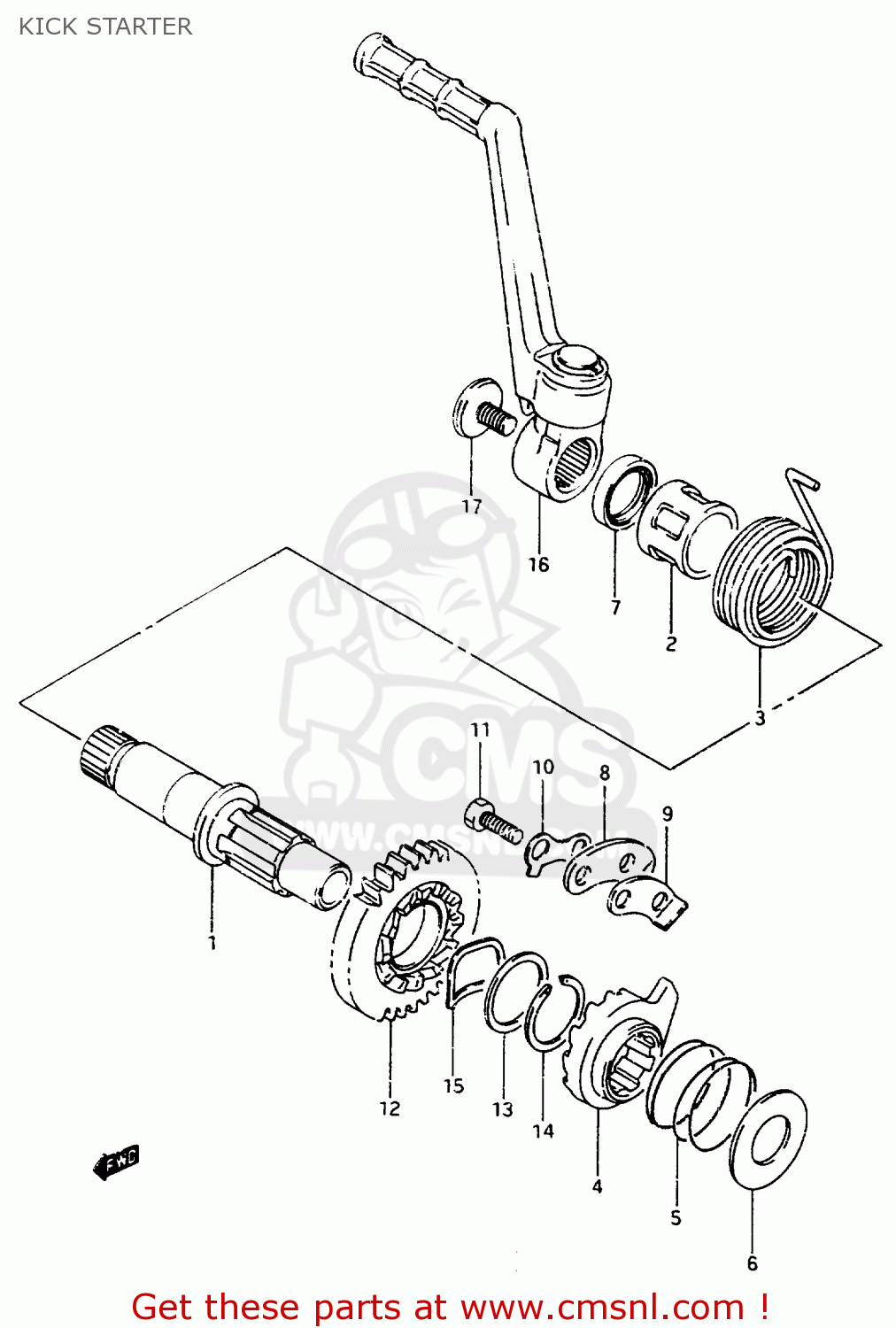

Kick starter diagram TS125R 1993 (P) (E02 E04 E18 E21)
KICK STARTER TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
2621108D00
ref: 1
SHAFT,KICK STARTER
€ 61.50
2
2622103D00
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.50
3
0944843003
ref: 3
SPRING
€ 8.00
4
2623103D00
ref: 4
STARTER, KICK
€ 23.50
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821117341
ref: 6
WASHER
€ 2.00
7
0928320044
ref: 7
SEAL,OIL(20X27X6)
€ 8.00
8
2623230000
ref: 8
GUIDE,KICK STARTER
€ 6.00
9
2623330000
ref: 9
STOPPER,KICK STARTER
€ 4.00
10
0916906003
ref: 10
WASHER
€ 1.50
11-1
0110706167
ref: 11-1
MODEL K/L/M/N/P
BOLT
€ 3.00
11-2
0150006163
ref: 11-2
MODEL R
BOLT
€ 2.00
12
2624003D00
ref: 12
GEAR, KICK STARTER DRIVE (NT:29)
€ 117.00
13-1
0822122286
ref: 13-1
~F.NO.112113
THRUST WASHER
€ 2.50
13-2
0821122281
ref: 13-2
F.NO.112114~
SHIM
€ 4.00
14
0938022006
ref: 14
CIRCLIP
€ 3.00
15
0916422003
ref: 15
~F.NO.112113
WASHER
€ 4.00
16
2630008D00
ref: 16
LEVER ASSY, KICK STARTER
€ 135.50
17-1
0910608073
ref: 17-1
MODEL K, 09106-08098
BOLT
€ 6.50
17-2
0910608098
ref: 17-2
MODEL L/M/N/P/R
BOLT(8X14)
€ 6.50
