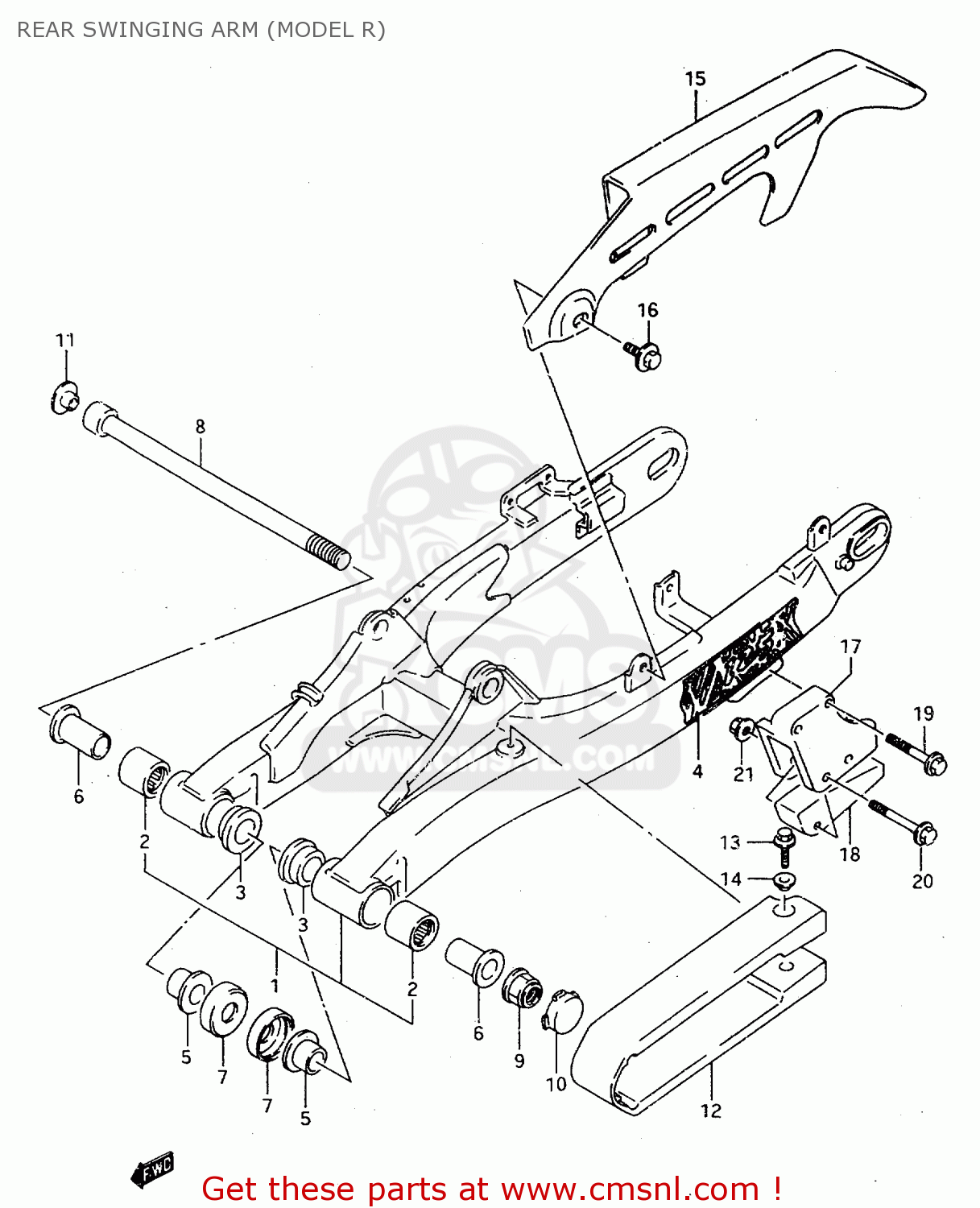

REAR SWINGING ARM (MODEL R)

ref

part #

description

quantity

1

6100003D30
ref: 1

SWINGING ARM ASSY, REAR

€ 454.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

6126114101
ref: 3

BUSH,RR SWINGINGARM PIVOT

€ 10.00

4

6838103D11C2N
ref: 4

EMBLEM, 125

€ 0.00

5

6125214100
ref: 5

SPACER,RR SWGARM PIVOT INNER

€ 12.50

6

6125114100
ref: 6

SPACER,RR SWGARM PIVOT

€ 16.00

7

6126240400
ref: 7

COVER,RR SWGARM DUST SEAL

€ 4.00

8

6121103D00
ref: 8

SHAFT, PIVOT

€ 27.00

9

0831931148
ref: 9

NUT

€ 9.00

10

6122213A00019
ref: 10

CAP,PIVOT

€ 4.50

11

6122313A00019
ref: 11

CAP,SHAFT

€ 4.50

12

6127344A00
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 24.00

13

0155005163
ref: 13

BOLT

€ 2.00

14

0916905012
ref: 14

WASHER

€ 3.00

15

6131136A00
ref: 15

CASE,CHAIN

€ 30.50

16

0911606060
ref: 16

BOLT 6X8

€ 2.50

17

6134202B02
ref: 17

GUIDE,CHAIN

€ 15.00

18

6134802B20
ref: 18

DEFENSE,CHAIN GUIDE

€ 11.00

19

0155006303
ref: 19

BOLT

€ 2.50

20

0155006453
ref: 20

BOLT (6X45)

€ 2.50

21

0831931067
ref: 21

NUT

€ 2.50

20

0151706458
ref: 20

BOLT,UNDER

€ 2.50

21

0831931067
ref: 21

NUT

€ 2.50

22

6825103D0017U
ref: 22
MODEL N

EMBLEM, SUZUKI

€ 0.00

all assemblies
