Buy Suzuki TS Parts Online


STAND - FOOTREST (MODEL R)

TS125R 1993 (P) (E02 E04 E18 E21)

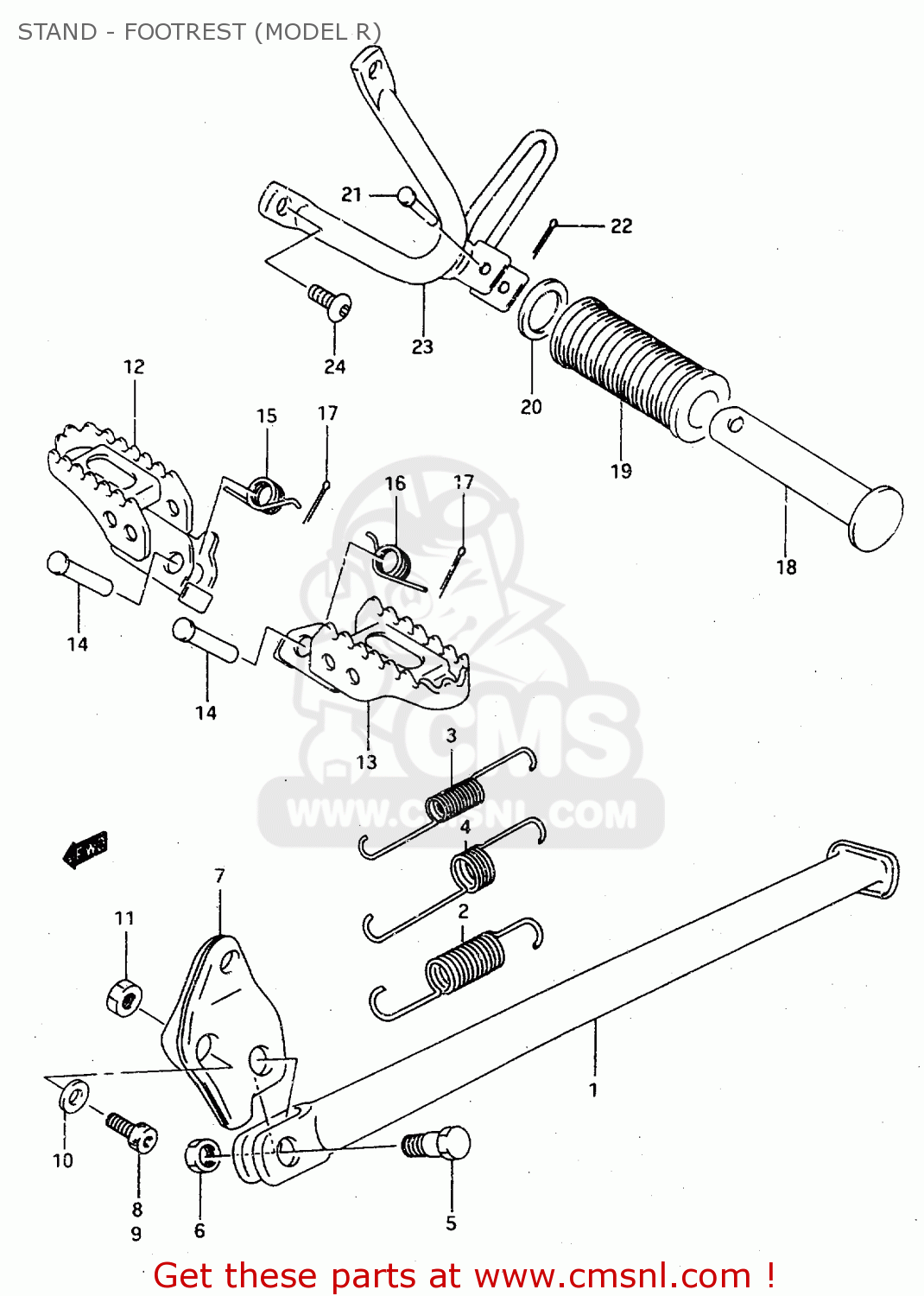

Stand - footrest (model r) diagram TS125R 1993 (P) (E02 E04 E18 E21)

STAND - FOOTREST (MODEL R) TS125R 1993 (P) (E02 E04 E18 E21)
STAND - FOOTREST (MODEL R) TS125R 1993 (P) (E02 E04 E18 E21)
STAND - FOOTREST (MODEL R) TS125R 1993 (P) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1
4231003D03019
ref: 1
STAND, PROP (BLACK)
€ 80.00
2
0944318015
ref: 2
SPRING
0944318015
€ 5.50
3
0944314062
ref: 3
SPRING
0944314062
€ 6.50
4
0944321005
ref: 4
SPRING
0944321005
€ 18.00
5
0911110019
ref: 5
BOLT L:30
0911110019
€ 4.50
6
0915910097
ref: 6
NUT
0915910097
€ 5.00
7-1
4233003D12019
ref: 7-1
BRACKET, PROP STAND (BLACK)
€ 37.50
7-2
4233003D02019
ref: 7-2
E4,E21
BRACKET, PROP STAND (BLACK)B
€ 50.50
8
0910608097
ref: 8
BOLT(8X25)
0910608097
€ 2.50
9
0910608106
ref: 9
BOLT(8X20)
0910608106
€ 3.00
10
0916408015
ref: 10
WASHER
0916408015
€ 3.00
11
0914008021
ref: 11
NUT
0914008021
€ 2.00
12
4355008D01019
ref: 12
FOOTREST,FR,R
4355008D01019
€ 31.00
13
4356008D01019
ref: 13
FOOTREST,FR,L
€ 31.00
14
0920010013
ref: 14
PIN
0920010013
€ 2.50
15
0944815004
ref: 15
SPRING
0944815004
€ 2.50
16
0944815012
ref: 16
SPRING LH
€ 3.00
17
0411125208
ref: 17
PIN 25X20
0411125208
€ 2.00
18
4361003001
ref: 18
BAR,FOOTREST RUBBER
4361003001
€ 5.50
19
4361233200
ref: 19
RUBBER,PILLION FOOTREST
4361233200
€ 4.50
20
0916019006
ref: 20
WASHER (19.5X32X2)
0916019006
€ 2.00
21
0920006010
ref: 21
PIN
0920006010
€ 2.50
22
0411120208
ref: 22
PIN 20X20
0411120208
€ 1.50
23-1
4365003D00019
ref: 23-1
BRACKET,PILLION FOOT,R(BLACK)
€ 32.50
23-2
4375003D00019
ref: 23-2
BRACKET,PILLION FOOT,L(BLACK)
4375003D00019
€ 21.50
24
0155008203
ref: 24
BOLT
0155008203
€ 3.00
15
0944815007
ref: 15
SPRING
€ 2.50
16
0944815012
ref: 16
SPRING LH
€ 3.00
17
0411125208
ref: 17
PIN 25X20
0411125208
€ 2.00
18
4361003001
ref: 18
BAR,FOOTREST RUBBER
4361003001
€ 5.50
19
4361233200
ref: 19
RUBBER,PILLION FOOTREST
4361233200
€ 4.50
20
0916019006
ref: 20
WASHER (19.5X32X2)
0916019006
€ 2.00
21
0920006010
ref: 21
PIN
0920006010
€ 2.50
22
0411120208
ref: 22
PIN 20X20
0411120208
€ 1.50
23-1
4365003D00ONF
ref: 23-1
MODEL L FOR 25Y
BRACKET, PILLION RH (BLUE)
€ 0.00
23-2
4365003D0028W
ref: 23-2
MODEL L FOR 14C,OSX
BRACKET, PILLION RH (WHITE)
€ 32.50
23-3
4365003D00019
ref: 23-3
MODEL M/N/P
BRACKET,PILLION FOOT,R(BLACK)
€ 32.50
23-4
4375003D00ONF
ref: 23-4
MODEL L FOR 25Y
BRACKET, PILLION LH (BLUE)
€ 0.00
23-5
4375003D0028W
ref: 23-5
FOR 14C,OSX
BRACKET, PILLION LH (WHITE)
€ 21.50
23-6
4375003D00019
ref: 23-6
MODEL M/N/P
BRACKET,PILLION FOOT,L(BLACK)
4375003D00019
€ 21.50
24-1
0910608058
ref: 24-1
MODEL L/M/N
BOLT(8X20)
0910608058
€ 8.50
24-2
0151708207
ref: 24-2
MODEL P
BOLT
€ 3.00
