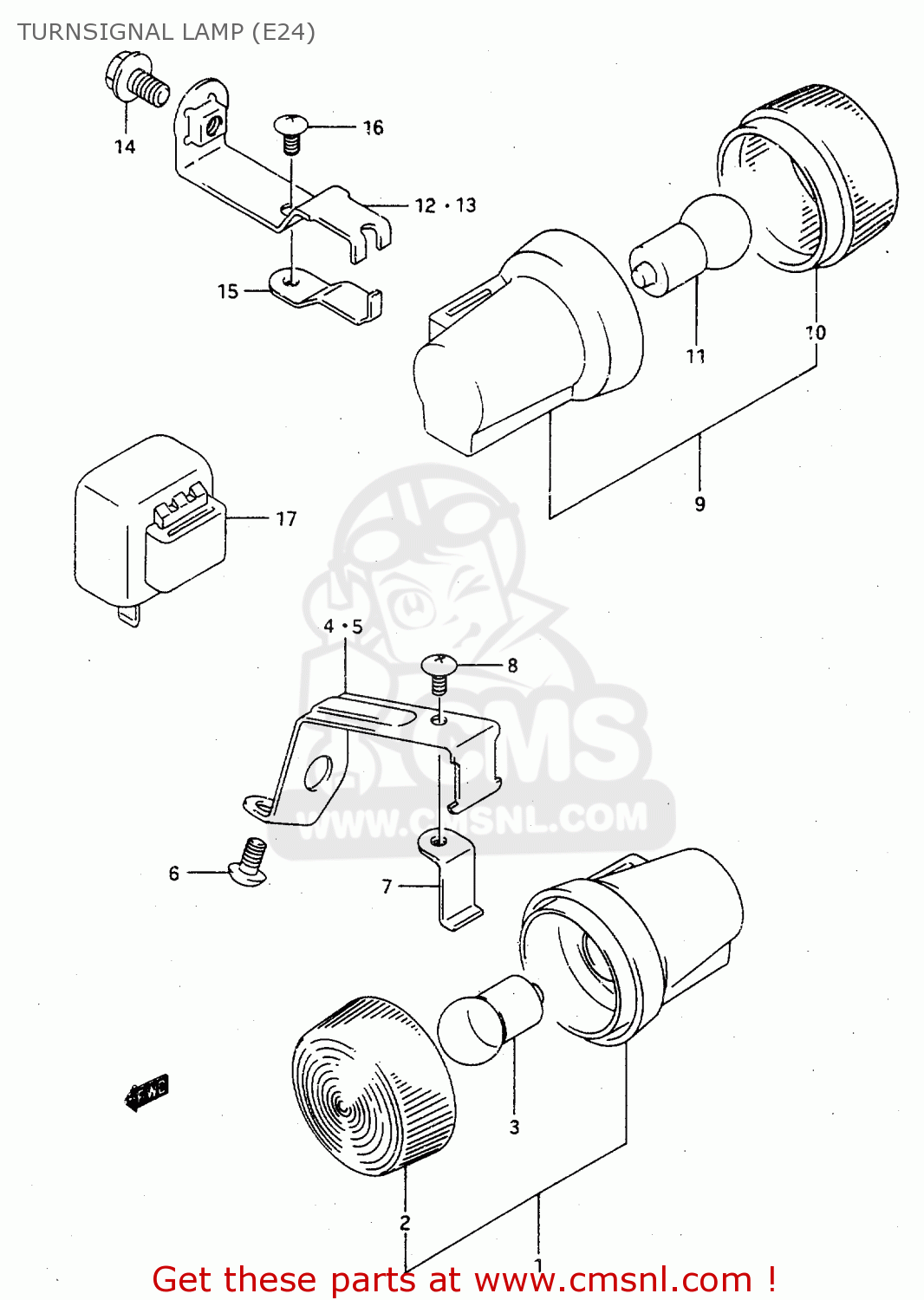

TURNSIGNAL LAMP (E24)

ref

part #

description

quantity

1-1

3560103D00
ref: 1-1

LAMP ASSY, FRONT TURNSIGNAL, RH

€ 24.50

1-2

3560203D00
ref: 1-2

LAMP ASSY, FRONT TURNSIGNAL, LH

€ 47.50

2

3561203D00
ref: 2

LENS

€ 4.50

3

0947112003
ref: 3

BULB 12V 10W

€ 7.00

4

3567103D00
ref: 4

BRACKET, FRONT TURNSIGNAL,RH

€ 0.00

5

3568103D00
ref: 5

BRACKET, FRONT TURNSIGNAL,LH

€ 0.00

6

0214205084
ref: 6

SCREW

€ 2.00

7

3567203D00
ref: 7

PLATE,FR TURNSIGNAL BRACKET

€ 0.00

8

0214204065
ref: 8

SCREW

€ 1.50

9-1

3560303D00
ref: 9-1

LAMP ASSY, REAR TURNSIGNAL,RH

€ 35.00

9-2

3560403D00
ref: 9-2

LAMP ASSY, REAR TURNSIGNAL,LH

€ 50.00

10

3561203D00
ref: 10

LENS

€ 4.50

11

0947112003
ref: 11

BULB 12V 10W

€ 7.00

12

3562103D00
ref: 12

BRACKET,RR TURNSIGNAL LAMP,R

€ 0.00

13

3564103D00
ref: 13

BRACKET,RR TURNSIGNAL LAMP,L

€ 13.00

14

0151706108
ref: 14

BOLT

€ 2.50

15

3564403D01
ref: 15

PLATE,RR TURN SIGNAL

€ 0.00

16

0214204065
ref: 16

SCREW

€ 1.50

17

3861006410
ref: 17

RELAY, TURNSIGNAL

€ 46.00

all assemblies
