WATER PUMP
TS125R 1993 (P) (E02 E04 E18 E21)

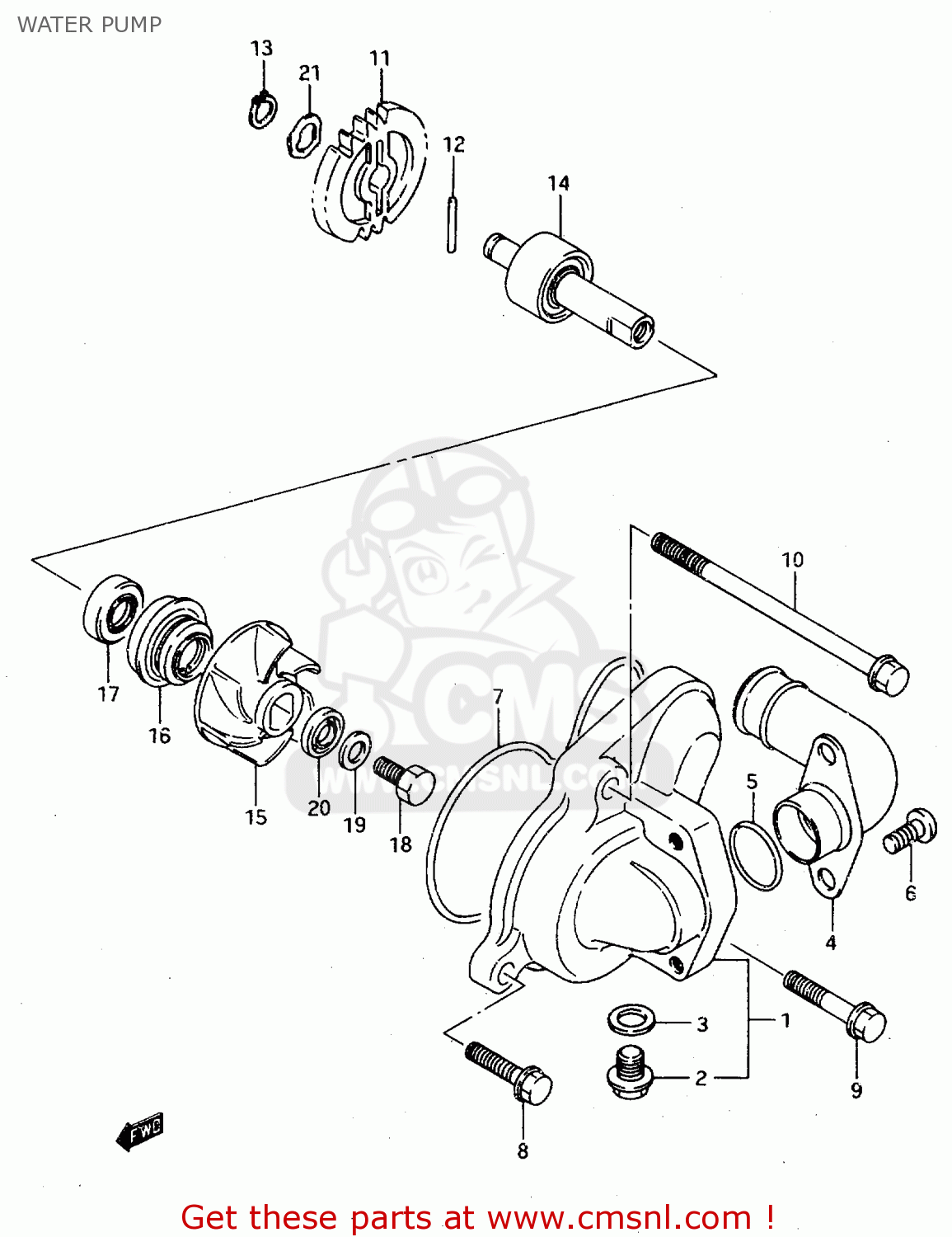

Water pump diagram TS125R 1993 (P) (E02 E04 E18 E21)
WATER PUMP TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
1741003D00
ref: 1
CASE,WATER PUMP
€ 75.00
2
1741520920
ref: 2
BOLT,DRAIN
€ 5.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4
1742103D00
ref: 4
CONNECTOR,WATER INLET
€ 22.00
5
0928019001
ref: 5
O RING(D:1.9,ID:18.8)
€ 1.50
6-1
0910606055
ref: 6-1
MODEL K/L/M/N/P
BOLT
€ 2.50
6-2
0713006123
ref: 6-2
MODEL R
BOLT,STRANGER
€ 2.50
7
1743503D00
ref: 7
O RING,WATER PUMP CASE
€ 7.50
8
0154706207
ref: 8
BOLT
€ 2.50
9
0154706257
ref: 9
BOLT
€ 2.50
10
0154706807
ref: 10
BOLT
€ 3.50
11
1746103D00
ref: 11
GEAR,WATER PUMP DRIVEN
€ 27.50
12
0926102001
ref: 12
PIN(2.5X19.8)
€ 1.50
13
0833131106
ref: 13
CIRCLIP,10MM
€ 2.00
14
1751003D00
ref: 14
SHAFT,WATER PUMP
€ 88.00
15
1749104700
ref: 15
IMPELLER,WATER PUMP
€ 13.50
16
1747046A00
ref: 16
SEAL,MECHANICAL
€ 21.50
17
0928310005
ref: 17
SEAL,OIL(10X20X5)
€ 4.50
18
0910006099
ref: 18
BOLT(6X13)
€ 2.00
19
0916406006
ref: 19
WASHER
€ 2.50
20
0916806025
ref: 20
GASKET(6X15X2.2) (NAS)
€ 3.00
21
0916410009
ref: 21
WASHER
€ 2.50
