HANDLEBAR
TS125R 1993 (P) (E02 E04 E18 E21)

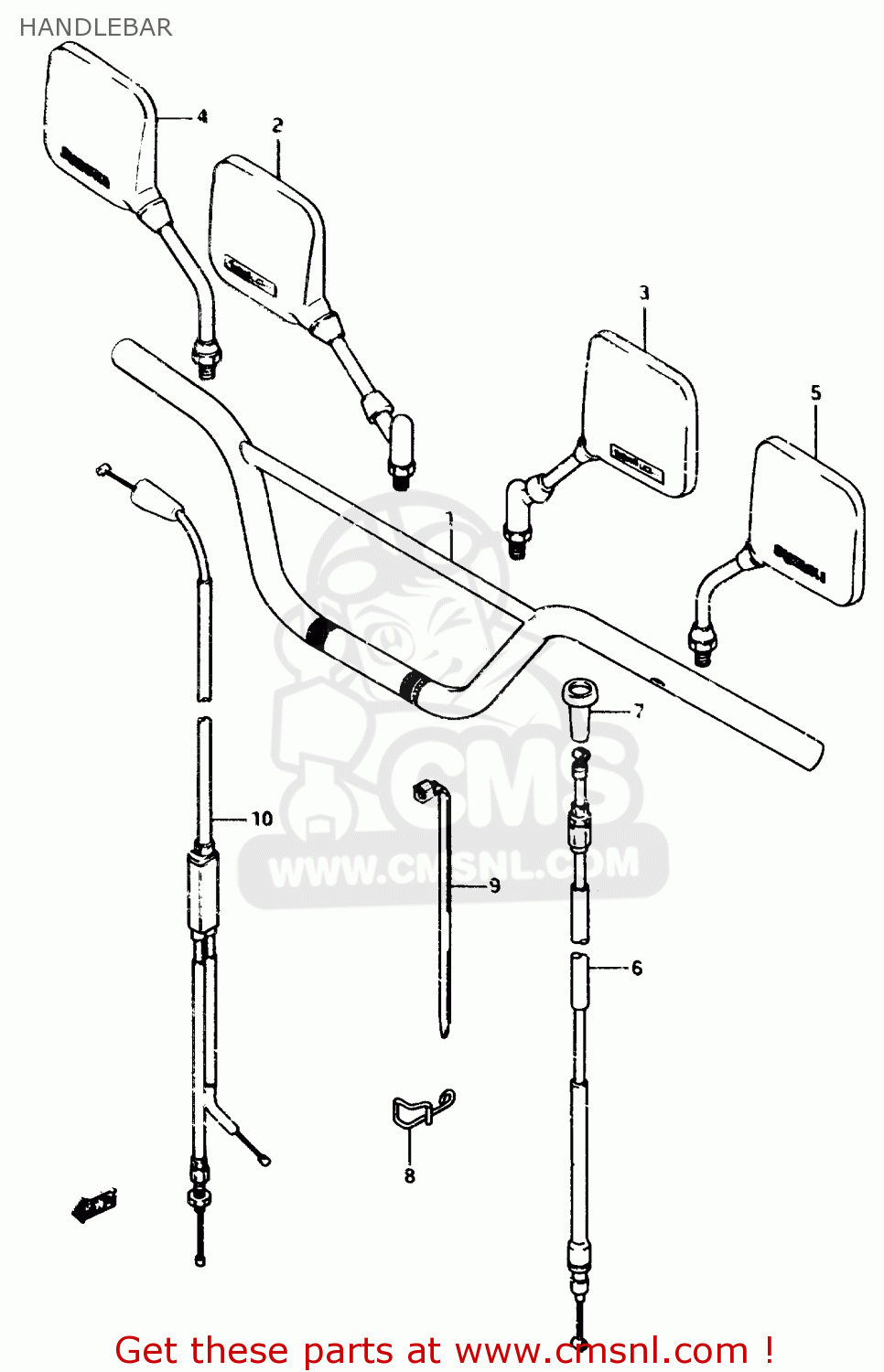

Handlebar diagram TS125R 1993 (P) (E02 E04 E18 E21)
HANDLEBAR TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611003D00291
ref: 1-1
-56110-03D01-291
HANDLEBAR (BLACK)
€ 70.50
1-2
5611003D01291
ref: 1-2
HANDLEBAR
€ 70.50
2
5650010021
ref: 2
E2,E4,E17,E21,E34,E5
MIRROR ASSY, R
€ 90.00
3
5660010021
ref: 3
E2,E4,E17,E21,E34,E5
MIRROR ASSY,L
€ 92.00
4-1
5650001A20
ref: 4-1
E18,E24
MIRROR, REAR VIEW RH
€ 222.50
4-2
5650001A50
ref: 4-2
E15
MIRROR ASSEMBLY,REAR VIEW
€ 222.50
5-1
5660001A20
ref: 5-1
E18,E24
MIRROR, REAR VIEW LH
€ 196.00
5-2
5660001A50
ref: 5-2
E15
MIRROR ASSEMBLY,LEFT
€ 196.00
6
5821003D01
ref: 6
CABLE,CLUTCH
€ 48.00
7
5827331000
ref: 7
BOOT,CLUTCH CABLE
€ 2.50
8
5829403D00
ref: 8
GUIDE,CLUTCH CABLE
€ 0.00
9
0940725401
ref: 9
MODEL K/L
CLAMP(L:235)
€ 4.00
10-1
5830003D10
ref: 10-1
CABLE ASSY, THROTTLE
€ 36.50
10-2
5830003D01
ref: 10-2
E24
CABLE ASSY,THROTTLE
€ 35.50
