REAR CALIPERS (MODEL R)
TS125R 1993 (P) (E02 E04 E18 E21)

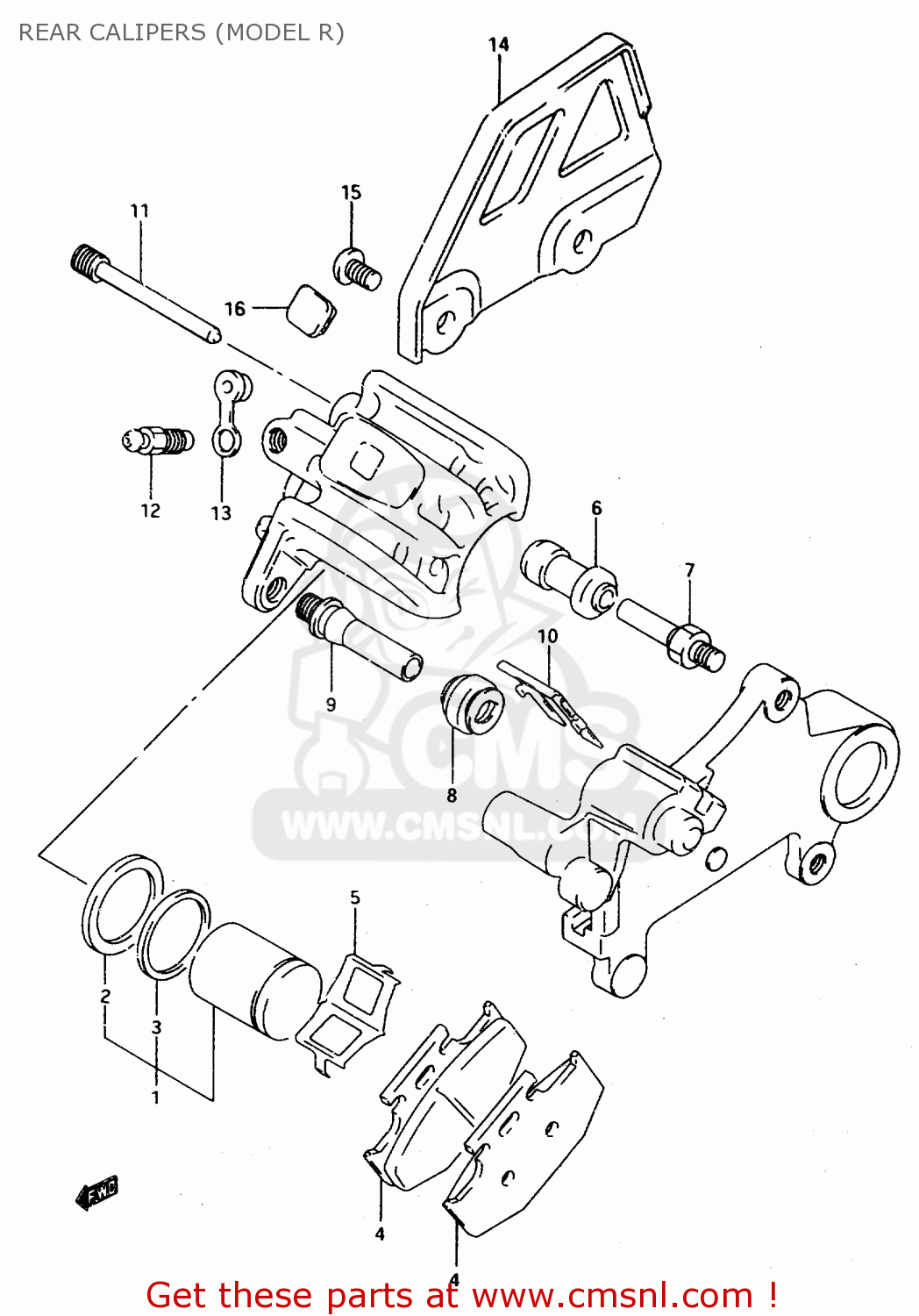

Rear calipers (model r) diagram TS125R 1993 (P) (E02 E04 E18 E21)
REAR CALIPERS (MODEL R) TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
0
6910003D40
ref: 0
CALIPER ASSY,RR
€ 356.00
1
6910003810
ref: 1
PISTON SET
€ 56.50
2
5910717C00
ref: 2
SEAL,PISTON
€ 12.00
3
5910817C00
ref: 3
SEAL
€ 12.00
4
6914015D00
ref: 4
PAD (MCA)
€ 59.50
5
5931527C10
ref: 5
SPRING,PAD
€ 6.00
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938214500
ref: 7
PIN,BOLT
€ 7.50
8
5930314500
ref: 8
BOOT
€ 5.50
9
5930527C00
ref: 9
PIN
€ 13.50
10
6911343D00
ref: 10
RETAINER,BRACKET
€ 6.50
11
5934514600
ref: 11
PIN,HANGER
€ 10.50
12
5912101A00
ref: 12
BLEEDER
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
€ 4.50
14
6972514D00
ref: 14
GUARD,RR CALIPER
€ 18.50
15
0214206123
ref: 15
SCREW 6X12
€ 2.00
16
6917114D00
ref: 16
COVER,RR CALIPER BODY
€ 3.50
12
5934514600
ref: 12
PIN,HANGER
€ 10.50
13
5912101A00
ref: 13
BLEEDER
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
€ 4.50
15
6972527C20
ref: 15
GUARD,RR CALIPER
€ 22.00
16
0154706107
ref: 16
BOLT
€ 1.50
17
6917114D00
ref: 17
COVER,RR CALIPER BODY
€ 3.50
