REAR COMBINATION LAMP
TS125R 1993 (P) (E02 E04 E18 E21)

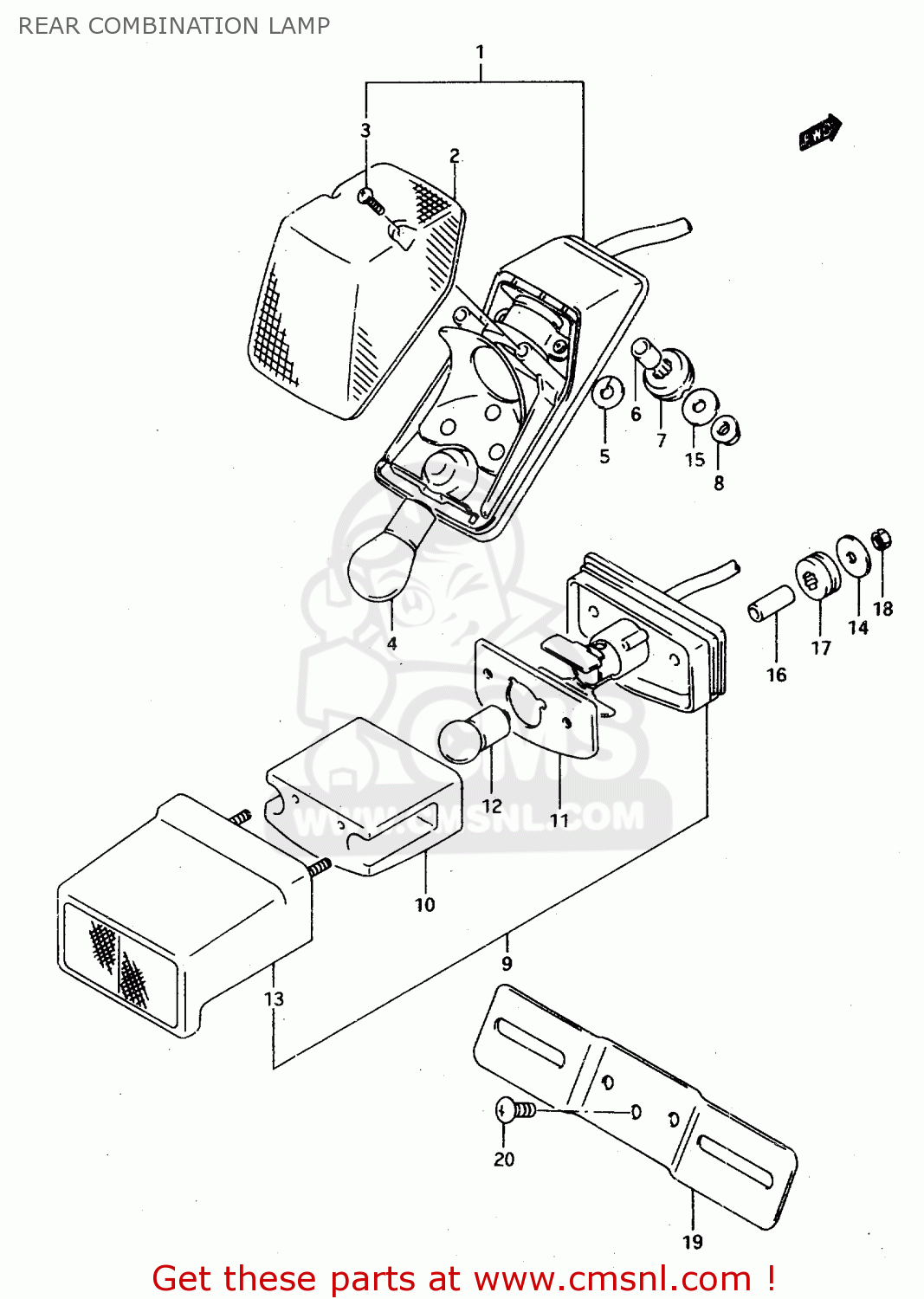

Rear combination lamp diagram TS125R 1993 (P) (E02 E04 E18 E21)
REAR COMBINATION LAMP TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
3571003D00
ref: 1
LAMP ASSY, REAR COMBINATION
€ 105.00
2
3571203D00
ref: 2
LENS
€ 18.50
3
0351104165
ref: 3
SCREW
€ 1.50
4
0947112083
ref: 4
BULB(12V21/5W)
€ 6.00
5
3592803D00
ref: 5
GASKET (NAS)
€ 3.00
6
0918006121
ref: 6
SPACER(6.4X9.2X12)
€ 2.50
7
0932009010
ref: 7
CUSHION
€ 2.50
8
0831616066
ref: 8
NUT
€ 2.50
9-1
3591003D20
ref: 9-1
LAMP ASSY,LICENSE
€ 128.00
9-2
3591003D00
ref: 9-2
E24
LAMP ASSEMBLY,LICENSE
€ 128.00
10-1
3591238A20
ref: 10-1
LENS
€ 13.00
10-2
3591238A30
ref: 10-2
E24
LENS
€ 11.50
11
3591338A30
ref: 11
GASKET,LICENSE LAMP (NAS)
€ 2.00
12-1
0947112140
ref: 12-1
BULB(12V5W,BF150-40160A)
€ 4.00
12-2
0947112139
ref: 12-2
E24
BULB
€ 4.00
13-1
3591703D20
ref: 13-1
REFLEX REFLECTOR & COVER
€ 43.50
13-2
3591703D00
ref: 13-2
E24
REFLEX REFLECTOR & COVER
€ 0.00
14
0916004018
ref: 14
WASHER(4.3X20X1.4)
€ 2.00
15-1
0916006102
ref: 15-1
MODEL K/L/M/N/P
WASHER (6.5X20X1.6)
€ 2.00
15-2
0916006088
ref: 15-2
MODEL R
WASHER(6.5X20X1.6)
€ 2.00
16
0918004015
ref: 16
SPACER (4.3X9X23.5)
€ 3.00
17
0932009009
ref: 17
CUSHION
€ 5.00
18
0914004002
ref: 18
NUT
€ 2.50
19-1
3592744110
ref: 19-1
PLATE,RR LICENSE
€ 22.50
19-2
3592736510
ref: 19-2
E24
BRACKET,PLATE LICENSE
€ 8.50
20-1
0214206164
ref: 20-1
MODEL K/L/M/N/P
SCREW
€ 2.50
20-2
0214206163
ref: 20-2
MODEL R
SCREW
€ 2.50
