WIRING HARNESS
TS125R 1993 (P) (E02 E04 E18 E21)

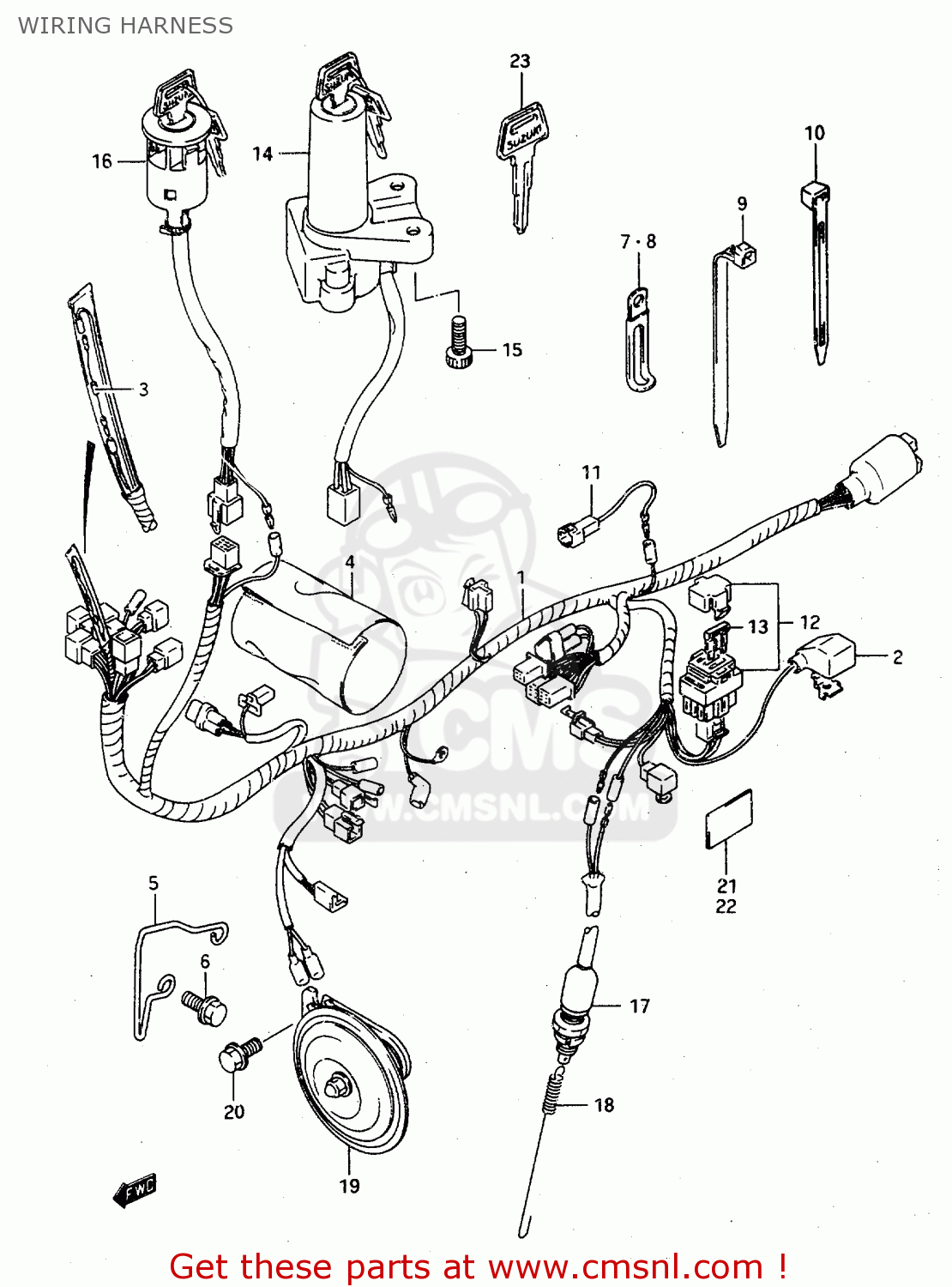

Wiring harness diagram TS125R 1993 (P) (E02 E04 E18 E21)
WIRING HARNESS TS125R 1993 (P) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661003D10
ref: 1-1
MODEL K
HARNESS, WIRING
€ 228.50
1-2
3661003D11
ref: 1-2
MODEL L/M/N/P/R
HARNESS, WIRING
€ 228.50
1-3
3661003D00
ref: 1-3
MODEL K E24
HARNESS, WIRING
€ 0.00
1-4
3661003D01
ref: 1-4
MODEL L E24
HARNESS,WIRING
€ 0.00
2
3362403D00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 6.00
3
3661102100
ref: 3
DIODE
€ 6.00
4-1
3661813601
ref: 4-1
MODEL K/L/M/N/P
COVER, HARNESS
€ 12.00
4-2
3661815D02
ref: 4-2
MODEL R
COVER,WIRING HARNESS
€ 12.00
5
3661903D00
ref: 5
GUIDE, WIRING HARNESS
€ 6.50
6-1
0151706164
ref: 6-1
MODEL K/L/M/N/P
BOLT
€ 2.50
6-2
0155006163
ref: 6-2
MODEL R
BOLT
€ 2.50
7-1
0940406404
ref: 7-1
CLAMP
€ 3.00
7-2
0940406415
ref: 7-2
CLAMP
€ 3.00
7-3
0940406420
ref: 7-3
E24
CLAMP
€ 2.50
8
0940408405
ref: 8
CLAMP
€ 3.50
9-1
0940714403
ref: 9-1
CLAMP(L:125)
€ 2.50
9-2
0940718402
ref: 9-2
CLAMP(L:165)
€ 2.50
9-3
0940725401
ref: 9-3
CLAMP(L:235)
€ 4.00
10-1
0940710403
ref: 10-1
CLAMP(L:95)
€ 2.50
10-2
0940705403
ref: 10-2
CLAMP,L:88
€ 1.50
11
3685103D00
ref: 11
WIRE, CDI LEAD
€ 0.00
12
3674004701
ref: 12
BOX ASSY,FUSE
€ 16.00
13
0948115101
ref: 13
FUSE(15A)
€ 1.50
14
3710003D01
ref: 14
E24
LOCK ASSY, STEERING
€ 106.00
15
0711006167
ref: 15
BOLT
€ 3.00
16
3711003D00
ref: 16
SWITCH ASSEMBLY,IGNITION
€ 58.50
17
3774004A10
ref: 17
SWITCH ASSY,STOP LAMP
€ 22.00
18
0944306019
ref: 18
SPRING
€ 3.50
19-1
3850003D10
ref: 19-1
HORN ASSY
€ 56.50
19-2
3850003D00
ref: 19-2
E24
HORN ASSY
€ 0.00
20-1
0151706125
ref: 20-1
MODEL K/L/M/N/P
BOLT 6X12
€ 2.50
20-2
0155006123
ref: 20-2
MODEL R
BOLT
€ 2.50
21
3692008D00
ref: 21
PROTECTOR(30X60X3)
€ 2.00
22
3692008D10
ref: 22
PROTECTOR(30X30X3)
€ 2.00
23-1
3714624500
ref: 23-1
OPT
KEY,BLANK
€ 6.00
23-2
3714624510
ref: 23-2
OPT
KEY,BLANK
€ 6.00
