AIR CLEANER

TS50ERPD 1981 (T) FRANCE (E04)

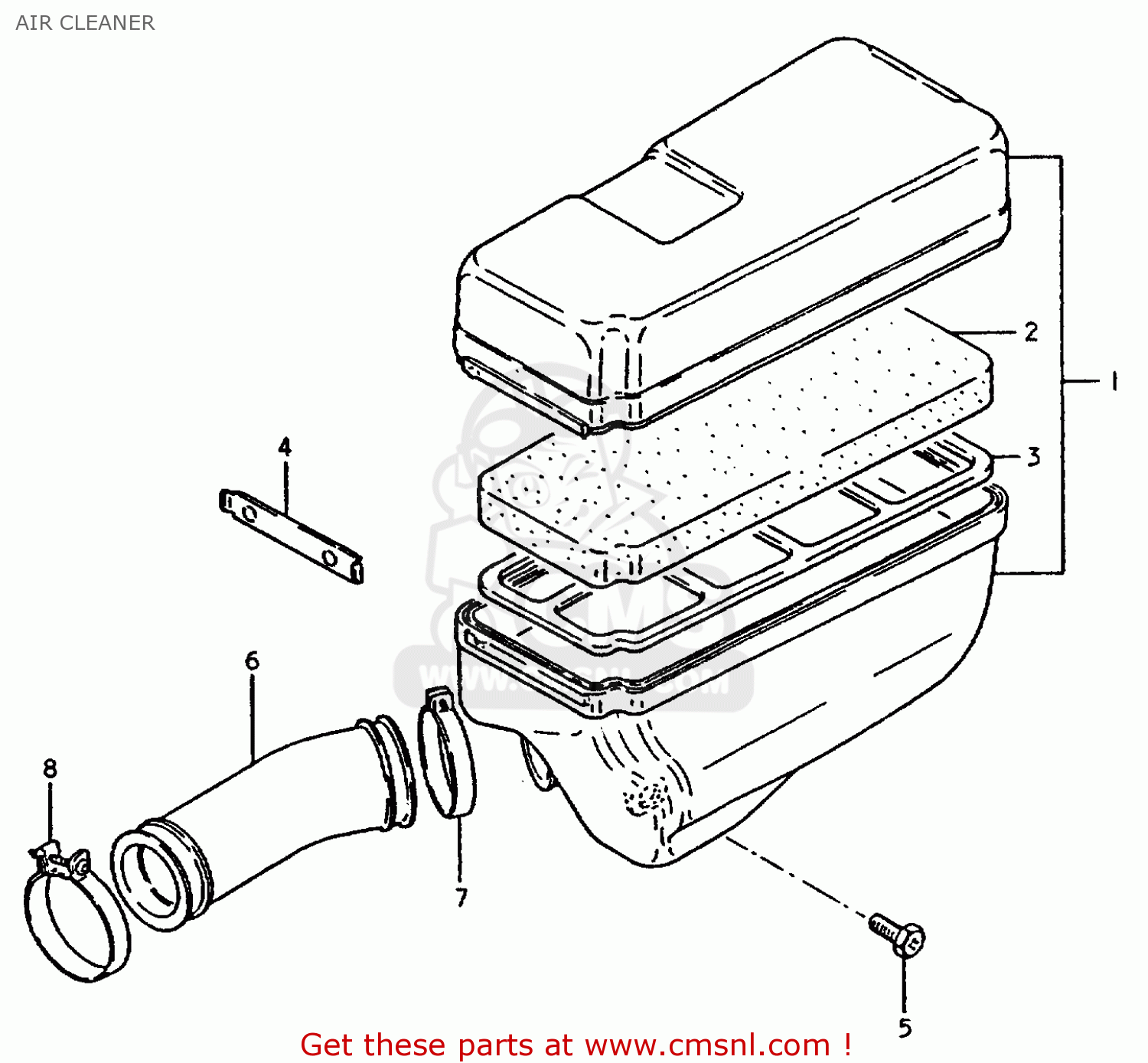

Air cleaner diagram TS50ERPD 1981 (T) FRANCE (E04)

AIR CLEANER TS50ERPD 1981 (T) FRANCE (E04)

AIR CLEANER TS50ERPD 1981 (T) FRANCE (E04)

prices are in EUR

ref

part #

description

quantity

1

1370046100
ref: 1

CLEANER ASSY,A

€ 42.00

2

1378126400
ref: 2

FILTER

€ 8.00

3

1384126400
ref: 3

HOLDER

€ 8.50

4

1382100011
ref: 4
FROM 13821-00010

SLIDER

€ 3.50

5

0214206167
ref: 5

SCREW

€ 2.00

6

1388246100
ref: 6

TUBE,AIR CLEANER OUTLET

€ 14.50

7

0940240305
ref: 7

CLAMP

€ 4.00

8

0940234306
ref: 8

CLAMP

€ 9.00
