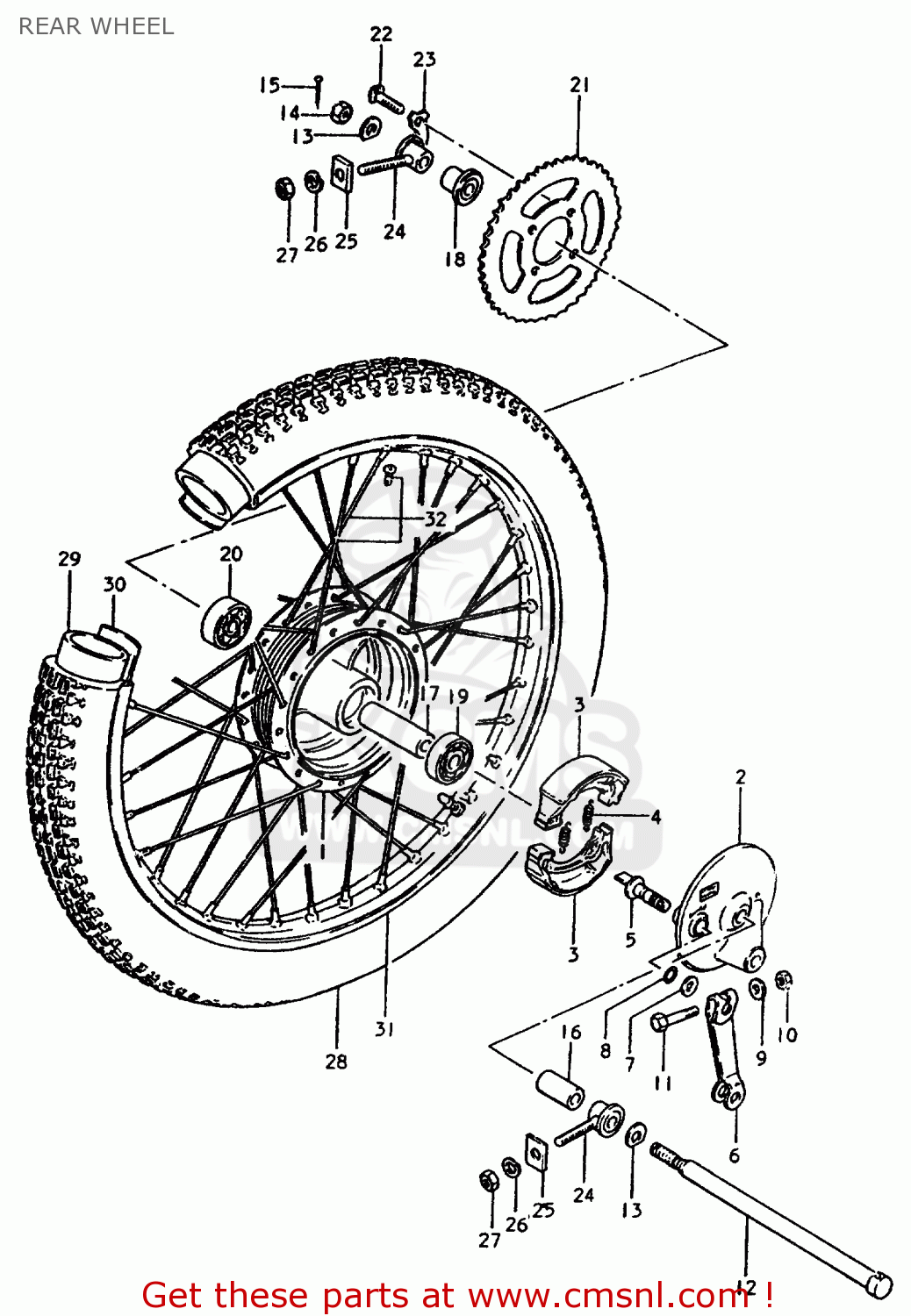

REAR WHEEL

ref

part #

description

quantity

1

6411046201
ref: 1

DRUM, REAR HUB

€ 66.50

2

6421046022
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 66.00

3

5441043020
ref: 3

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445148000
ref: 6

LEVER,RR BRAKE CAM

€ 32.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

6471126500
ref: 12

AXLE,RR

€ 27.50

13

6471226500
ref: 13

WASHER,RR AXLE

€ 8.50

14

0831431128
ref: 14

NUT 12MM

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0918012085
ref: 16

SPACER, AXLE RH

€ 5.00

17

0918012078
ref: 17

SPACER(12.6X19X91)

€ 7.00

18

6475046700
ref: 18

SPACER, REAR AXLE LH

€ 6.50

19

0814363017
ref: 19

BEARING

€ 14.50

20

0812363017
ref: 20

BEARING

€ 13.50

21-1

6451146240
ref: 21-1

SPROCKET, REAR (NT:47)

€ 52.00

21-2

6451146260
ref: 21-2
TS50ERPDT

SPROCKET, REAR (NT:49)

€ 0.00

21-3

6451146270
ref: 21-3
TS50ERPT E25

SPROCKET, REAR (NT:50)

€ 29.50

22

0910008140
ref: 22

BOLT(8X25)

€ 2.00

23

0916908011
ref: 23

WASHER

€ 2.50

24

6141026500
ref: 24
TO 61410-26501

ADJUSTER, CHAIN

€ 9.00

25

6142126501
ref: 25

ADJUSTER,CHAIN

€ 4.00

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0831012088
ref: 27

NUT

€ 2.00

28-1

6510046770
ref: 28-1
IRC

TIRE (3.00-17)

€ 0.00

28-2

6510025600
ref: 28-2
IRC TS50ERPDT TS5

TIRE

€ 180.50

29-1

6520009210
ref: 29-1

TUBE,INNER (IRC)

€ 0.00

29-2

5520011601
ref: 29-2
TS50ERPDT TS50ERPT

TUBE,INNER

€ 24.50

30-1

5526101010
ref: 30-1

PROTECTOR,WHEEL,INNER

€ 3.50

30-2

5526111010
ref: 30-2
TS50ERPDT TS50ERP

PROTECTOR,INNER TUBE

€ 3.50

31-1

6531146730
ref: 31-1

RIM,RR WHEEL(17X1.60)

€ 78.00

31-2

6531126500
ref: 31-2
TS50ERPDT TS50ERP

RIM, WHEEL

€ 98.50

32-1

6532046730
ref: 32-1

SPOKE SET,RR

€ 46.00

32-2

6532012120
ref: 32-2
TS50ERPDT TS50ERPT

SPOKE SET,REAR WHEEL

€ 26.00

all assemblies
