BATTERY
TS50ERPD 1981 (T) FRANCE (E04)

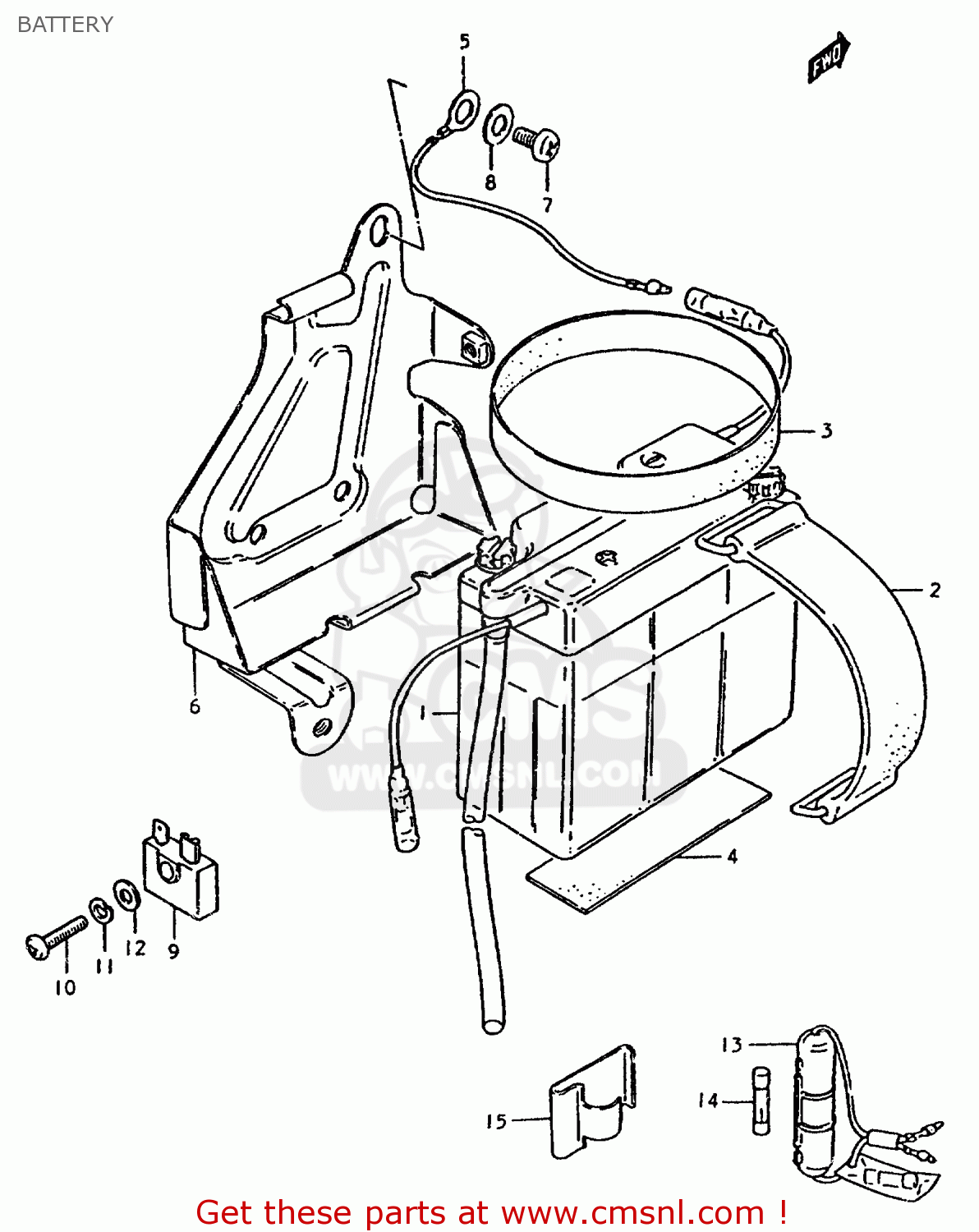

Battery diagram TS50ERPD 1981 (T) FRANCE (E04)
BATTERY TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1
3361003610
ref: 1
BATTERY(6N4B-2A,6V4.2AH)
€ 49.50
2
0946200067
ref: 2
BAND
€ 4.50
3
3365130000
ref: 3
PROTECTOR,BATTERY
€ 9.00
4
3365234000
ref: 4
PROTECTOR(30X80X2)
€ 4.50
5
3686227690
ref: 5
LEAD WIRE
€ 9.00
6
4154026400
ref: 6
HOLDER, BATTERY
€ 13.50
7
0211206128
ref: 7
SCREW 6X12
€ 2.00
8
0832221068
ref: 8
WASHER
€ 2.00
9
3280019063
ref: 9
RECTIFIER ASSEMBLY
€ 10.50
10
0211205208
ref: 10
SCREW 5X20
€ 3.00
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
0832221058
ref: 12
WASHER
€ 2.50
13
3674035011
ref: 13
BOX ASSEMBLY,FUSE
€ 11.00
14
0948110001
ref: 14
FUSE(10A)
€ 2.00
15
3679146700
ref: 15
HOLDER,FUSE CASE
€ 9.00
