MUFFLER
TS50ERPD 1981 (T) FRANCE (E04)

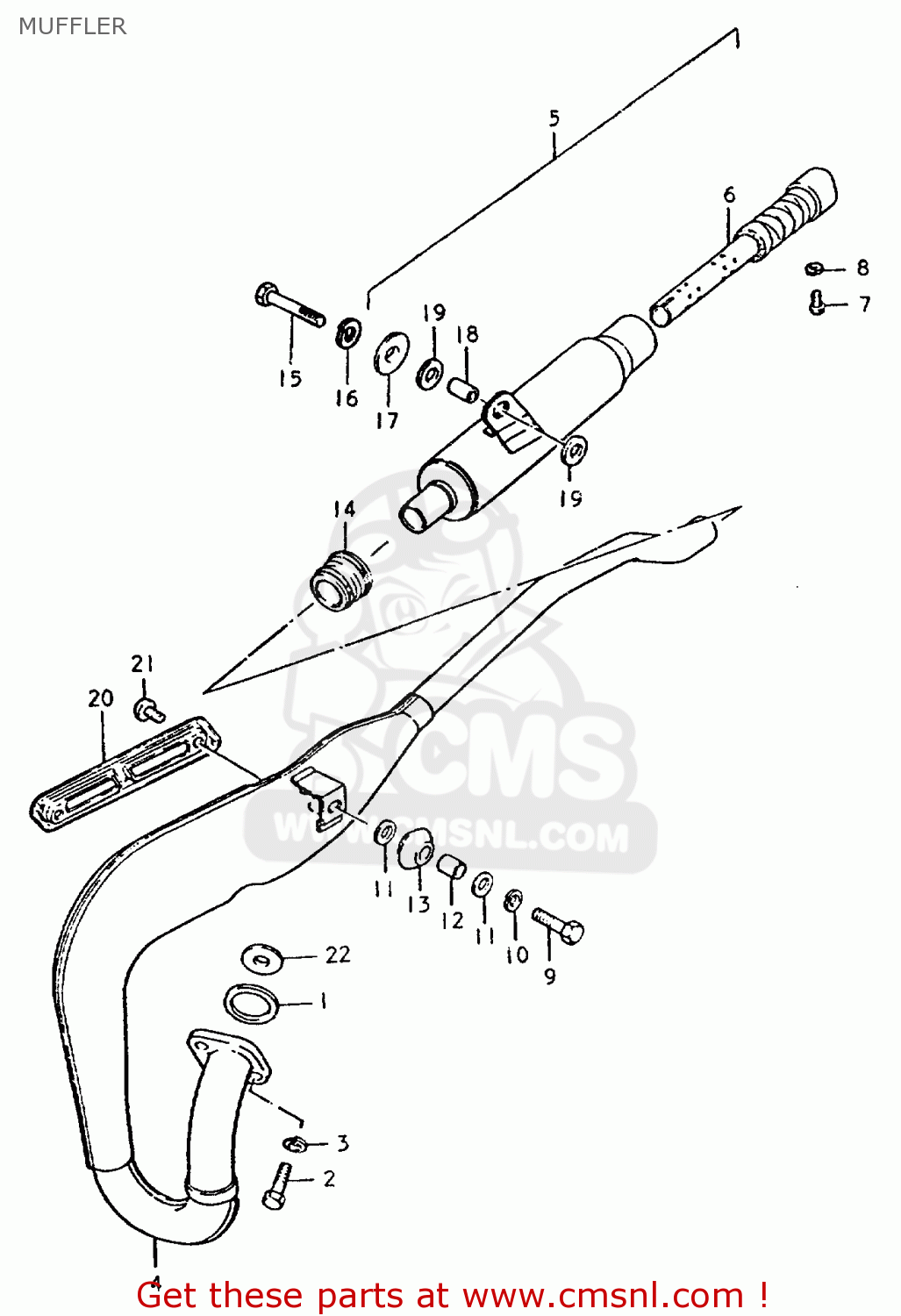

Muffler diagram TS50ERPD 1981 (T) FRANCE (E04)
MUFFLER TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1
1418105010
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 6.50
2
0110706208
ref: 2
BOLT
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
€ 2.50
4-1
1431026510
ref: 4-1
MUFFLER, 1ST
€ 318.50
4-2
1431026560
ref: 4-2
E25
MUFFLER, 1ST
€ 107.50
5-1
1430326510
ref: 5-1
MUFFLER, 2ND
€ 115.00
5-2
1430326550
ref: 5-2
E25
MUFFLER, 2ND
€ 63.00
6-1
1451046520
ref: 6-1
PIPE, BAFFLE
€ 26.00
6-2
1451046530
ref: 6-2
E5
PIPE, BAFFLE
€ 25.00
7
0912805004
ref: 7
BOLT(5X8)
€ 2.00
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0110708308
ref: 9
BOLT (8X30)
€ 2.50
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0916008005
ref: 11
WASHER
€ 2.50
12
0918008048
ref: 12
SPACER (8X12X15)
€ 3.50
13
1477230500
ref: 13
DAMPER,MUFFLER,FR
€ 3.00
14
1477148002
ref: 14
CONNECTOR,MUFFLER
€ 8.00
15
0110708258
ref: 15
BOLT
€ 2.50
16
0832121088
ref: 16
LOCK WASHER
€ 2.00
17
0916008005
ref: 17
WASHER
€ 2.50
18
0918008050
ref: 18
SPACER (8.6X13.8X9)
€ 2.50
19
0932014006
ref: 19
CUSHION
€ 3.50
20
1478026500
ref: 20
COVER,MUFFLER
€ 51.50
21
0211206088
ref: 21
SCREW
€ 2.00
22
1415926510
ref: 22
PLATE, EXHAUST PIPE
€ 0.00
