CYCLE SPROCKET
TS50ERPD 1981 (T) FRANCE (E04)

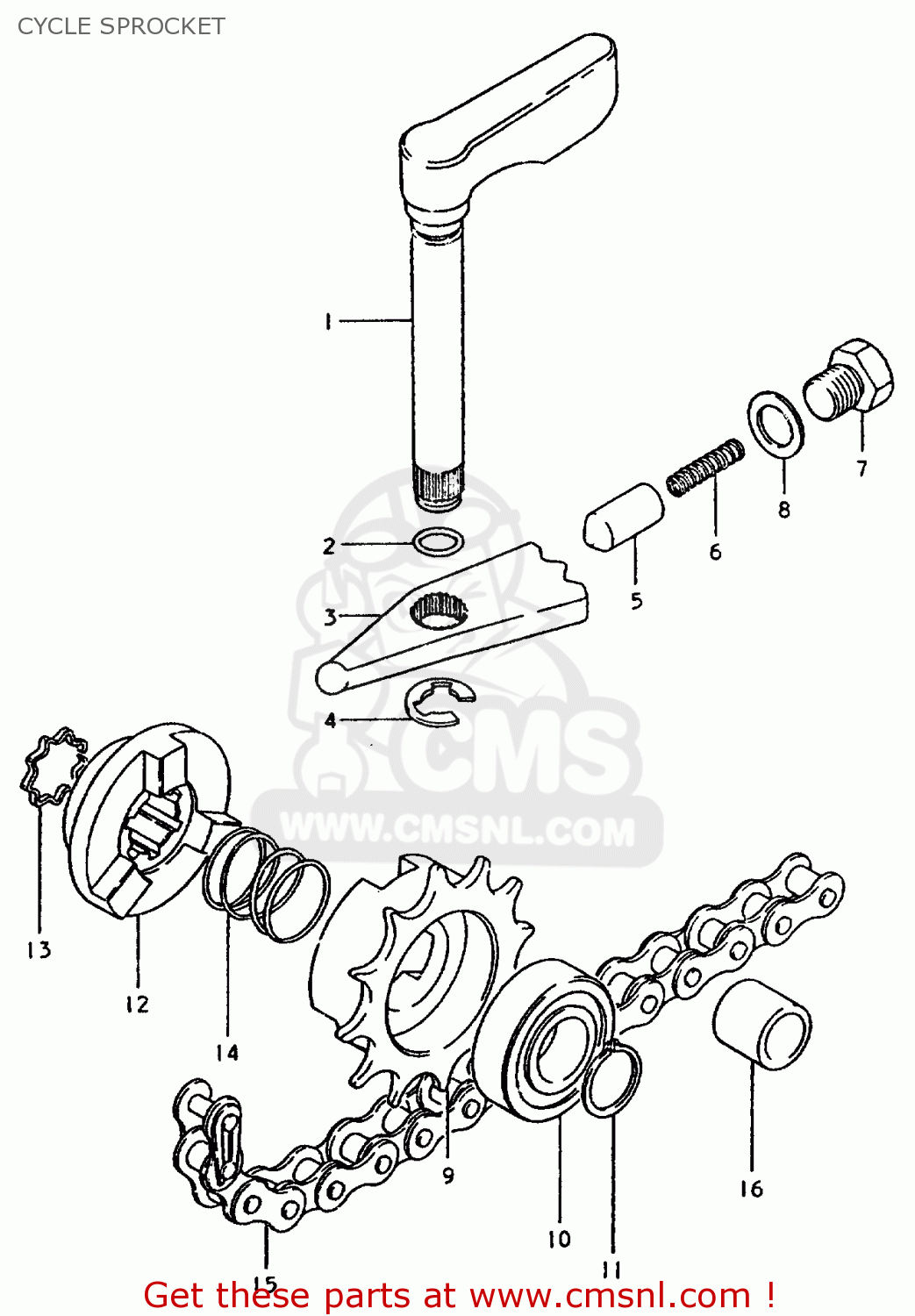

Cycle sprocket diagram TS50ERPD 1981 (T) FRANCE (E04)
CYCLE SPROCKET TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1
2582022600
ref: 1
LEVER, SPROCKET SHIFTING
€ 16.50
2
0928008003
ref: 2
O RING(D:1.3,ID:7.6)
€ 1.00
3
2581222600
ref: 3
ARM, SPROCKET SHIFTING
€ 0.00
4
0833211078
ref: 4
E RING
€ 2.00
5
2535122600
ref: 5
STOPPER
€ 7.00
6
0944004011
ref: 6
SPRING
€ 1.50
7
0910010004
ref: 7
BOLT 10X9
€ 1.00
8
0832211108
ref: 8
WASHER
€ 2.50
9
2752122600
ref: 9
SPROCKET, CYCLE (NT:12)
€ 37.00
10
0813060027
ref: 10
BEARING
€ 16.00
11
0833131159
ref: 11
CIRCLIP,15MM
€ 2.00
12
2752222600
ref: 12
WHEEL
€ 16.50
13
2751335000
ref: 13
RING,ENGINE SPROCKET
€ 5.50
14
0944019010
ref: 14
SPRING
€ 1.00
15
2770046310
ref: 15
CHAIN, CYCLE (48L)
€ 0.00
16
0934312005
ref: 16
HOSE
€ 24.50
