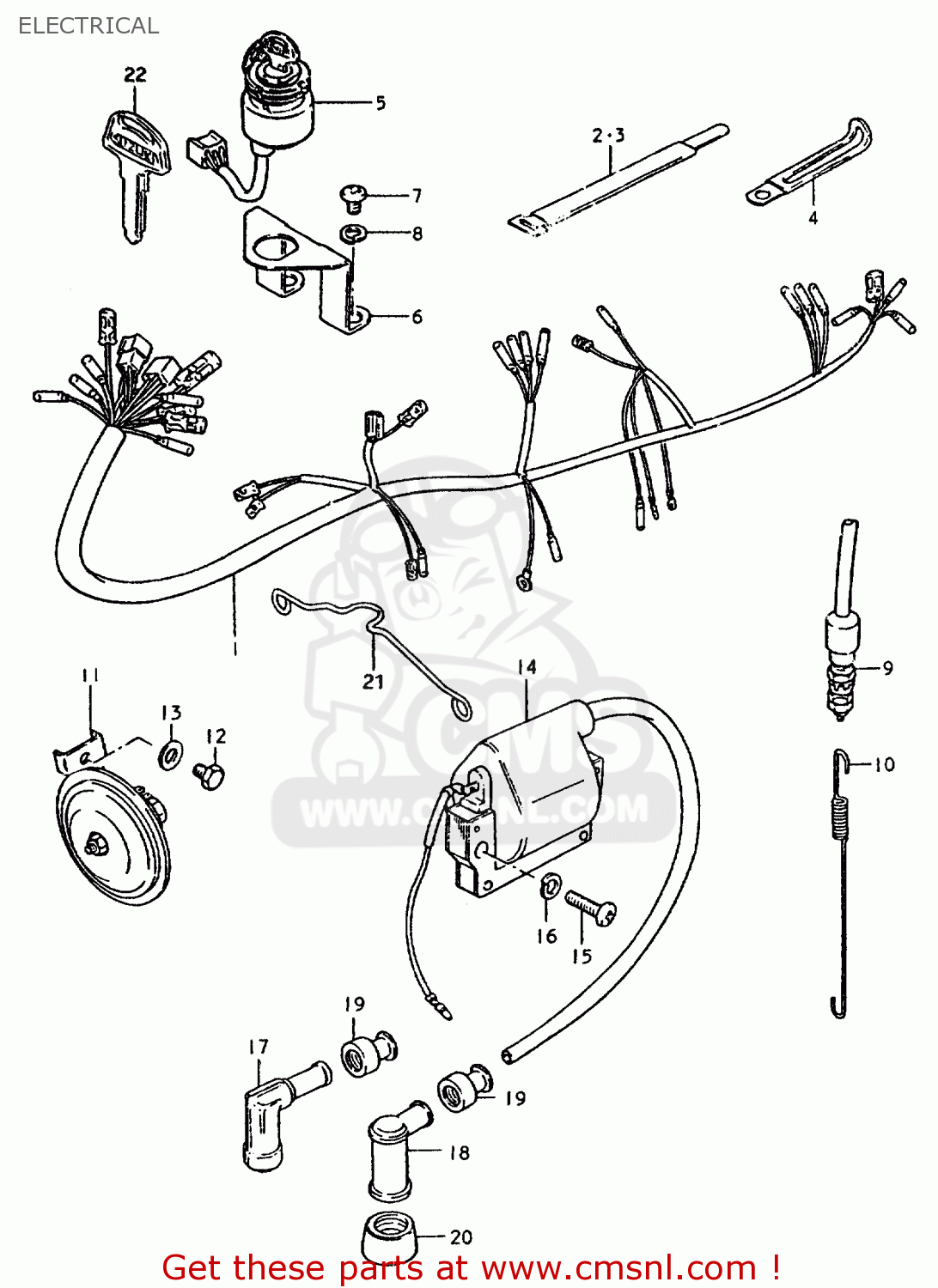

ELECTRICAL

ref

part #

description

quantity

1

3661046751
ref: 1

WIRING HARNESS

€ 62.00

2

0940718301
ref: 2

CLAMP

€ 6.00

3

0940711302
ref: 3

CLAMP

€ 6.00

4

0940406404
ref: 4

CLAMP

€ 3.00

5

3711026510
ref: 5

SWITCH ASSY, IGNITION

€ 86.00

6

3711548501
ref: 6

BRACKET,IGNITION SWITCH

€ 7.50

7

0211206108
ref: 7

SCREW

€ 1.50

8

0832121068
ref: 8

LOCK WASHER

€ 2.50

9

3774004571
ref: 9

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

10

0944306011
ref: 10

SPRING

€ 6.00

11

3850026580
ref: 11
TO 38500-26581

HORN

€ 43.50

12

0110706108
ref: 12

BOLT

€ 2.00

13

0832211068
ref: 13

WASHER 6MM

€ 2.00

14

3341043010
ref: 14

COIL ASSEMBLY,IGNITION

€ 89.50

15

0211206258
ref: 15

SCREW

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

3351039110
ref: 17

CAP,SPARK PLUG

€ 61.50

18

3351022010
ref: 18
E25

CAP ASSY,SPARK PLUG

€ 16.50

19

3354298000
ref: 19

SEAL,SPARK PLU

€ 4.50

20

3354169010
ref: 20
E25

SEAL,SPARK PLUG

€ 5.00

21

3661926501
ref: 21

CLAMP

€ 3.50

22

3714519710
ref: 22
OPT

KEY,BLANK

€ 13.00

all assemblies
