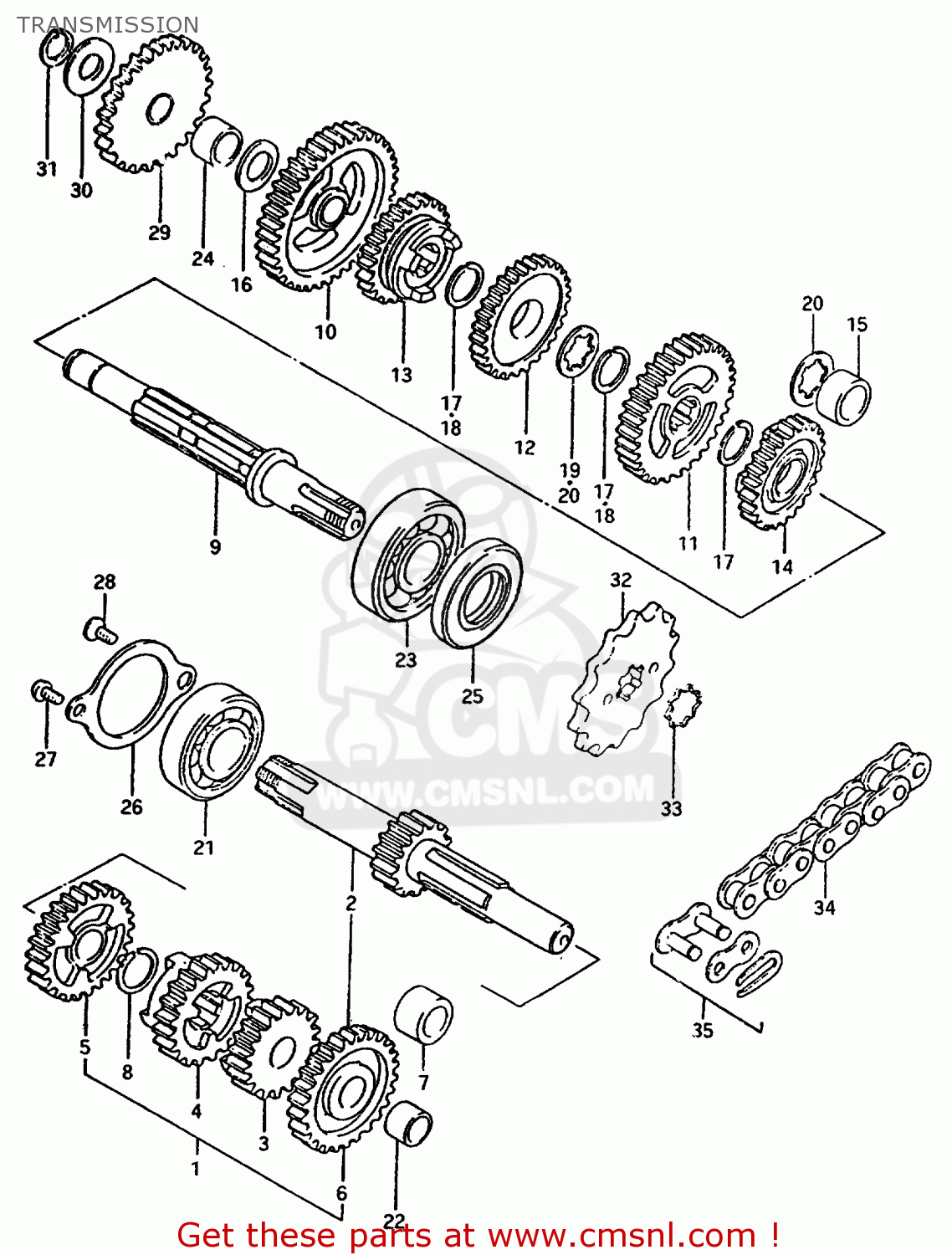

TRANSMISSION

ref

part #

description

quantity

1-1

2412046000
ref: 1-1

SHAFT,COUNTER

€ 165.00

1-2

2412046110
ref: 1-2
E25

COUNTERSHAFT ASSY

€ 0.00

2

2412146000
ref: 2

SHAFT,COUNTER(NT:12)

€ 77.00

3

2422046100
ref: 3

GEAR,SECOND DRIVE

€ 31.00

4

2423146000
ref: 4

GEAR,THIRD DRIVE

€ 38.00

5

2424146000
ref: 5

GEAR,4TH DRIVE(NT:24)

€ 31.50

6

2425146000
ref: 6

GEAR,FIFTH DRIVE

€ 32.50

7

0918013005
ref: 7
E25

SPACER

€ 15.50

8

0938017007
ref: 8

CIRCLIP

€ 2.00

9

2413046300
ref: 9

DRIVESHAFT

€ 92.50

10

2431046000
ref: 10

GEAR,FIRST DRIVEN

€ 36.50

11

2432146000
ref: 11

GEAR,2ND DRIVEN(NT:33)

€ 42.00

12

2433146000
ref: 12

GEAR,3RD DRIVEN(NT:29)

€ 38.50

13

2434146010
ref: 13

GEAR,FOURTH DRIVEN

€ 39.50

14

2435146000
ref: 14

GEAR,5TH DRIVEN(NT:24)

€ 40.00

15

0918017051
ref: 15
E25

SPACER

€ 4.50

16

0916013006
ref: 16

WASHER(13X24X1)

€ 2.50

17

0938017007
ref: 17

CIRCLIP

€ 2.00

18

0938017007
ref: 18
E25

CIRCLIP

€ 2.00

19

0916717003
ref: 19

WASHER,LOCK

€ 1.50

20

0916717003
ref: 20
E25

WASHER,LOCK

€ 1.50

21

0926217008
ref: 21

BEARING

€ 14.00

22

0930313001
ref: 22

BUSH

€ 6.50

23

0811362040
ref: 23

Bearing

€ 28.00

24

0930313001
ref: 24

BUSH

€ 6.50

25

0928320020
ref: 25

SEAL,OIL(20X40X7)

€ 7.50

26

2474146000
ref: 26

RETAINER,CNTR SHAFT BEARING

€ 3.50

27

0211206108
ref: 27

SCREW

€ 1.50

28

0212206108
ref: 28

SCREW

€ 1.50

29

2626046000
ref: 29

GEAR,KICK STARTER IDLE

€ 24.00

30

0821112261
ref: 30

WASHER

€ 2.50

31

0833131128
ref: 31

CIRCLIP

€ 2.00

32

2751104000
ref: 32

SPROCKET,ENGINE(NT:12)

€ 20.50

33

2751335000
ref: 33

RING,ENGINE SPROCKET

€ 5.50

34

2760046310
ref: 34

CHAIN, DRIVE (420*114L)

€ 31.00

35-1

2762001011
ref: 35-1

JOINT ASSEMBLY,CHAIN

€ 5.00

35-2

2762001022
ref: 35-2

JOINT ASSEMBLY,CHAIN

€ 5.50
