STAND - REAR BRAKE
TS50ERPD 1981 (T) FRANCE (E04)

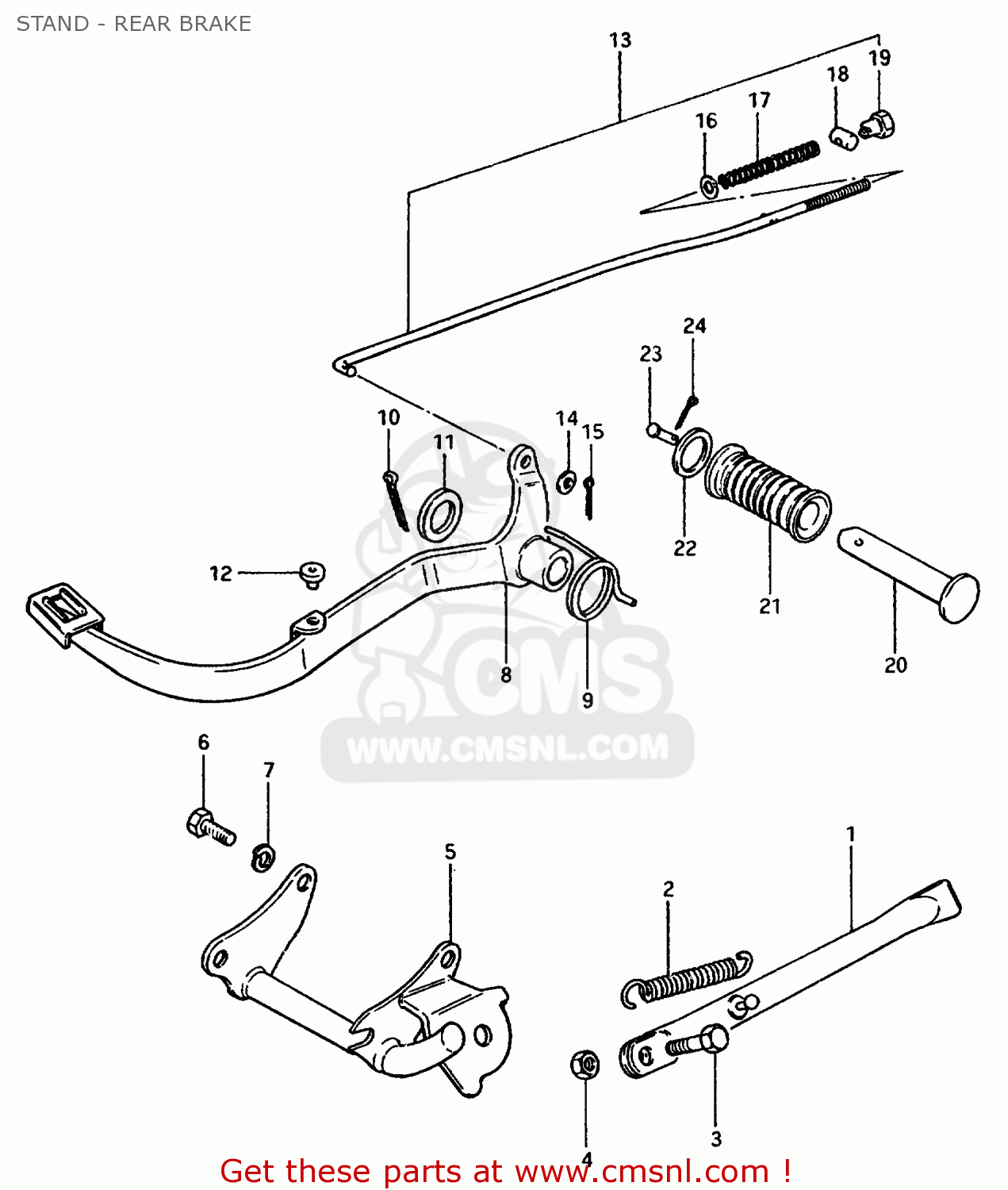

Stand - rear brake diagram TS50ERPD 1981 (T) FRANCE (E04)
STAND - REAR BRAKE TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231026500
ref: 1-1
STAND, PROP
€ 31.00
1-2
4231026521
ref: 1-2
TS50ERPDT
STAND,SIDE
€ 31.00
2
0944314017
ref: 2
SPRING
€ 6.50
3
0910010007
ref: 3
BOLT
€ 4.50
4
0831022108
ref: 4
NUT
€ 2.50
5
4351046731
ref: 5
BAR, FRONT FOOTREST
€ 20.50
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
€ 2.00
8
4311046711
ref: 8
PEDAL, BRAKE
€ 33.00
9
0944832004
ref: 9
SPRING
€ 4.50
10
0411130308
ref: 10
COTTER PIN
€ 1.50
11
0916015002
ref: 11
WASHER(15.5X26X2.3)
€ 2.00
12
4315530500
ref: 12
STOPPER,BRAKE PEDAL
€ 2.00
13
4330046700
ref: 13
ROD ASSY, REAR BRAKE
€ 9.50
14
0832221058
ref: 14
WASHER
€ 2.50
15
0411120208
ref: 15
PIN 20X20
€ 1.50
16
0832221068
ref: 16
WASHER
€ 2.00
17
0944009004
ref: 17
SPRING
€ 2.00
18
0920911002
ref: 18
PIN(11X18)
€ 2.00
19
0915006001
ref: 19
NUT
€ 3.50
20
4361003001
ref: 20
BAR,FOOTREST RUBBER
€ 5.50
21
4361203001
ref: 21
RUBBER,PILLION FOOTREST
€ 3.50
22
0916019006
ref: 22
WASHER (19.5X32X2)
€ 2.00
23
0920006010
ref: 23
PIN
€ 2.50
24
0411120208
ref: 24
PIN 20X20
€ 1.50
