FRAME

TS50ERPD 1981 (T) FRANCE (E04)

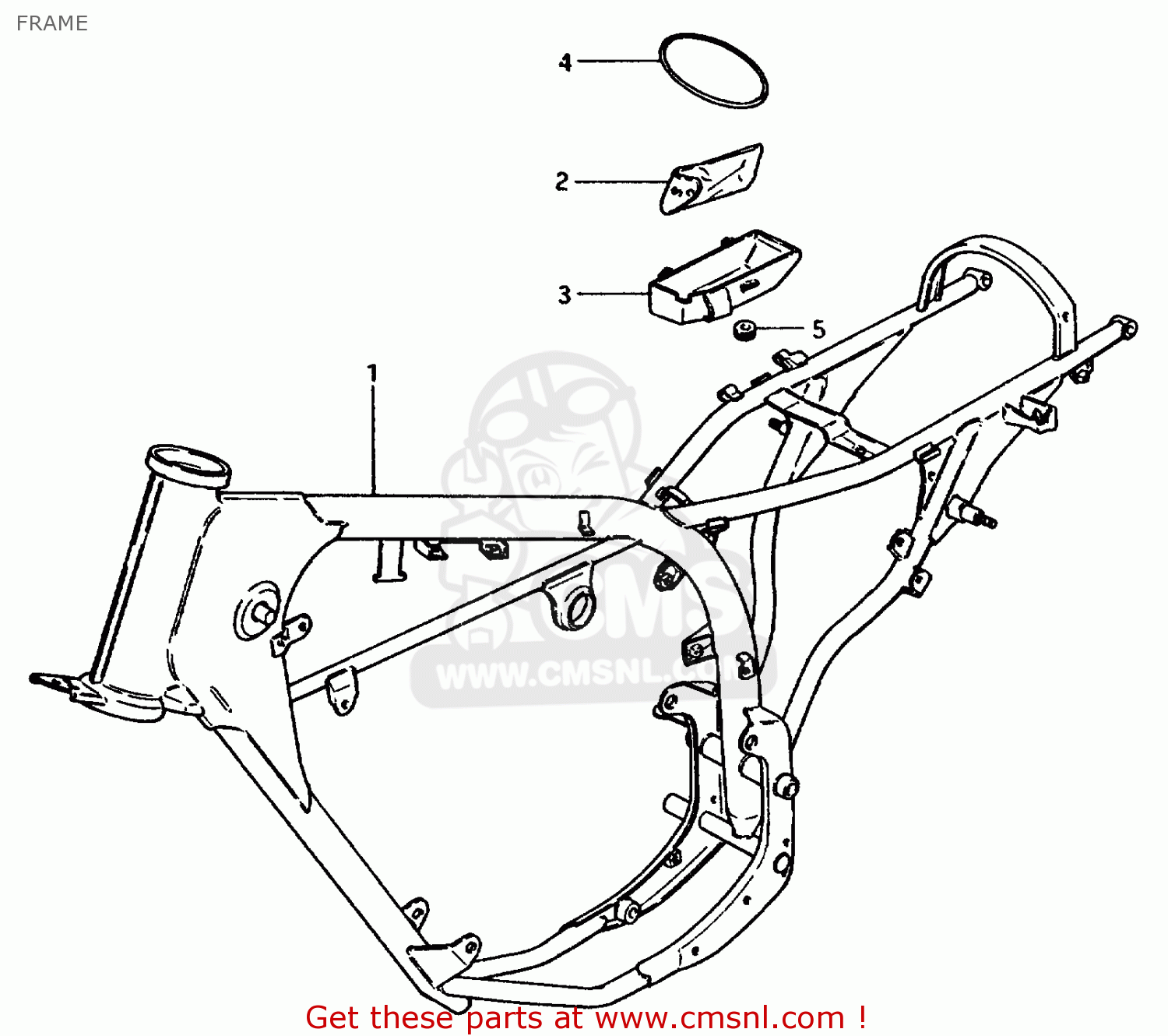

Frame diagram TS50ERPD 1981 (T) FRANCE (E04)

FRAME TS50ERPD 1981 (T) FRANCE (E04)

FRAME TS50ERPD 1981 (T) FRANCE (E04)

prices are in EUR

ref

part #

description

quantity

1-1

4110026500019
ref: 1-1

FRAME (BLACK)

€ 30.00

1-2

4110026502019
ref: 1-2
WITH 41551-26510 AN

FRAME (BLACK)

€ 30.00

1-3

4110026520019
ref: 1-3
E25

FRAME (BLACK)

€ 0.00

2

0980000108
ref: 2

TOOL SET

€ 43.50

3

4155126510
ref: 3

HOLDER, TOOL

€ 17.50

4

0928076005
ref: 4

O RING(D:3.5,ID:76)

€ 3.50

5

0932005006
ref: 5

CUSHION

€ 4.00
