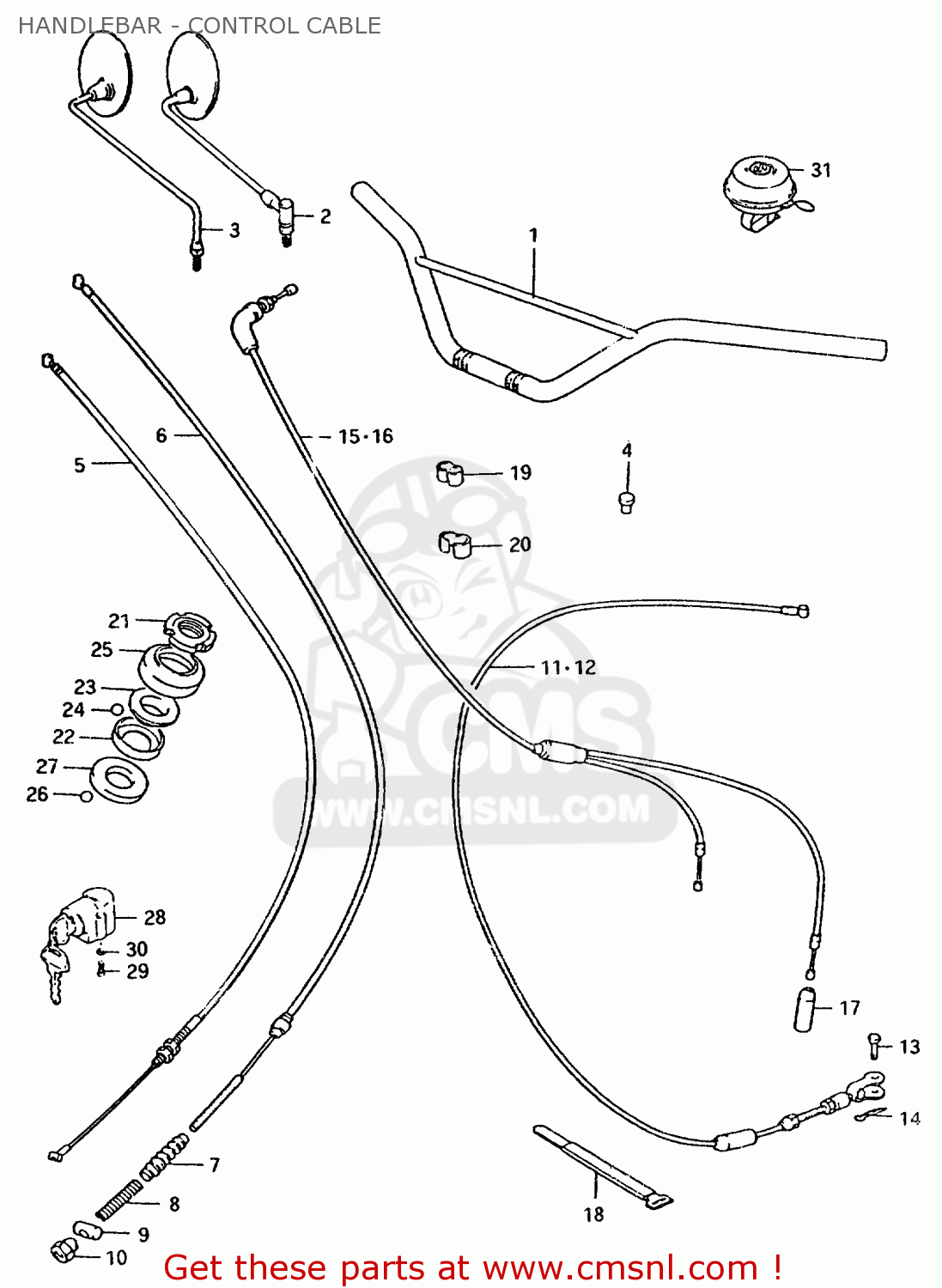

HANDLEBAR - CONTROL CABLE - TS50ERPD 1981 (T) FRANCE (E04)

ref

part #

description

quantity

1-1

5611046731291
ref: 1-1

HANDLEBAR

€ 66.00

1-2

5611046742291
ref: 1-2
TS50ERPT E25

HANDLEBAR (BLACK)

€ 20.00

2

5650022600
ref: 2

MIRROR ASSY, REAR VIEW RH

€ 35.50

3

5660022611
ref: 3
TS50ERPT E25

MIRROR, REAR VIEW LH

€ 10.00

4

0925006001
ref: 4

CAP

€ 2.00

5

5811026500
ref: 5
TS50ERPDT

CABLE ASSY, BRAKE

€ 28.50

6

5810046700
ref: 6

CABLE ASSY, BRAKE

€ 18.00

7

0928707001
ref: 7

SEAL,DUST(7X16X75)

€ 2.00

8

0944006003
ref: 8

SPRING

€ 2.00

9

0920910001
ref: 9

PIN,10X19

€ 2.00

10

0915005101
ref: 10

NUT

€ 3.00

11

5820046702
ref: 11
TS50ERPDT

CABLE ASSY,CLUTCH

€ 31.00

12

5820046201
ref: 12

CABLE ASSY,CLUTCH

€ 23.00

13

0920006004
ref: 13

PIN(L:13)

€ 1.50

14

0411120158
ref: 14

PIN

€ 1.50

15

5830046711
ref: 15
TS50ERPDT

CABLE ASSY, THROTTLE

€ 37.50

16

5830046720
ref: 16

CABLE ASSY, THROTTLE

€ 35.00

17

0928707002
ref: 17

SEAL,DUST(7X18X30)

€ 2.50

18

0940718301
ref: 18

CLAMP

€ 6.00

19

0940800005
ref: 19

CLIP

€ 2.50

20

0940800002
ref: 20

CLIP

€ 2.00

21

5163128000
ref: 21

NUT,STEERING STEM(25X44X10)

€ 12.50

22

5161120002
ref: 22

RACE,STEERING INNER UPR

€ 5.50

23

5162128000
ref: 23

RACE,STEERING OUTER UPR

€ 7.00

24

0611106003
ref: 24

BALL

€ 1.50

25

5164325001
ref: 25

DUST SEAL,STEERING UPR

€ 4.50

26

0611108003
ref: 26

BALL

€ 1.50

27

5161133002
ref: 27

LACE,STEERING INNER LWR

€ 7.00

28

5191025310
ref: 28

LOCK ASSEMBLY,STEERING

€ 22.50

29

0211205128
ref: 29

SCREW

€ 2.50

30

0832121058
ref: 30

LOCK WASHER

€ 2.00

31

9980039301
ref: 31
TS50ERPT E25

BELL ASSY

€ 13.00

HANDLEBAR - CONTROL CABLE

all assemblies
