PILOT BOX

TS50ERPD 1981 (T) FRANCE (E04)

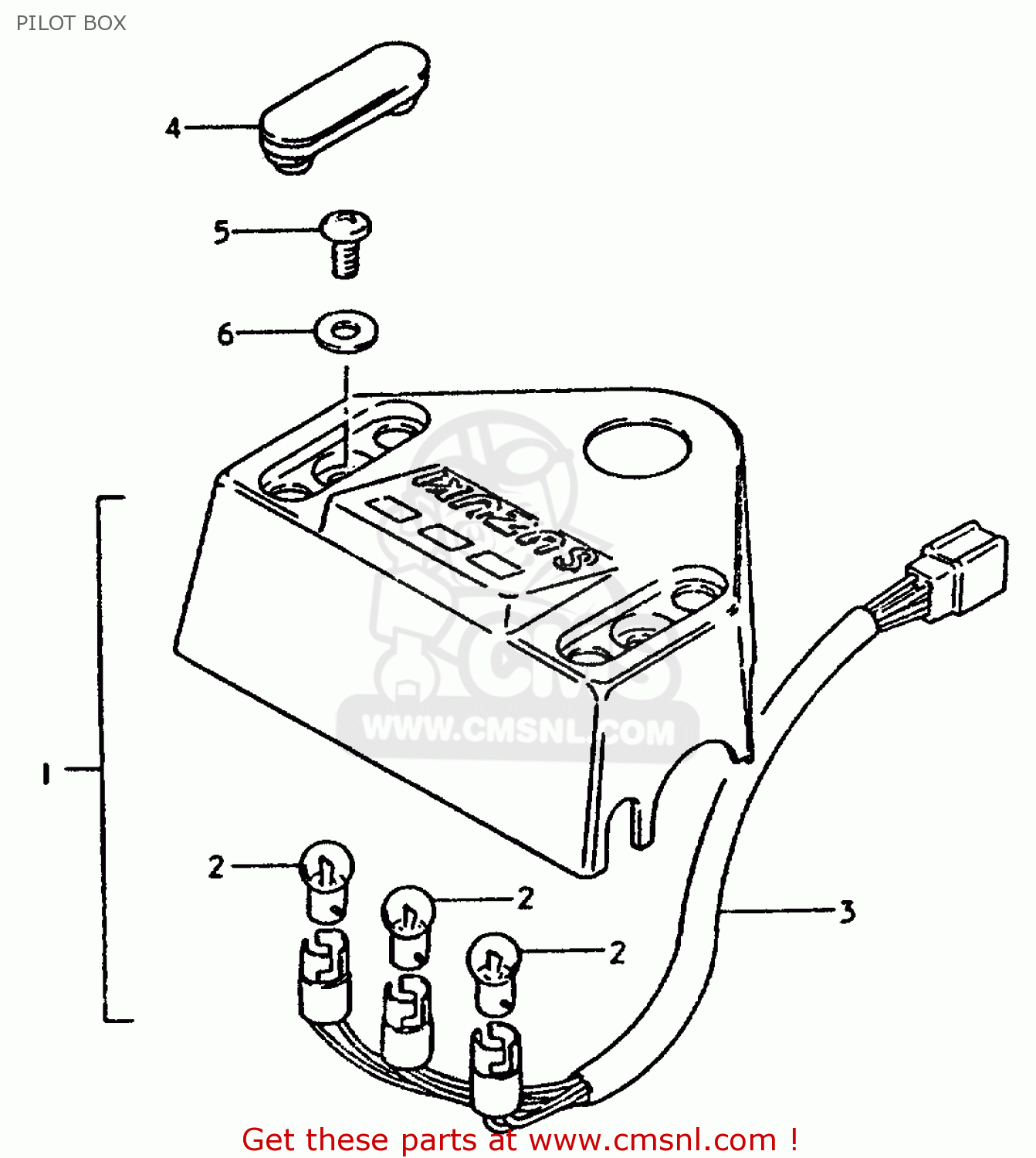

Pilot box diagram TS50ERPD 1981 (T) FRANCE (E04)

PILOT BOX TS50ERPD 1981 (T) FRANCE (E04)

PILOT BOX TS50ERPD 1981 (T) FRANCE (E04)

prices are in EUR

ref

part #

description

quantity

1

3638026500
ref: 1

PILOT BOX ASSY

€ 58.50

2

0947106002
ref: 2

BULB(6V/3W)

€ 2.50

3

3632526500
ref: 3

SOCKET

€ 28.50

4

3638848500
ref: 4

CAP,PILOT BOX BOLT

€ 4.50

5

0211206128
ref: 5

SCREW 6X12

€ 2.00

6

0832221068
ref: 6

WASHER

€ 2.00
