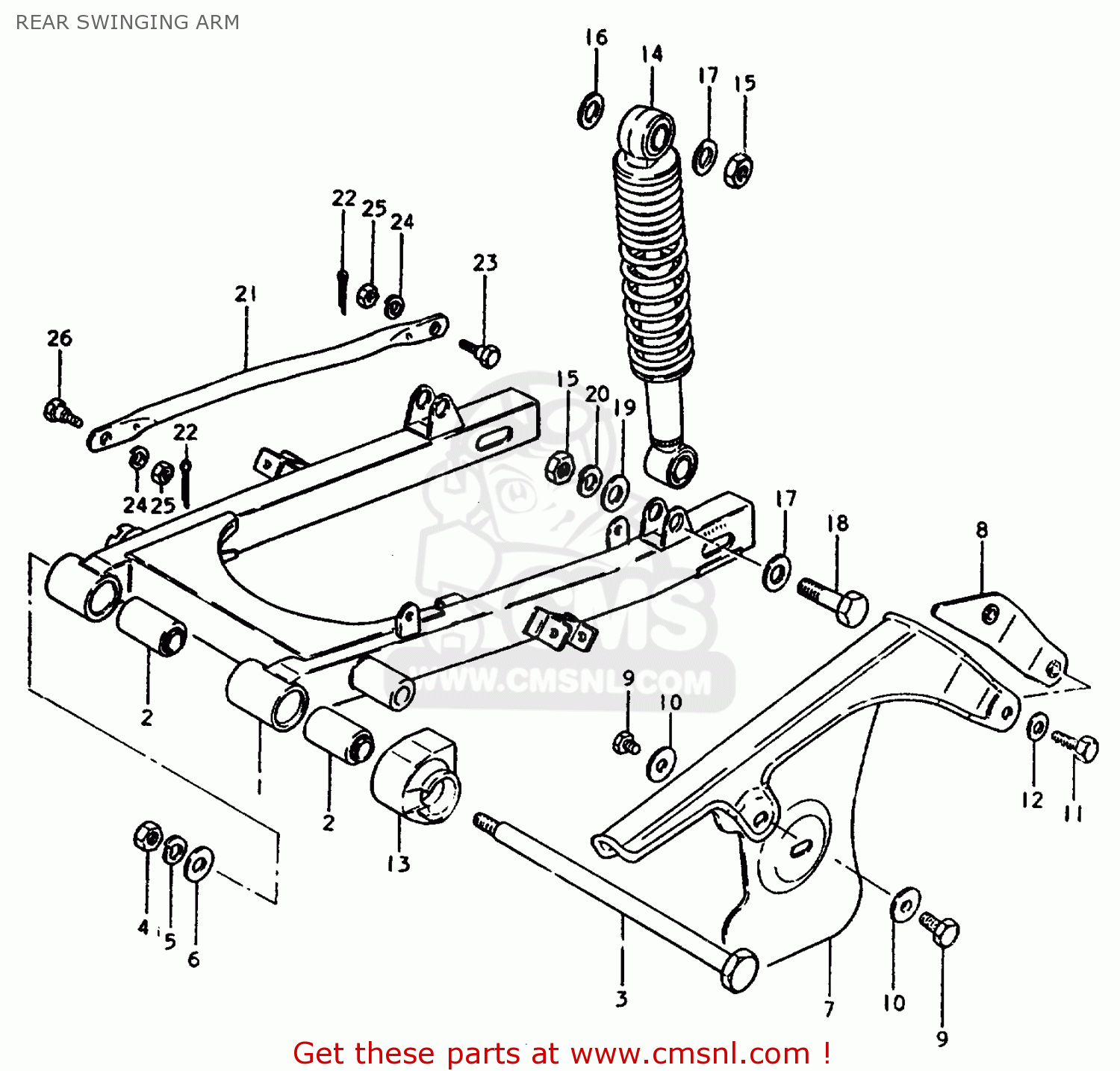

REAR SWINGING ARM

ref

part #

description

quantity

1

611014685108C
ref: 1

SWINGING ARM, REAR (GOLD)

€ 0.00

2

0931910024
ref: 2

BUSH

€ 8.50

3

6121146000
ref: 3

SHAFT,REAR SWING ARM

€ 13.00

4

0831012108
ref: 4

NUT

€ 2.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0832221108
ref: 6

WASHER

€ 2.50

7

6131126501019
ref: 7

CASE,CHAIN

€ 47.50

8

6138026500
ref: 8

REINFORCEMENT,CHAIN CASE

€ 8.50

9

0910006011
ref: 9

BOLT(6X8)

€ 2.50

10

0916906010
ref: 10

WASHER

€ 3.00

11

0110706168
ref: 11

BOLT, UPPER

€ 3.00

12

0832221068
ref: 12

WASHER

€ 2.00

13

6127326500
ref: 13

BUFFER

€ 9.00

14-1

6210026500
ref: 14-1

SHOCK ABSORBER, REAR

€ 133.50

14-2

6210026511
ref: 14-2
TE50ERPDTTS50ERPT E2

SHOCK ABSORBER, REAR

€ 0.00

15

0831012108
ref: 15

NUT

€ 2.50

16

0832211128
ref: 16

WASHER

€ 2.00

17

0916010001
ref: 17

WASHER

€ 2.00

18

0910410002
ref: 18

BOLT(10X36)

€ 4.50

19

0832211108
ref: 19

WASHER

€ 2.50

20

0832121108
ref: 20

LOCK WASHER

€ 2.00

21

643112650008C
ref: 21

TORQUE LINK, REAR

€ 10.50

22

0411120158
ref: 22

PIN

€ 1.50

23

0911108013
ref: 23

BOLT(8X26.5)

€ 3.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0914008008
ref: 25

NUT

€ 1.50

26

0911108015
ref: 26

BOLT(8X22)

€ 3.00
