TS50ERPD 1981 (T) FRANCE (E04)

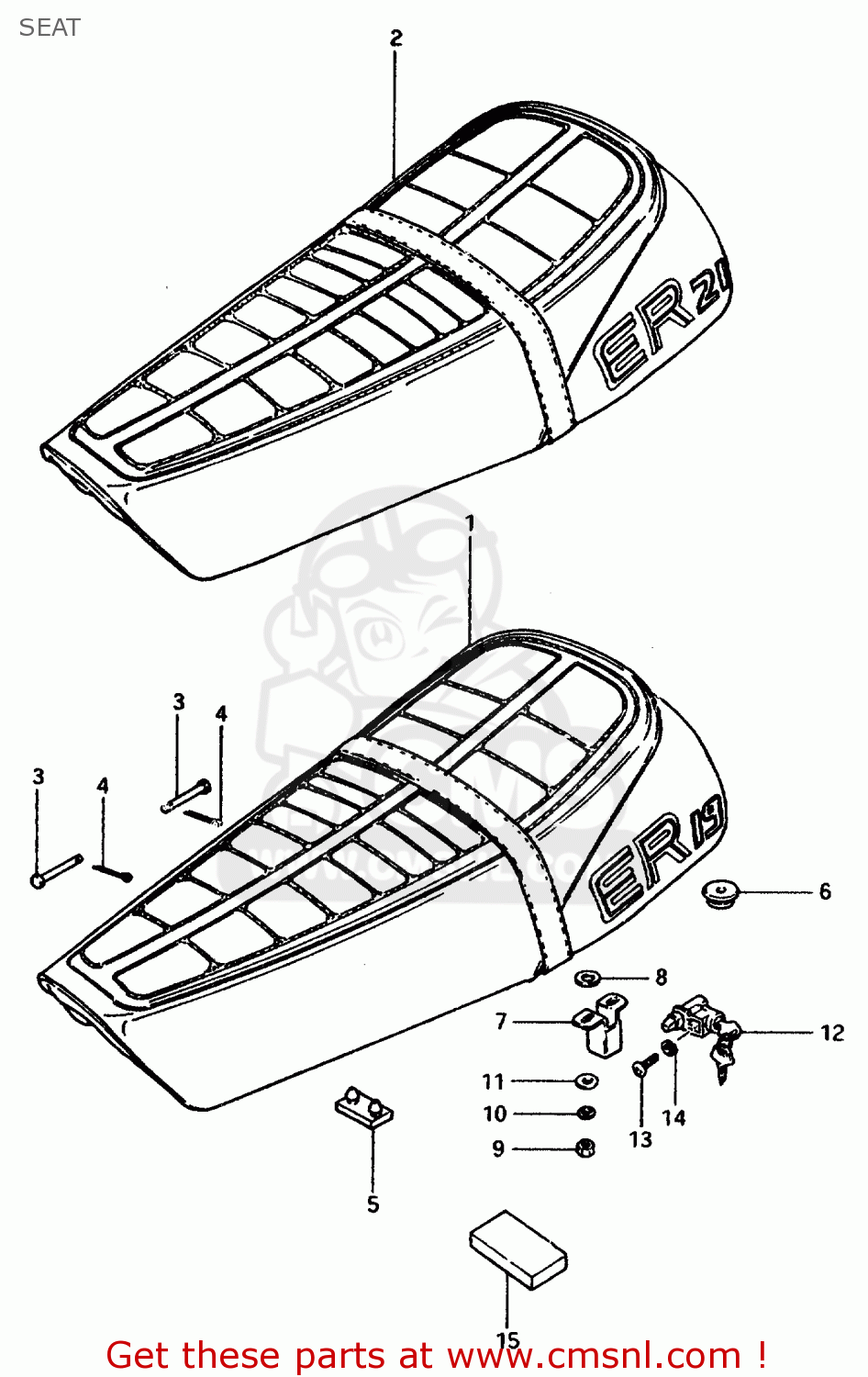

Seat diagram TS50ERPD 1981 (T) FRANCE (E04)
SEAT TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510026520866
ref: 1-1
SEAT ASSY (BLACK)
€ 178.00
1-2
4510026500866
ref: 1-2
E25
SEAT ASSY (BLACK)
€ 209.00
2
4510026510866
ref: 2
TS50ERPDT
SEAT ASSY (BLACK)
€ 209.00
3
0920006018
ref: 3
PIN
€ 2.00
4
0411120158
ref: 4
PIN
€ 1.50
5
0932110009
ref: 5
CUSHION
€ 3.00
6
0932020004
ref: 6
CUSHION
€ 4.50
7
4521329300
ref: 7
PLATE,CLAMP GUIDE
€ 7.00
8
0916008043
ref: 8
WASHER(8.5X18X1)
€ 1.50
9
0831011068
ref: 9
NUT
€ 2.50
10
0832131068
ref: 10
LOCK WASHER
€ 2.50
11
0832221068
ref: 11
WASHER
€ 2.00
12
9570030832
ref: 12
LOCK ASSY,SEAT
€ 54.00
13
0211205128
ref: 13
SCREW
€ 2.50
14
0832121058
ref: 14
LOCK WASHER
€ 2.00
15
9498229400
ref: 15
CUSHION(30X60X10)
€ 1.50
16-1
4631026500
ref: 16-1
OPT
CARRIER, SPORTS
€ 54.50
16-2
4631026501
ref: 16-2
OPT
CARRIER,SPORT
€ 54.50
