TURN SIGNAL LAMP
TS50ERPD 1981 (T) FRANCE (E04)

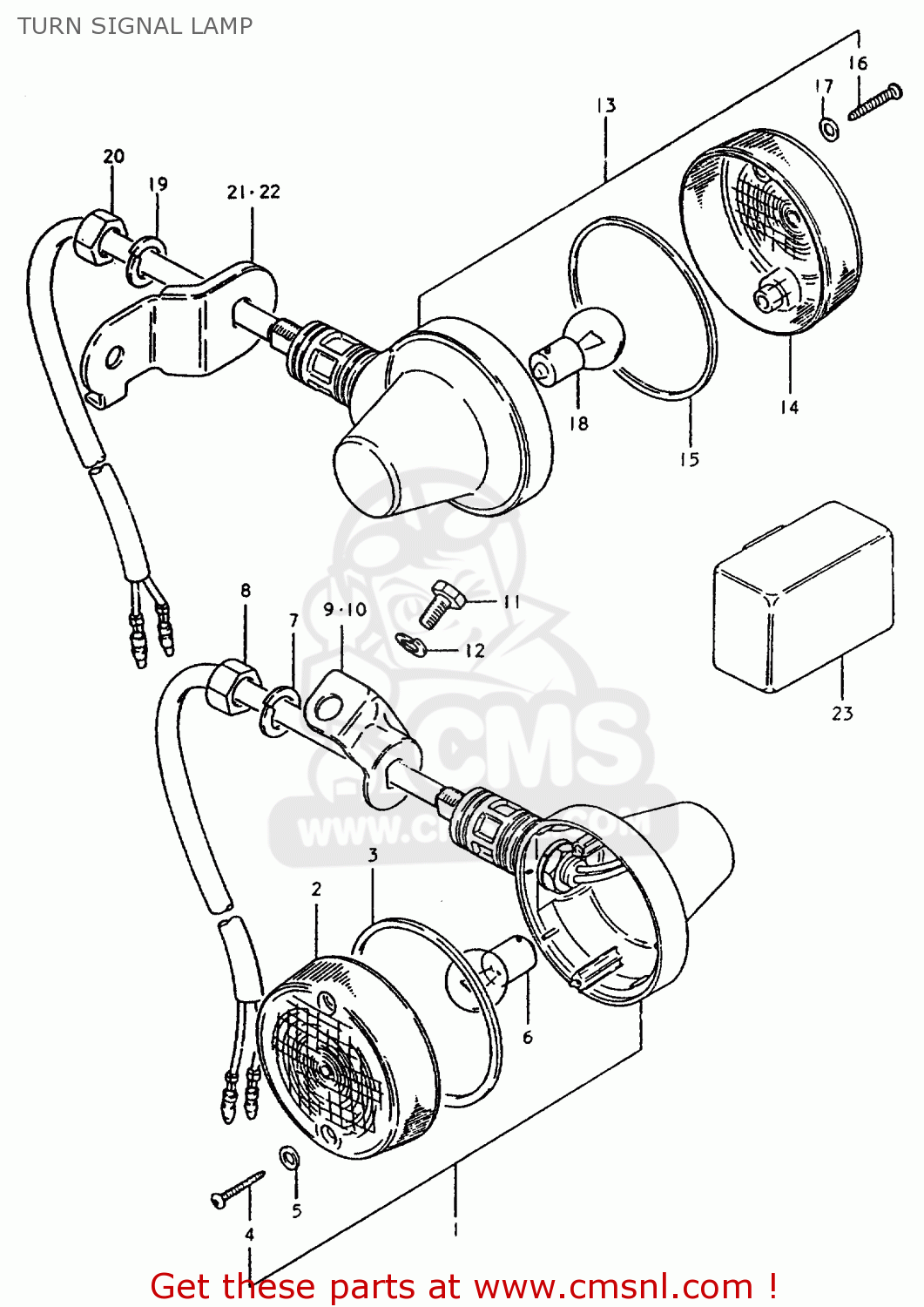

Turn signal lamp diagram TS50ERPD 1981 (T) FRANCE (E04)
TURN SIGNAL LAMP TS50ERPD 1981 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560348521999
ref: 1-1
LAMP ASSY,RR TURNSIGNAL
€ 72.50
1-2
3560146760
ref: 1-2
E25
LAMP, FRONT TURN SIGNAL
€ 27.50
2-1
3561248510
ref: 2-1
LENS
€ 10.50
2-2
3561248530
ref: 2-2
E25
LENS
€ 7.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104258
ref: 4
SCREW TAPP.
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106023
ref: 6
BULB(6V/10W,STANLEY,A4117)
€ 4.00
7
0832121128
ref: 7
WASHER,LOCK 12
€ 2.50
8
0831012128
ref: 8
NUT
€ 3.00
9
5125129900291
ref: 9
TS50ERPDT
BRACKET,TURNSIGNAL LAMP,R
€ 7.50
10
5125229900291
ref: 10
TS50ERPDT
BRACKET,TURNSIGNAL LAMP,L
€ 7.50
11
0110706128
ref: 11
TS50ERPDT
BOLT
€ 2.00
12
0832121068
ref: 12
TS50ERPDT
LOCK WASHER
€ 2.50
13
3560348521999
ref: 13
LAMP ASSY,RR TURNSIGNAL
€ 72.50
14
3561248510
ref: 14
LENS
€ 10.50
15
3561328620
ref: 15
GASKET (NAS)
€ 7.00
16
0321104258
ref: 16
SCREW TAPP.
€ 2.00
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
0947106023
ref: 18
BULB(6V/10W,STANLEY,A4117)
€ 4.00
19
0832121128
ref: 19
WASHER,LOCK 12
€ 2.50
20
0831012128
ref: 20
NUT
€ 3.00
21
4158048500
ref: 21
BRACKET,REAR TURN SIGNAL
€ 14.00
22
4159048500
ref: 22
BRACKET,REAR TURN SIGNAL
€ 14.50
23
3861039121
ref: 23
RELAY, TURN SIGNAL
€ 49.00
