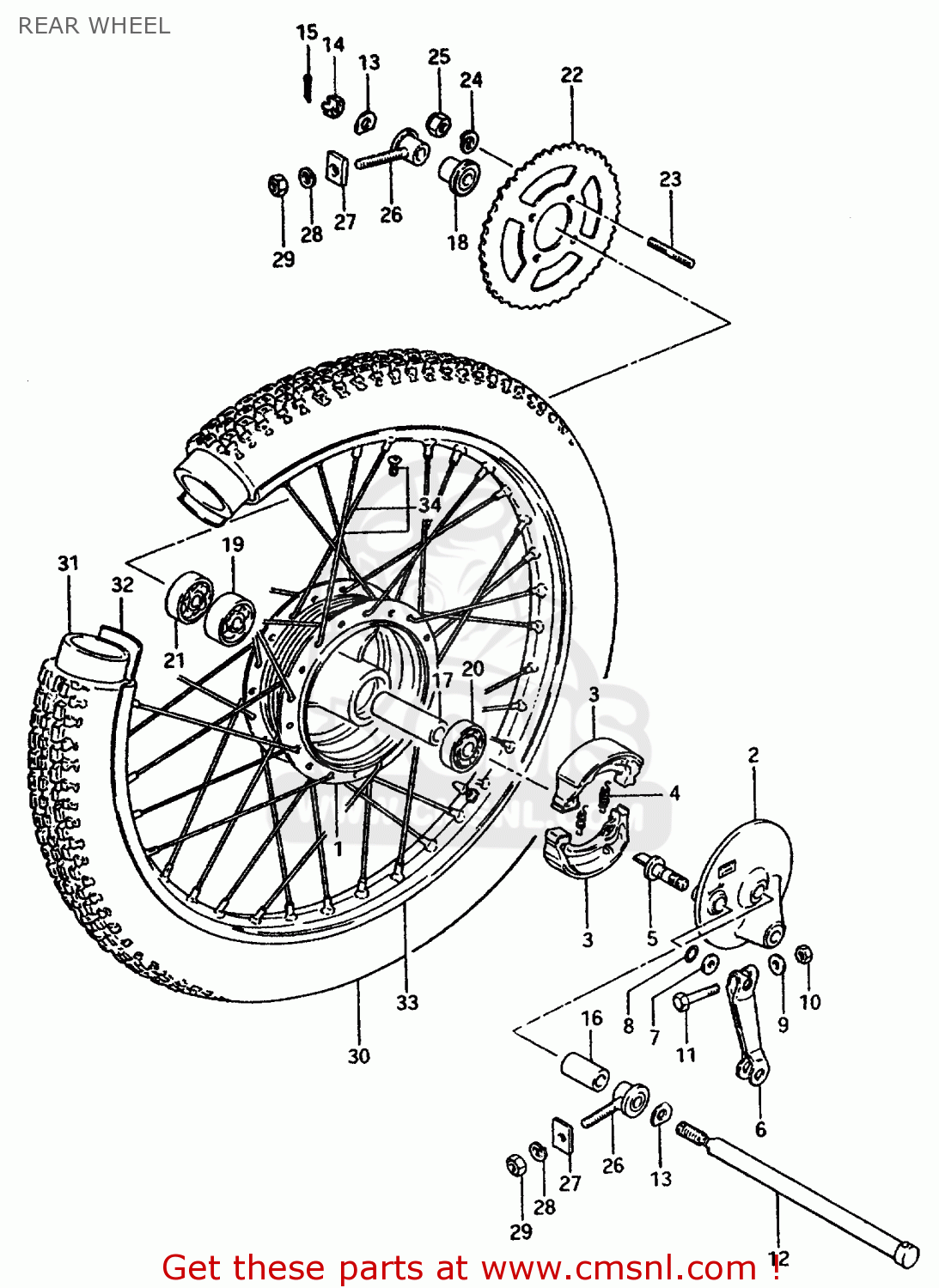

REAR WHEEL

ref

part #

description

quantity

1

6410046811
ref: 1
INC.REF.NOS.17,19,20

DRUM SET,REAR HUB

€ 120.50

2

6421046022
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 66.00

3

5441043020
ref: 3

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445148000
ref: 6

LEVER,RR BRAKE CAM

€ 32.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

6471126500
ref: 12

AXLE,RR

€ 27.50

13

6471226500
ref: 13

WASHER,RR AXLE

€ 8.50

14

0831431128
ref: 14

NUT 12MM

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0918012085
ref: 16

SPACER, AXLE RH

€ 5.00

17

0918012082
ref: 17

SPACER (12.6X19X79)

€ 9.50

18

6475046700
ref: 18

SPACER, REAR AXLE LH

€ 6.50

19

0811363010
ref: 19

BEARING

€ 9.50

20

0814363017
ref: 20

BEARING

€ 14.50

21

0812363017
ref: 21

BEARING

€ 13.50

22-1

6451146630
ref: 22-1

SPROCKET, REAR (NT:47)

€ 40.00

22-2

6451146640
ref: 22-2
TS50ERPDT

SPROCKET, REAR (NT:49)

€ 42.00

22-3

6451146650
ref: 22-3
TS50ERPT E25

SPROCKET, REAR (NT:50)

€ 40.50

23

0142110208
ref: 23

BOLT

€ 2.50

24

0832121108
ref: 24

LOCK WASHER

€ 2.00

25

0831921108
ref: 25

NUT

€ 3.00

26

6141026500
ref: 26
TO 61410-26501

ADJUSTER, CHAIN

€ 9.00

27

6142126501
ref: 27

ADJUSTER,CHAIN

€ 4.00

28

0832121088
ref: 28

LOCK WASHER

€ 2.00

29

0831012088
ref: 29

NUT

€ 2.00

30-1

6510046770
ref: 30-1
ICR

TIRE (3.00-17)

€ 0.00

30-2

6510026500
ref: 30-2
IRC, TS50ERPDTTS50ER

TIRE (3.00-18)

€ 180.50

31-1

5520009210
ref: 31-1

TUBE, INNER

€ 0.00

31-2

5520011601
ref: 31-2
TS50ERPDTTS50ERPT E2

TUBE,INNER

€ 24.50

32-1

5526101010
ref: 32-1

PROTECTOR,WHEEL,INNER

€ 3.50

32-2

5526111010
ref: 32-2
TS50ERPDTTS50ERPT E2

PROTECTOR,INNER TUBE

€ 3.50

33-1

6531146730
ref: 33-1

RIM,RR WHEEL(17X1.60)

€ 78.00

33-2

6531126500
ref: 33-2
TS50ERPDT

RIM, WHEEL

€ 98.50

34-1

6532046730
ref: 34-1

SPOKE SET,RR

€ 46.00

34-2

6532012120
ref: 34-2
TS50ERPDTTS50ERPT E2

SPOKE SET,REAR WHEEL

€ 26.00
