CLUTCH

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

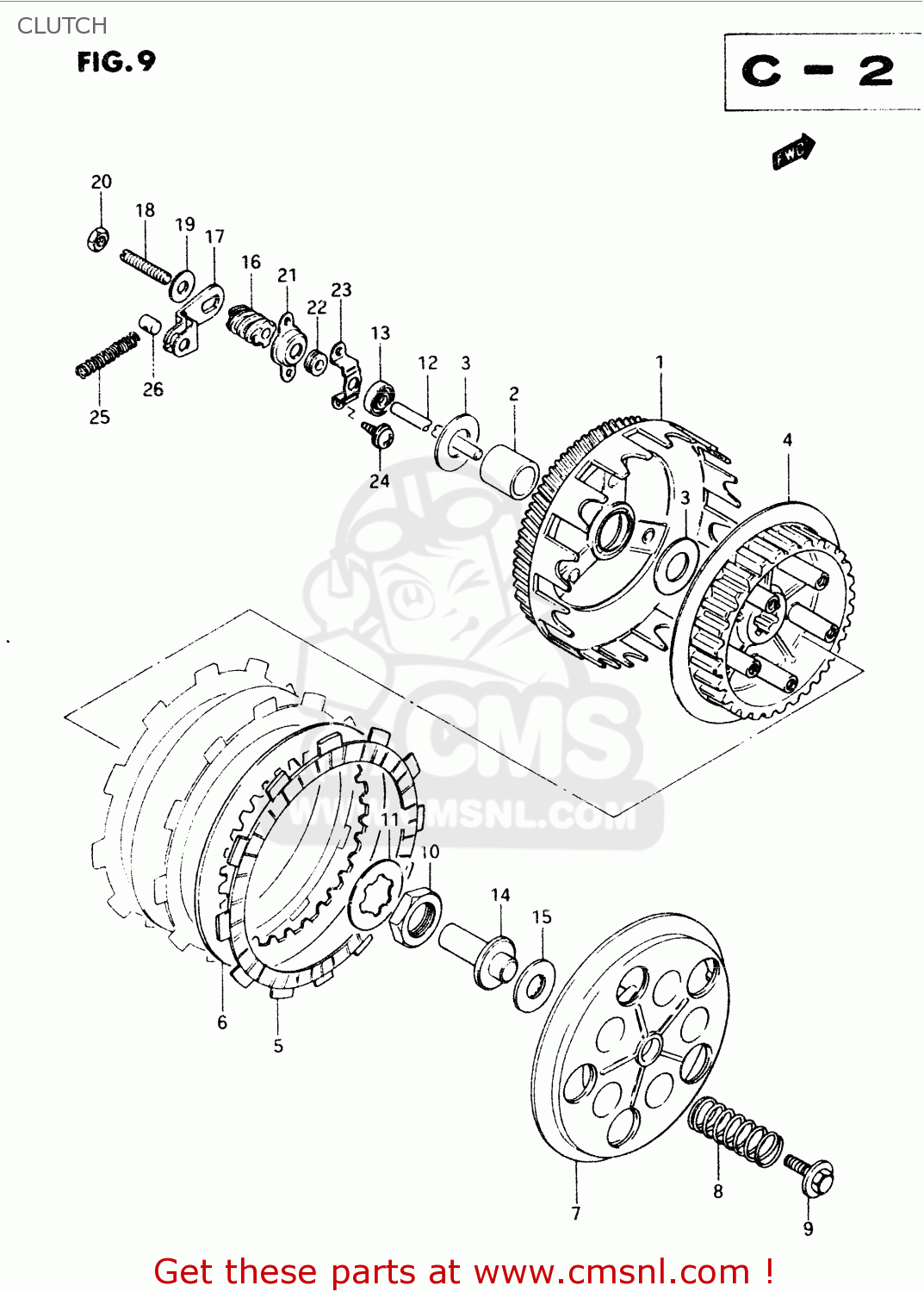

Clutch diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

CLUTCH TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
CLUTCH TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
CLUTCH TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
2120004700
ref: 1
NT:17/73
GEAR ASSY, PRIMARY DRIVEN
2120004700
€ 173.00
2
0918017049
ref: 2
SPACER(17X22X28.5)
0918017049
€ 20.50
3
0821117282
ref: 3
WASHER
0821117282
€ 3.00
4
2141146000
ref: 4
HUB,CLUTCH SLEEVE
2141146000
€ 41.00
5
2144104710
ref: 5
<-21441-04700
PLATE,CLUTCH DRIVE (NAS)
2144104710
€ 10.00
6
2145128000
ref: 6
PLATE,CLUTCH DRIVEN (NAS)
2145128000
€ 4.50
7
2146220400
ref: 7
DISC,CLUTCH PRESSURE
2146220400
€ 19.50
8
0944015008
ref: 8
SPRING
0944015008
€ 2.00
9
0911605003
ref: 9
BOLT 5X16
0911605003
€ 2.50
10
0914016014
ref: 10
NUT
0914016014
€ 4.50
11
0916717002
ref: 11
WASHER,LOCK
0916717002
€ 2.00
12
2311114101
ref: 12
ROD,CLUTCH PUSH
2311114101
€ 9.00
13
0928505004
ref: 13
SEAL,OIL(5.5X16X8)
0928505004
€ 12.00
14
2312139101
ref: 14
PIECE,CLUTCH PUSH
2312139101
€ 14.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
0926310002
€ 8.50
16
2321136200
ref: 16
SCREW,CLUTCH RELEASE
2321136200
€ 20.50
17
2321204701
ref: 17
ARM,CLUTCH
2321204701
€ 13.50
18
0913406010
ref: 18
SCREW(6X25)
0913406010
€ 3.00
19
0916006066
ref: 19
WASHER(6.5X20X1.6)
0916006066
€ 2.00
20-1
0831022067
ref: 20-1
MODEL E/G/H/J/M
NUT 6MM
0831022067
€ 2.50
20-2
0914006023
ref: 20-2
MODEL R
NUT
0914006023
€ 2.00
21
2324136201
ref: 21
COVER,CLUTCH RELEASE SCREW
2324136201
€ 4.50
22
0928105001
ref: 22
SEAL,DUST(5.3X13X5)
0928105001
€ 2.50
23
2324536200
ref: 23
HOLDER,DUST SEAL
2324536200
€ 5.50
24-1
0314105123
ref: 24-1
MODEL E/G/H/J/M
SCREW
€ 1.50
24-2
0311105123
ref: 24-2
MODEL R
TAPPING SCREW
€ 1.50
25
0944008026
ref: 25
SPRING
0944008026
€ 2.00
26
2322239300
ref: 26
PIECE,RELEASE
€ 5.50
