REAR COMBINATION LAMP (E1,E21)

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

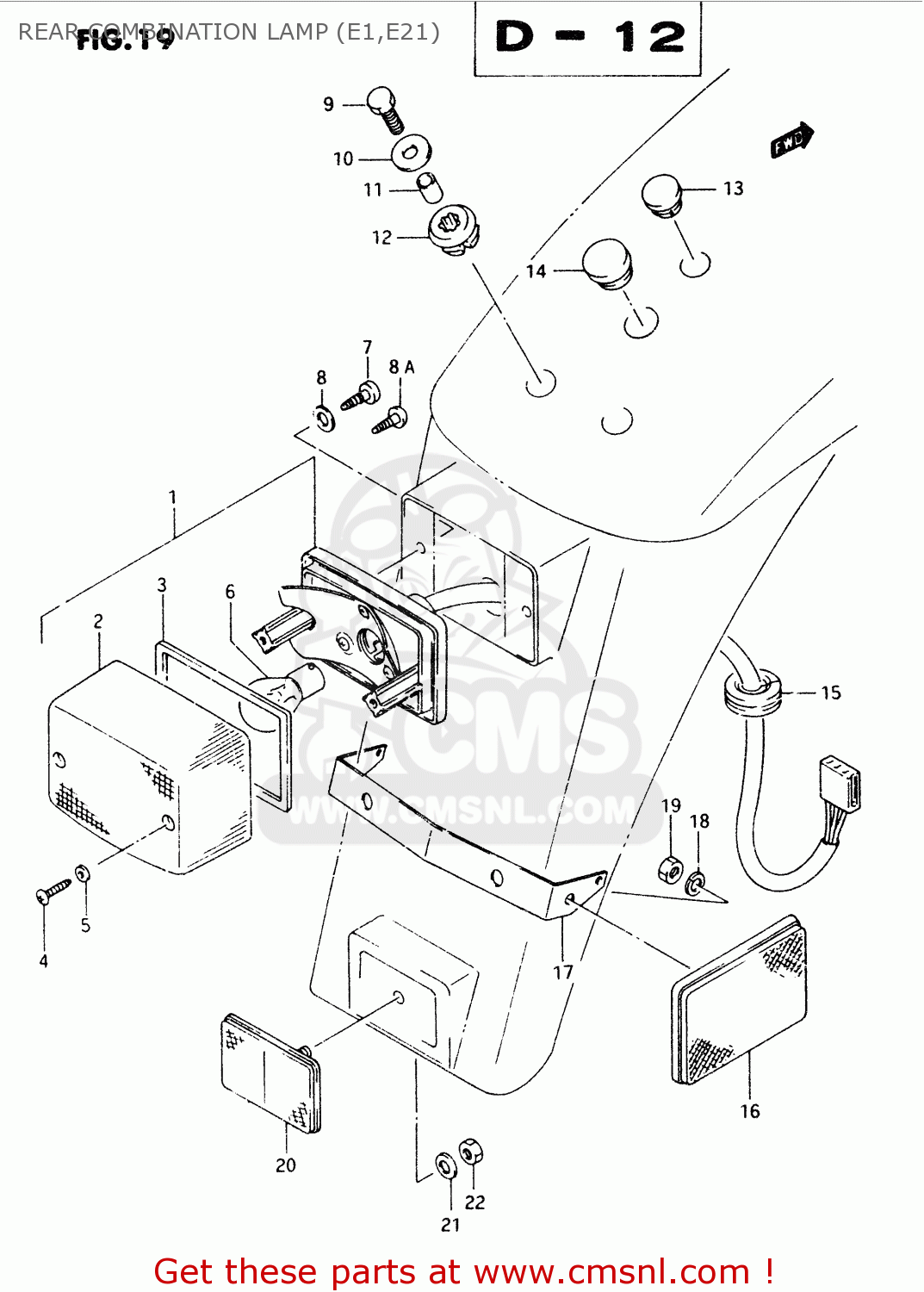

Rear combination lamp (e1,e21) diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

REAR COMBINATION LAMP (E1,E21) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR COMBINATION LAMP (E1,E21) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR COMBINATION LAMP (E1,E21) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
3571013630
ref: 1
LAMP ASSY, REAR COMBINATION
€ 90.50
2
3571236A70
ref: 2
<-35712-13600
LENS
3571236A70
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
3571313600
€ 3.50
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112057
ref: 6
BULB 12V21/5W
0947112057
€ 6.00
7
0351105166
ref: 7
MODEL E/G/H/J/M
SCREW
€ 2.00
8
0832221056
ref: 8
MODEL E/G/H/J/M
WASHER
€ 2.50
8A
0354105163
ref: 8A
MODEL R
SCREW
0354105163
€ 1.50
9-1
0150006207
ref: 9-1
MODEL E/G/H/J
BOLT
0150006207
€ 2.00
9-2
0911606011
ref: 9-2
MODEL M/R
BOLT 6X20
€ 2.00
10
0916006027
ref: 10
WASHER (6.5X20X1.2)
0916006027
€ 2.00
11
0918006090
ref: 11
SPACER (6.4X9X10.5)
€ 2.00
12
0932009010
ref: 12
CUSHION
0932009010
€ 2.50
13
0925014005
ref: 13
PLUG(OD:19)
0925014005
€ 2.00
14
0925018003
ref: 14
PLUG(OD:22)
0925018003
€ 2.00
15-1
0930807013
ref: 15-1
MODEL E/G/H/J/M
GROMMET
0930807013
€ 3.50
15-2
0930807010
ref: 15-2
MODEL R
GROMMET
0930807010
€ 2.50
16
3595026941
ref: 16
E21,MODEL G/H/J E1
REFLEX REFLECTOR
3595026941
€ 18.50
17
3597613720
ref: 17
E21,MODEL G/H/J E1
BRACKET
3597613720
€ 10.50
18
0832121055
ref: 18
E21,MODEL G/H/J E1
WASHER,LOCK
0832121055
€ 3.00
19
0831012055
ref: 19
E21,MODEL G/H/J E1
NUT ,5MM
0831012055
€ 2.50
20-1
3597017300
ref: 20-1
MODEL E
REFLEX REFLECTOR,RR
3597017300
€ 16.50
20-2
3597001A10
ref: 20-2
MODEL G/H/J/M/R
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
21
0832201057
ref: 21
WASHER
0832201057
€ 2.50
22-1
0831000057
ref: 22-1
MODEL G/H/J/M
NUT
0831000057
€ 2.50
22-2
0831610053
ref: 22-2
MODEL R
NUT
0831610053
€ 2.50
