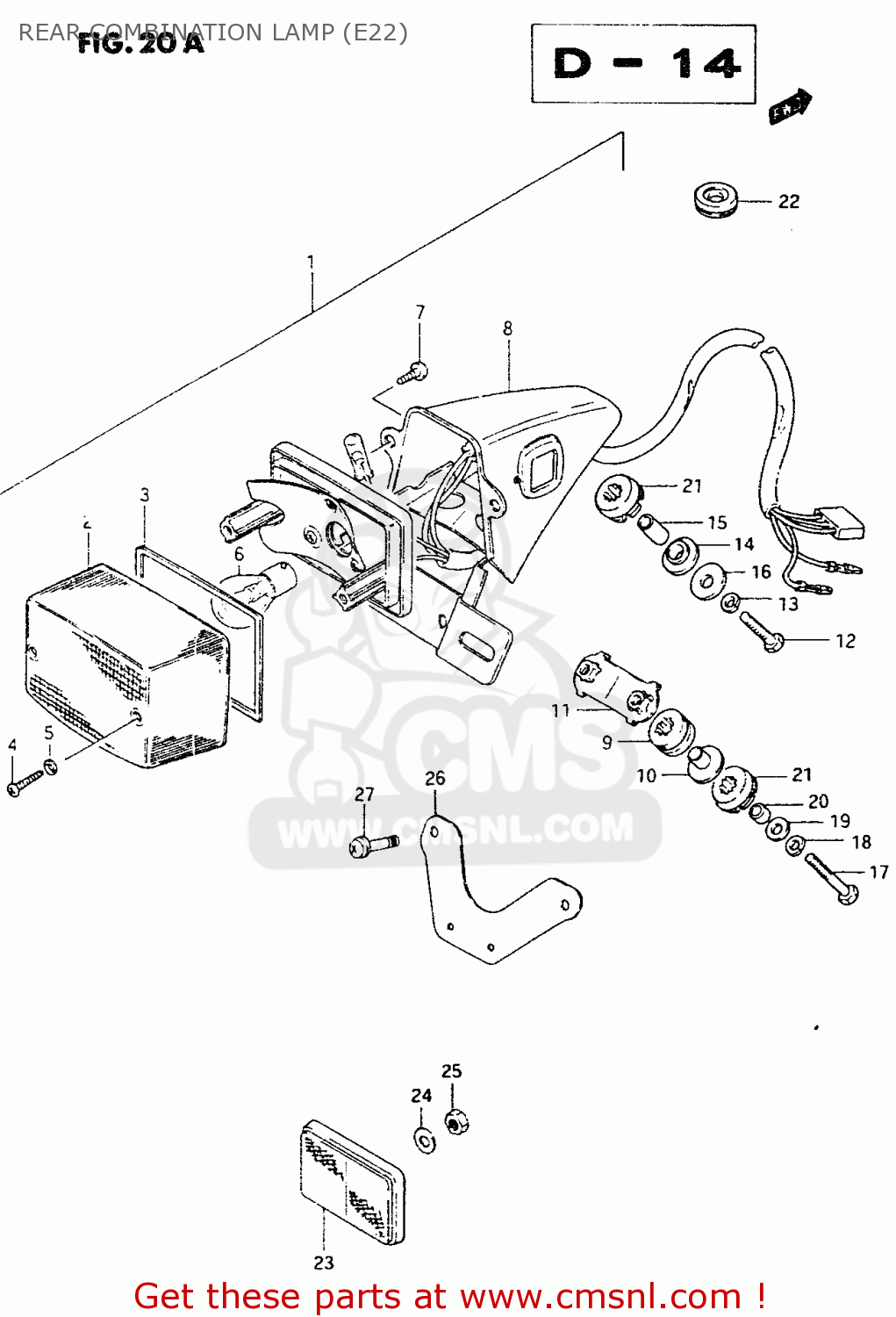

REAR COMBINATION LAMP (E22)

ref

part #

description

quantity

1

3572013670
ref: 1

LAMP UNIT, REAR COMBINATION

€ 82.00

2

3571236A70
ref: 2

LENS

€ 19.00

3

3571313600
ref: 3

GASKET,RR COMBI LAMP LENS (NAS)

€ 3.50

4

0321104207
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112046
ref: 6
PURCHASE LOCALLY

BULB(12V21/5W)

€ 1.50

7

0321205165
ref: 7

SCREW

€ 7.50

8

3573013652
ref: 8

BRACKET UNIT,TAIL LAMP

€ 75.50

9

3576530950
ref: 9

CUSHION

€ 18.00

10

3576630950
ref: 10

SPACER

€ 2.00

11

3571613650
ref: 11

PLATE,RR COMBI

€ 0.00

12-1

0110706305
ref: 12-1
MODEL M

BOLT

€ 2.50

12-2

0157006303
ref: 12-2
MODEL R

BOLT

€ 2.00

13

0832121064
ref: 13

WASHER,LOCK

€ 2.00

14

0932009003
ref: 14

CUSHION

€ 2.00

15

0918006110
ref: 15

SPACER (6.8X10X16)

€ 3.00

16

0916006063
ref: 16

WASHER (6.5X22X1.6)

€ 2.00

17-1

0110706455
ref: 17-1
MODEL M

BOLT

€ 2.00

17-2

0158006453
ref: 17-2
MODEL R

BOLT

€ 2.50

18

0832121064
ref: 18

WASHER,LOCK

€ 2.00

19

0832221064
ref: 19

WASHER

€ 2.00

20

0918006090
ref: 20

SPACER (6.4X9X10.5)

€ 2.00

21

0932009010
ref: 21

CUSHION

€ 2.50

22-1

0930807013
ref: 22-1
MODEL M

GROMMET

€ 3.50

22-2

0930807010
ref: 22-2
MODEL R

GROMMET

€ 2.50

23

3597001A10
ref: 23

REFLEX REFLECTOR,RR

€ 85.00

24

0832201057
ref: 24

WASHER

€ 2.50

25-1

0831000057
ref: 25-1
MODEL M

NUT

€ 2.50

25-2

0831610053
ref: 25-2
MODEL R

NUT

€ 2.50

26

3592722600
ref: 26

FLATE, LICENCE

€ 13.00

27-1

0211216125
ref: 27-1
MODEL M

SCREW

€ 2.00

27-2

0214206123
ref: 27-2
MODEL R

SCREW 6X12

€ 2.00
