REAR SHOCK ABSORBER

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

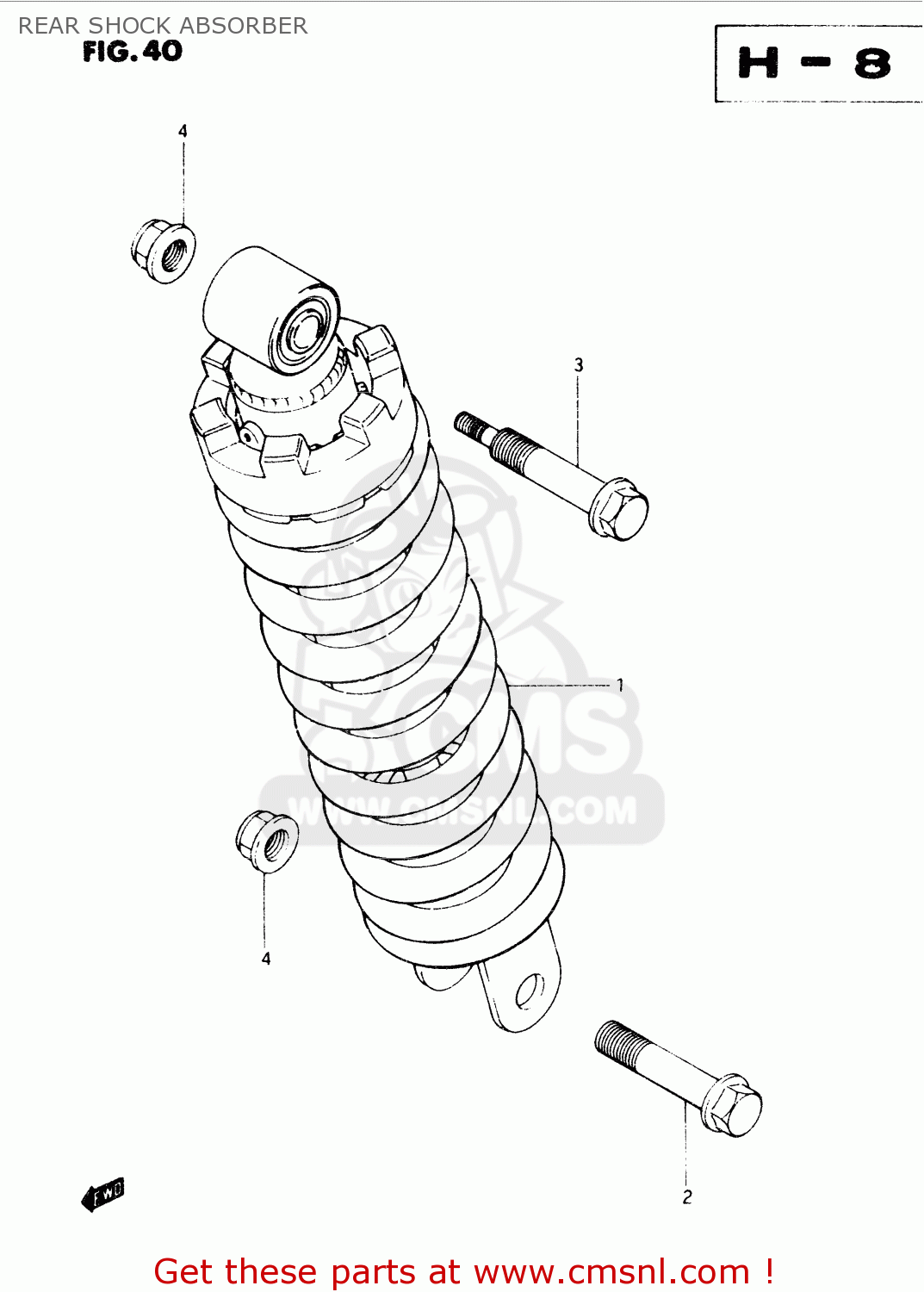

Rear shock absorber diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

prices are in EUR

ref

part #

description

quantity

1-1

6210013610019
ref: 1-1
MODEL E/G ->62100-13

ABSORBER ASSY, REAR SHOCK (BLACK)

€ 385.00

1-2

6210013611019
ref: 1-2
MODEL R

ABSORBER ASSY, REAR SHOCK (BLACK)

€ 385.00

1-3

621001361019F
ref: 1-3
MODEL H/J/M ->62100-

ABSORBER ASSY,

€ 385.00

0910310064
ref: 2

BOLT(10X50)

€ 4.50

3-1

6231113600
ref: 3-1

BOLT, UPPER (L:63)

€ 5.50

3-2

6231113620
ref: 3-2
E22

BOLT,RR SHOCK ABSORBER UPR

€ 5.50

0831931107
ref: 4

NUT

€ 3.00
