REAR SWINGING ARM (MODEL M/R E22)

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

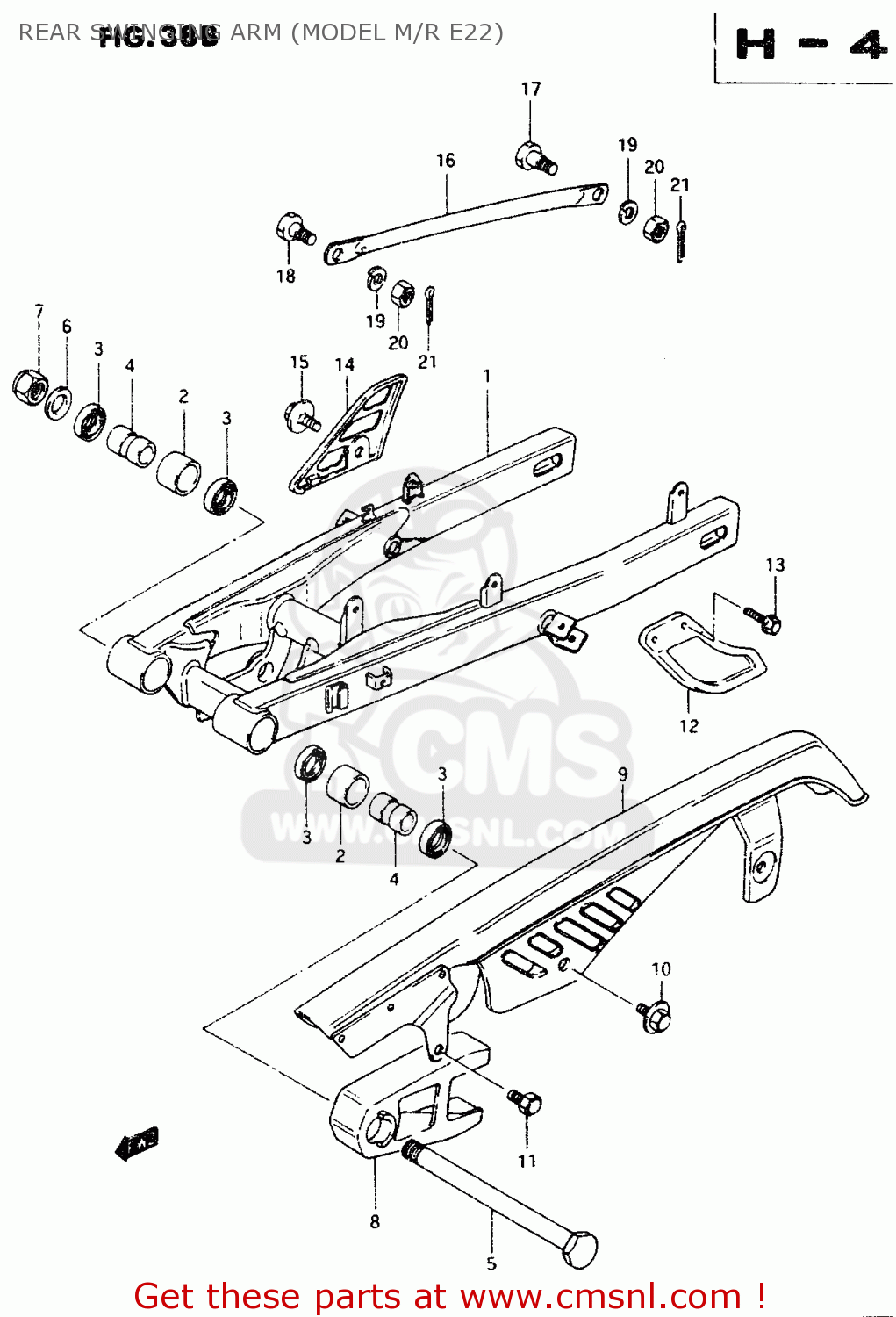

Rear swinging arm (model m/r e22) diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

REAR SWINGING ARM (MODEL M/R E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR SWINGING ARM (MODEL M/R E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR SWINGING ARM (MODEL M/R E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
610001373013L
ref: 1
RR.SWINGINGARM
€ 334.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928520005
ref: 3
OIL SEAL
0928520005
€ 5.00
4
6125113700
ref: 4
SPACER,RR SWINGING ARM PIVOT
6125113700
€ 19.50
5
6121113700
ref: 5
SHAFT,RR
6121113700
€ 14.00
6-1
0832211148
ref: 6-1
MODEL M
WASHER
0832211148
€ 2.00
6-2
0832201143
ref: 6-2
MODEL R
WASHER
0832201143
€ 2.00
7
0831921148
ref: 7
NUT 14MM
0831921148
€ 3.00
8
6127313610
ref: 8
BUFFER,CHAIN TOUCH DEFENCE
6127313610
€ 20.50
9
6131013690
ref: 9
CASE,CHAIN
6131013690
€ 54.50
10
0911606096
ref: 10
BOLT(6X10)
0911606096
€ 2.00
11-1
0111706105
ref: 11-1
MODEL M
BOLT, EXHAUST DRAIN
€ 2.50
11-2
0155006103
ref: 11-2
MODEL R
BOLT
0155006103
€ 2.50
12
6134113710
ref: 12
GUIDE,CHAIN
6134113710
€ 14.00
13-1
0151706164
ref: 13-1
MODEL M
BOLT
€ 2.50
13-2
0155006163
ref: 13-2
MODEL R
BOLT
0155006163
€ 2.50
14
6139113610
ref: 14
GUARD, FOOT (BLACK)
6139113610
€ 12.00
15
0911606096
ref: 15
BOLT(6X10)
0911606096
€ 2.00
16
643114870013L
ref: 16
TORQUE LINK,RR
643114870013L
€ 11.50
17
0911108013
ref: 17
BOLT(8X26.5)
0911108013
€ 3.00
18
0911108015
ref: 18
BOLT(8X22)
0911108015
€ 3.00
19-1
0832121088
ref: 19-1
MODEL M
LOCK WASHER
0832121088
€ 2.00
19-2
0832101083
ref: 19-2
MODEL R
LOCK WASHER
0832101083
€ 2.50
20
0914008008
ref: 20
NUT
0914008008
€ 1.50
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
