FRAME (MODEL E/G)

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

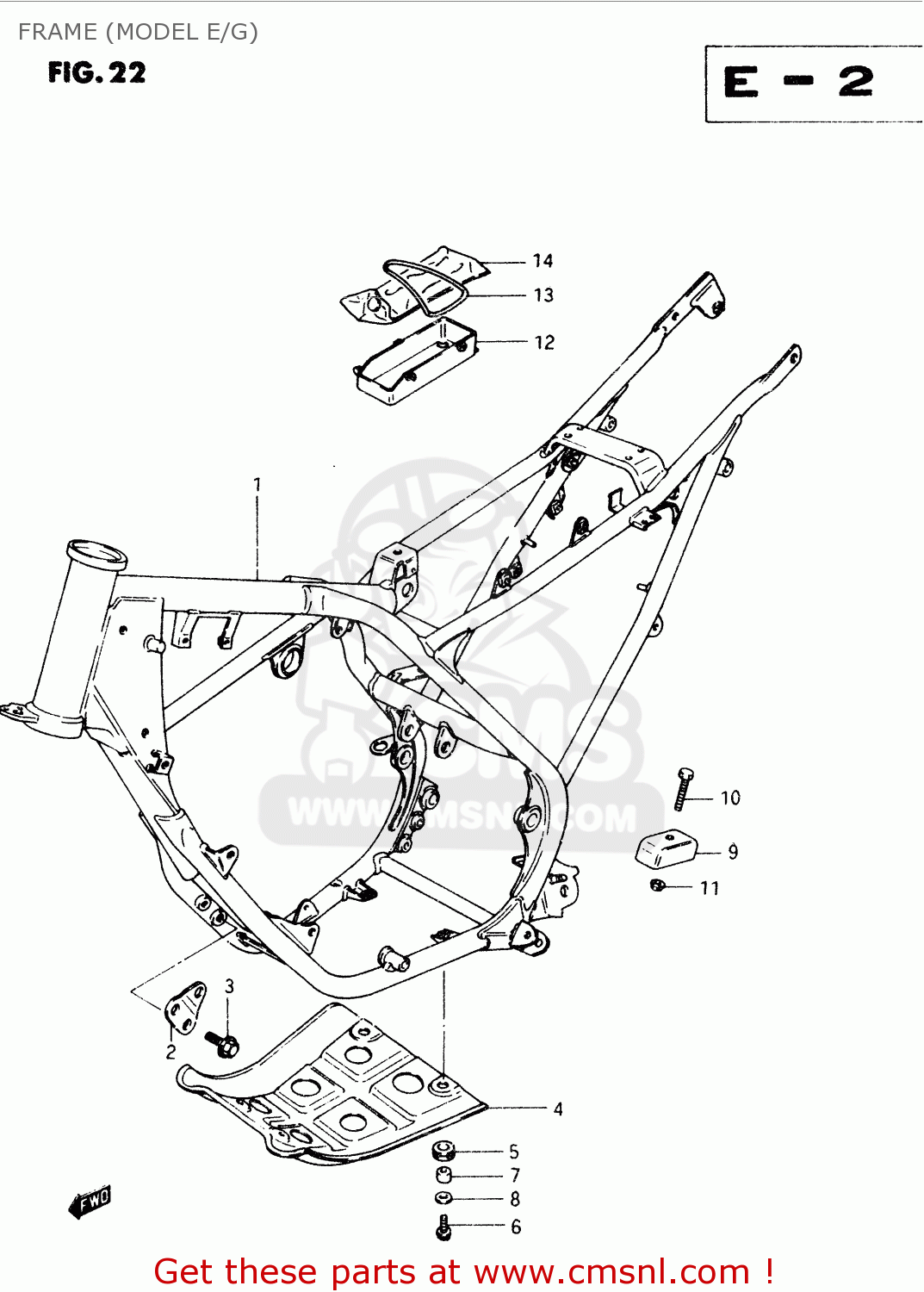

Frame (model e/g) diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

FRAME (MODEL E/G) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

FRAME (MODEL E/G) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

prices are in EUR

ref

part #

description

quantity

1-1

4110013614019
ref: 1-1
E21,MODEL E E2 FOR 1

FRAME (BLACK)

€ 531.00

1-2

411001361419F
ref: 1-2
E21,MODEL E E2 FOR 2

FRAME (BLUE)

€ 511.50

1-3

4110013624019
ref: 1-3
E16,E18,MODEL G E2 F

FRAME (BLACK)

€ 721.50

1-4

411001362419F
ref: 1-4
E16,E18,MODEL G E2 F

FRAME (BLUE)

€ 721.50

1-5

4110034B0019F
ref: 1-5
MODEL G E25

FRAME (BLUE)

€ 511.50

2-1

4199113600019
ref: 2-1

PLATE,ENG MTG

€ 3.50

2-2

4199113600126
ref: 2-2

PLATE, ENGINE MOUNT (PEARL)

€ 3.50

3

0151708165
ref: 3

BOLT, LOWER

€ 3.00

4

4251113701
ref: 4
<-45211-13700

PROTECTOR, ENGINE

€ 28.50

5

0932008030
ref: 5

CUSHION

€ 3.00

6

0151706164
ref: 6

BOLT

€ 2.50

7

0918006109
ref: 7

SPACER (6X9X5)

€ 2.00

8

0916006056
ref: 8

WASHER(6.5X18X1)

€ 2.00

9

4391213700
ref: 9

GUIDE,CHAIN CONTROL

€ 19.00

10

0155006203
ref: 10

BOLT

€ 2.50

11

0831931067
ref: 11

NUT

€ 2.50

12

4155113601
ref: 12

HOLDER, TOOL

€ 8.50

13

0928070004
ref: 13

O RING(D:3.53,ID:69.44)

€ 3.50

14

0980021026
ref: 14
<-09800-00283

TOOL ASSY

€ 9.00
