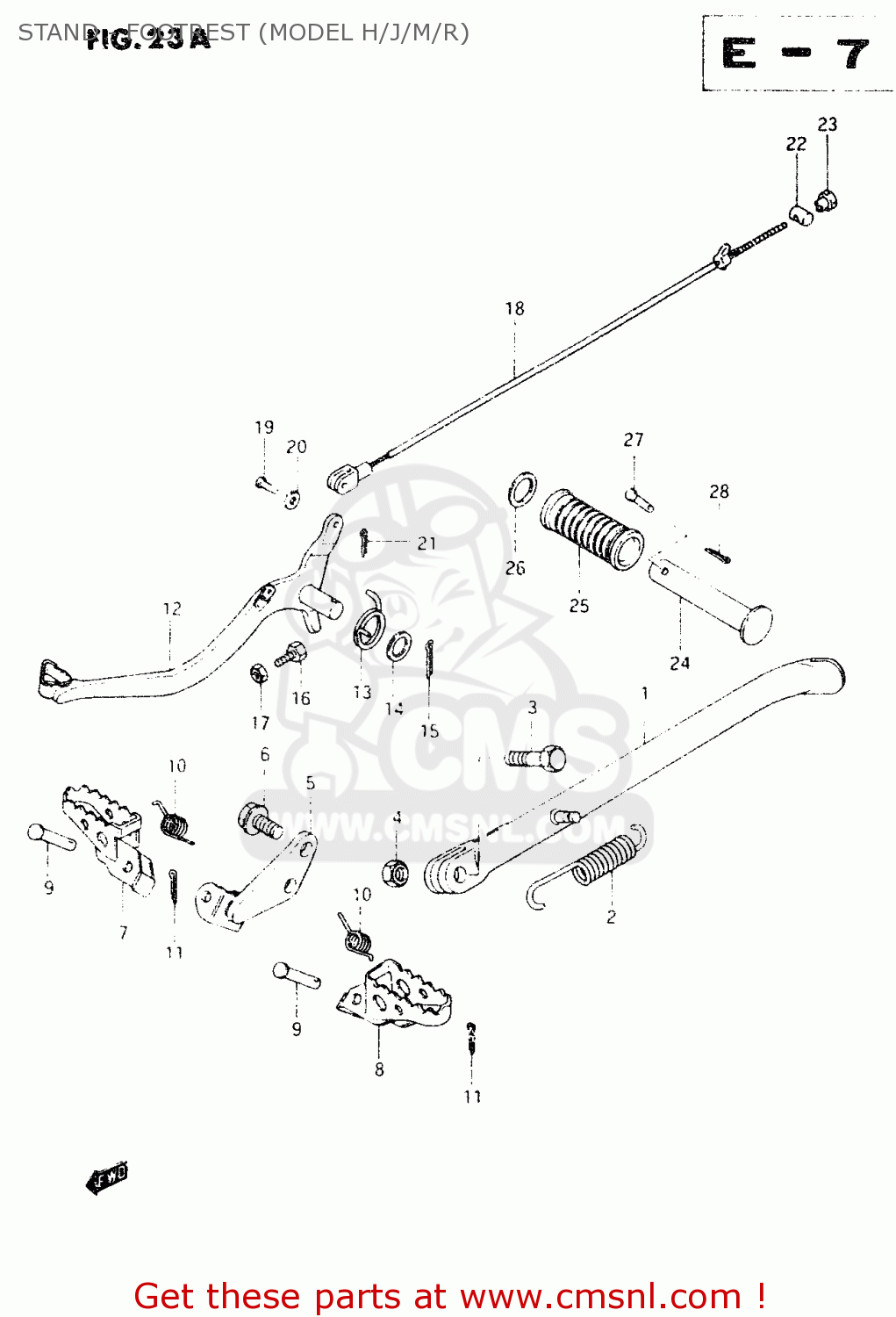

STAND - FOOTREST (MODEL H/J/M/R) - TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

ref

part #

description

quantity

1-1

423101362119F
ref: 1-1
MODEL H/J/M

STAND,PROP

€ 29.00

1-2

4231013621019
ref: 1-2
MODEL R

STAND,SIDE

€ 29.00

1-3

423101363119F
ref: 1-3
MODEL H/J/M E2,E16,E

STAND, PROP (BLUE)

€ 41.50

1-4

4231013631019
ref: 1-4
MODEL R E2,E16,E18,E

STAND,SIDE

€ 41.50

2-1

0944318011
ref: 2-1

SPRING

€ 15.50

2-2

0944315007
ref: 2-2
E2,E16,E18

SPRING

€ 6.00

2-3

0944314014
ref: 2-3
E22

SPRING

€ 5.50

2-4

0944322001
ref: 2-4
E22

SPRING, OUTER

€ 4.50

3-1

0910010067
ref: 3-1

BOLT(10X30)

€ 3.50

3-2

0911110019
ref: 3-2
E2,E16,E18,E22

BOLT L:30

€ 4.50

4-1

0831022107
ref: 4-1
MODEL H/J/M

NUT

€ 2.50

4-2

0914010043
ref: 4-2
MODEL R

NUT

€ 2.00

5-1

435101360219F
ref: 5-1
MODEL H/J/M

HOLDER, FOOTREST RH (BLUE)

€ 23.50

5-2

4351013602019
ref: 5-2
MODEL R

HOLDER,FR FOOTREST,R(BLACK)

€ 24.00

6-1

0151710255
ref: 6-1
MODEL H/J/M

BOLT

€ 3.00

6-2

0155010253
ref: 6-2
MODEL R

BOLT

€ 3.00

7-1

435501360019F
ref: 7-1
MODEL H/J/M

FOOTREST, FRONT RH (BLUE)

€ 21.00

7-2

4355013751019
ref: 7-2
MODEL R

FOOTREST ASSY,R

€ 21.00

8-1

435601360019F
ref: 8-1
MODEL H/J/M

FOOTREST, FRONT LH (BLUE)

€ 14.50

8-2

4356013601019
ref: 8-2
MODEL R

FOOTREST ASSY,

€ 17.00

9

0920008002
ref: 9

PIN

€ 2.00

10

0944814012
ref: 10

SPRING

€ 3.00

11

0411125208
ref: 11

PIN 25X20

€ 2.00

12

4311013701
ref: 12

PEDAL,BRAKE

€ 31.00

13

0944825012
ref: 13

SPRING

€ 5.50

14

0916015002
ref: 14

WASHER(15.5X26X2.3)

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16-1

0110706205
ref: 16-1
MODEL H/J/M

BOLT

€ 2.00

16-2

0150006163
ref: 16-2
MODEL R

BOLT

€ 2.00

17-1

0831022065
ref: 17-1
MODEL H/J/M

NUT

€ 1.50

17-2

0831000063
ref: 17-2
MODEL R

NUT 6MM

€ 2.00

18-1

5851013650
ref: 18-1
~F.NO.101367

CABLE,RR BRAKE

€ 16.00

18-2

5851013651
ref: 18-2
F.NO.101368~

CABLE,RR BRAKE

€ 17.00

19

0920005001
ref: 19

PIN(L:17.5)

€ 1.50

20-1

0832201067
ref: 20-1
MODEL H/J/M

WASHER

€ 2.00

20-2

0832201063
ref: 20-2
MODEL R

WASHER

€ 2.00

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

0920911002
ref: 22

PIN(11X18)

€ 2.00

23

0915006009
ref: 23

NUT (6MM)

€ 3.50

24

4361003001
ref: 24

BAR,FOOTREST RUBBER

€ 5.50

25

4361203001
ref: 25

RUBBER,PILLION FOOTREST

€ 3.50

26

0916019006
ref: 26

WASHER (19.5X32X2)

€ 2.00

27

0920006010
ref: 27

PIN

€ 2.50

28

0411120208
ref: 28

PIN 20X20

€ 1.50

STAND - FOOTREST (MODEL H/J/M/R)
