REAR SWINGING ARM (MODEL M/R E1,E2,E18,E21,E25)

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

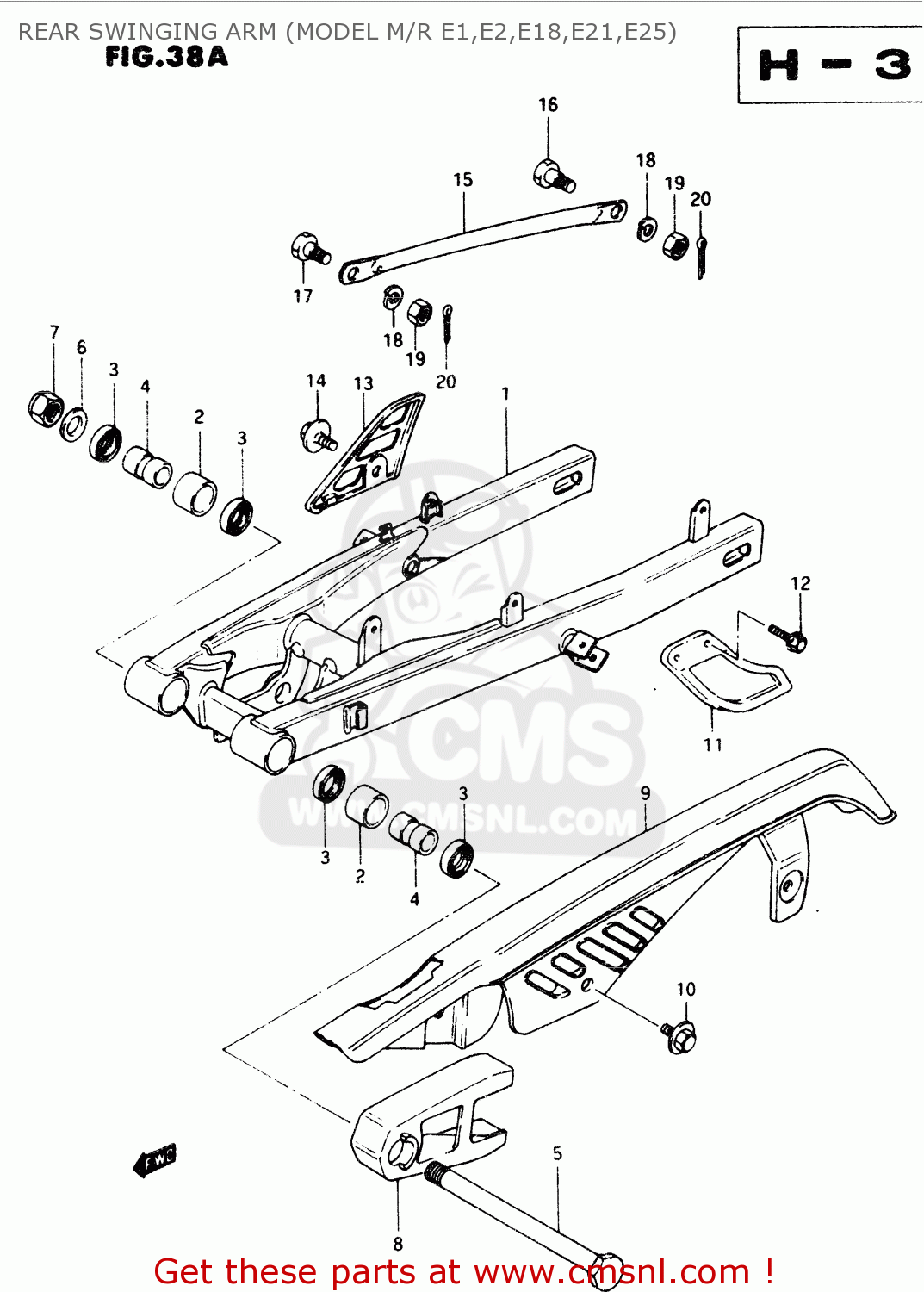

Rear swinging arm (model m/r e1,e2,e18,e21,e25) diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

REAR SWINGING ARM (MODEL M/R E1,E2,E18,E21,E25) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR SWINGING ARM (MODEL M/R E1,E2,E18,E21,E25) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
REAR SWINGING ARM (MODEL M/R E1,E2,E18,E21,E25) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
610001366113L
ref: 1
SWINGING ARM ASSY, REAR (SILVER)
610001366113L
€ 334.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928520005
ref: 3
OIL SEAL
0928520005
€ 5.00
4
6125113700
ref: 4
SPACER,RR SWINGING ARM PIVOT
6125113700
€ 19.50
5
6121113700
ref: 5
SHAFT,RR
6121113700
€ 14.00
6-1
0832211148
ref: 6-1
MODEL M
WASHER
0832211148
€ 2.00
6-2
0832201143
ref: 6-2
MODEL R
WASHER
0832201143
€ 2.00
7
0831921148
ref: 7
NUT 14MM
0831921148
€ 3.00
8
6127313610
ref: 8
BUFFER,CHAIN TOUCH DEFENCE
6127313610
€ 20.50
9
6131113610291
ref: 9
CASE,CHAIN
6131113610291
€ 29.50
10
0911606096
ref: 10
BOLT(6X10)
0911606096
€ 2.00
11-1
6134105250
ref: 11-1
E1,E2,E21
GUIDE,CHAIN
6134105250
€ 13.00
11-2
6134113710
ref: 11-2
E18,E25
GUIDE,CHAIN
6134113710
€ 14.00
12-1
0151706164
ref: 12-1
MODEL M
BOLT
€ 2.50
12-2
0155006163
ref: 12-2
MODEL R
BOLT
0155006163
€ 2.50
13-1
6139113610291
ref: 13-1
MODEL M
GUARD, FOOT (BLACK)
6139113610291
€ 12.00
13-2
6139113610
ref: 13-2
MODEL R
GUARD, FOOT (BLACK)
6139113610
€ 12.00
14
0911606096
ref: 14
BOLT(6X10)
0911606096
€ 2.00
15
643114870013L
ref: 15
TORQUE LINK,RR
643114870013L
€ 11.50
16
0911108013
ref: 16
BOLT(8X26.5)
0911108013
€ 3.00
17
0911108015
ref: 17
BOLT(8X22)
0911108015
€ 3.00
18-1
0832121088
ref: 18-1
MODEL M
LOCK WASHER
0832121088
€ 2.00
18-2
0832101083
ref: 18-2
MODEL R
LOCK WASHER
0832101083
€ 2.50
19
0914008008
ref: 19
NUT
0914008008
€ 1.50
20
0411120208
ref: 20
PIN 20X20
0411120208
€ 1.50
