FUEL COCK

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

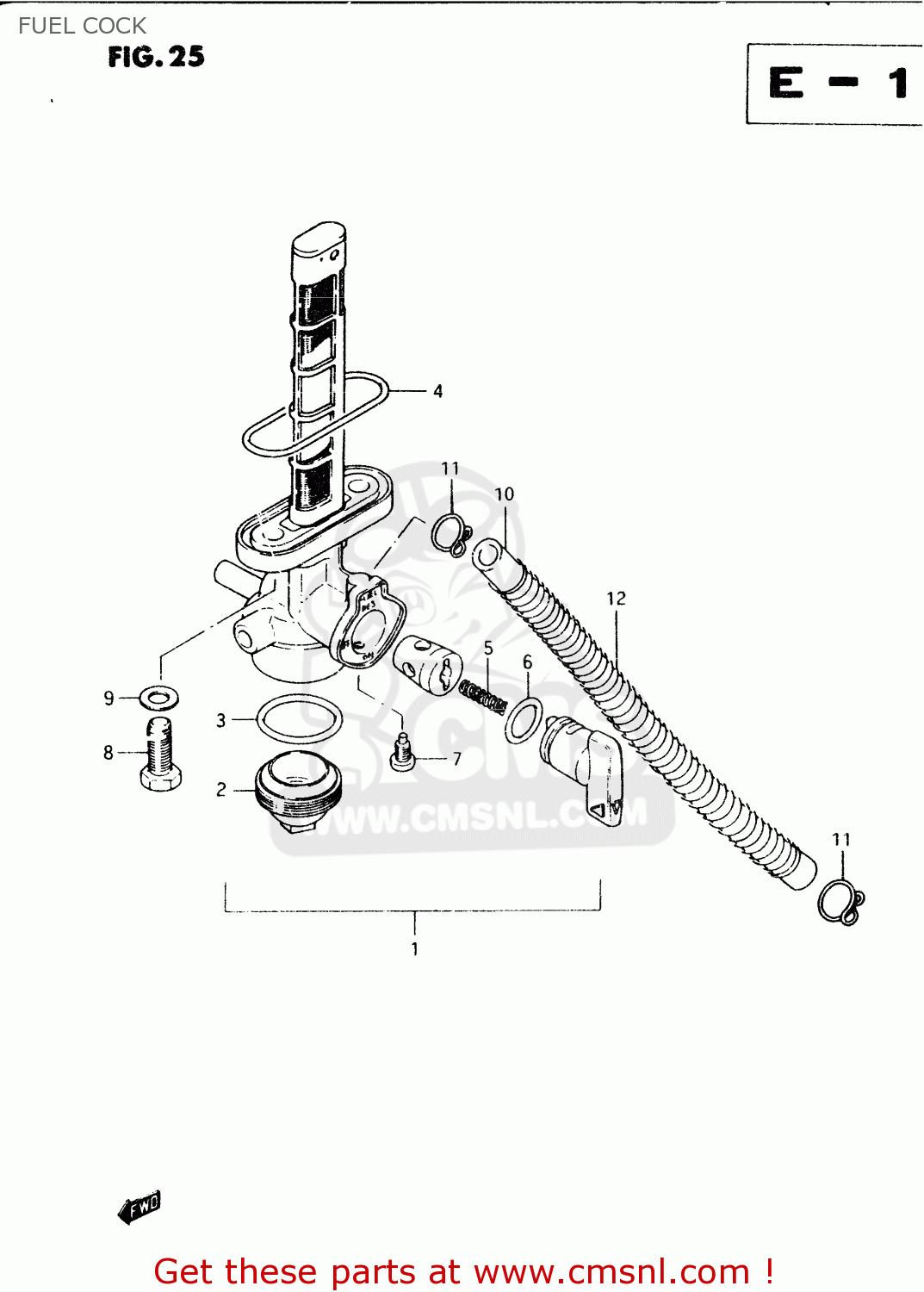

Fuel cock diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

prices are in EUR

ref

part #

description

quantity

4430013610
ref: 1

COCK ASSY, FUEL

€ 51.00

4434728071
ref: 2

CUP,STRAINER

€ 7.50

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

4435732470
ref: 5

SPRING

€ 2.00

4435332470
ref: 6

O-RING

€ 7.50

4434341370
ref: 7

SCREW

€ 2.00

0912806006
ref: 8

BOLT(6X20)

€ 2.00

0916806026
ref: 9

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

10-1

0935250823300
ref: 10-1
MODEL E/G/H/J

HOSE

€ 13.00

10-2

0935250823300
ref: 10-2
MODEL M/R

HOSE

€ 13.00

0940108401
ref: 11

CLIP

€ 1.50

0944010025
ref: 12

SPRING

€ 5.00
