CUSHION LEVER

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

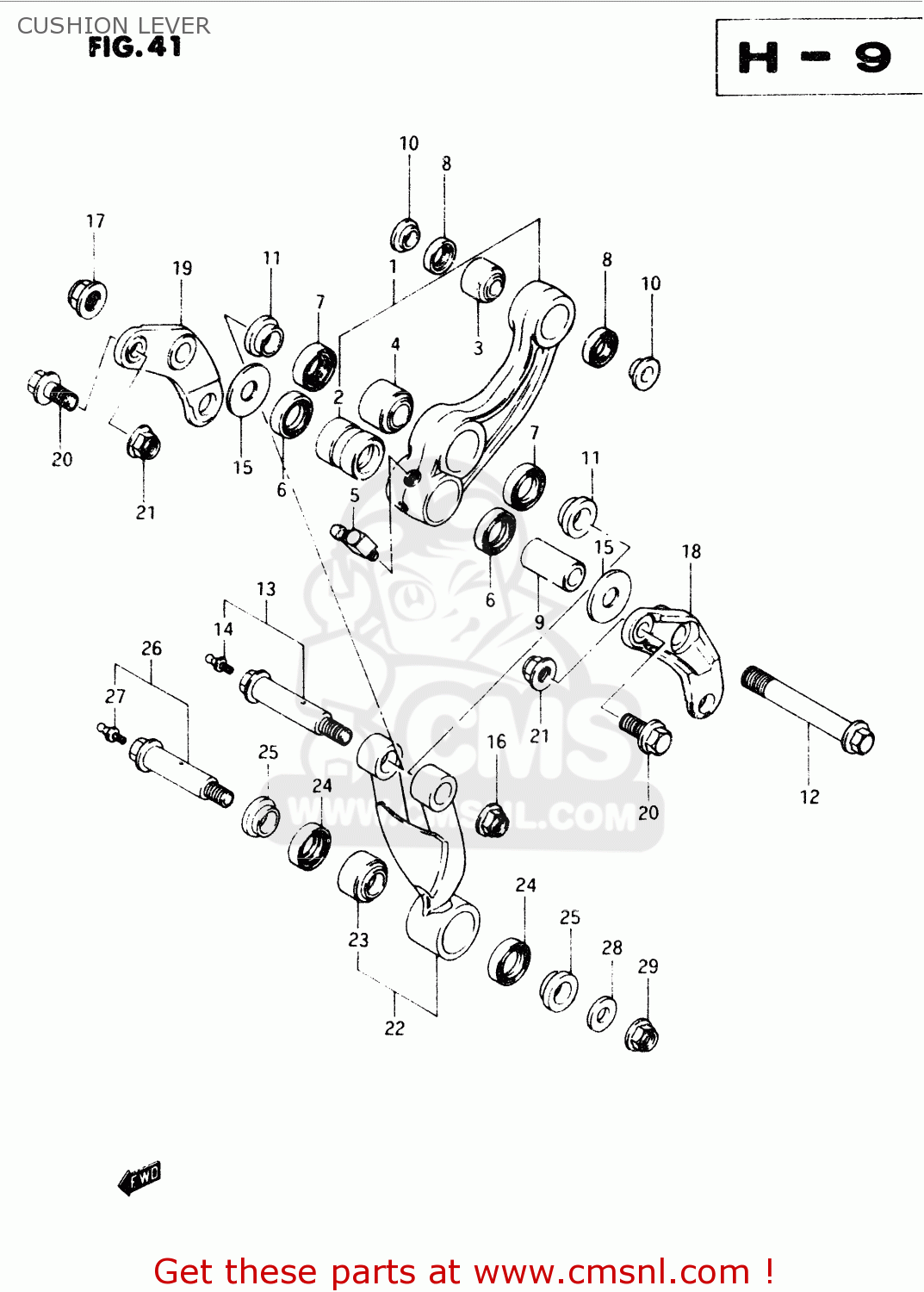

Cushion lever diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

CUSHION LEVER TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
CUSHION LEVER TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
CUSHION LEVER TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
6260013842
ref: 1
LEVER SET, CUSHION
6260013842
€ 198.00
2
6268213700
ref: 2
BUSHING,LEVER(20X26X26)
6268213700
€ 12.50
3
0926910003
ref: 3
BEARING(10X24X15)
0926910003
€ 31.00
4
0926915003
ref: 4
BEARING(15X29X18)
0926915003
€ 41.50
5
0950006001
ref: 5
NIPPLE
0950006001
€ 6.00
6
6268313700
ref: 6
SEAL,RR CUSHION FR DUST
6268313700
€ 4.50
7
6268313620
ref: 7
DUST SEAL,CTR
6268313620
€ 6.00
8
6268343400
ref: 8
DUST SEAL,RR CUSHION LEVER RR
6268343400
€ 4.00
9
6268413701
ref: 9
<-62684-13700
SPACER,RR CUSHION LEVER FR
6268413701
€ 18.50
10
6268443401
ref: 10
SPACER
6268443401
€ 7.00
11
6268413612
ref: 11
SPACER
6268413612
€ 12.00
12
6231313620
ref: 12
BOLT,RR CUSHION LEVER FR
6231313620
€ 7.50
13
6230013810
ref: 13
BOLT SET,CUSHION LEVER CTR
6230013810
€ 13.00
14
0835111009
ref: 14
NIPPLE
0835111009
€ 32.00
15
0916012064
ref: 15
WASHER, FRONT
0916012064
€ 2.50
16
0831931107
ref: 16
NUT
0831931107
€ 3.00
17
0831931128
ref: 17
NUT 12MM
0831931128
€ 4.00
18
6269113700
ref: 18
HOLDER,RR CUSHION LEVER,L
€ 36.00
19
6269213700
ref: 19
HOLDER,RR CUSHION LEVER,R
€ 35.00
20
0910310037
ref: 20
BOLT(10X25)
0910310037
€ 4.00
21
0831931107
ref: 21
NUT
0831931107
€ 3.00
22-1
6260013851
ref: 22-1
MODEL E/G/H/J/M
ROD SET,LEVER
6260013851
€ 76.00
22-2
6260113830
ref: 22-2
MODEL R
ROD SET, CUSHION
€ 76.00
23
0926915003
ref: 23
BEARING(15X29X18)
0926915003
€ 41.50
24
6268313620
ref: 24
DUST SEAL,CTR
6268313620
€ 6.00
25
6268413612
ref: 25
SPACER
6268413612
€ 12.00
26
6230013820
ref: 26
BOLT SET,CUSHION ROD LWR
6230013820
€ 14.00
27
0835111009
ref: 27
NIPPLE
0835111009
€ 32.00
28
0916010079
ref: 28
WASHER(10.1X25X3.2)
0916010079
€ 3.00
29
0831931107
ref: 29
NUT
0831931107
€ 3.00
