TURN SIGNAL LAMP (E22)

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

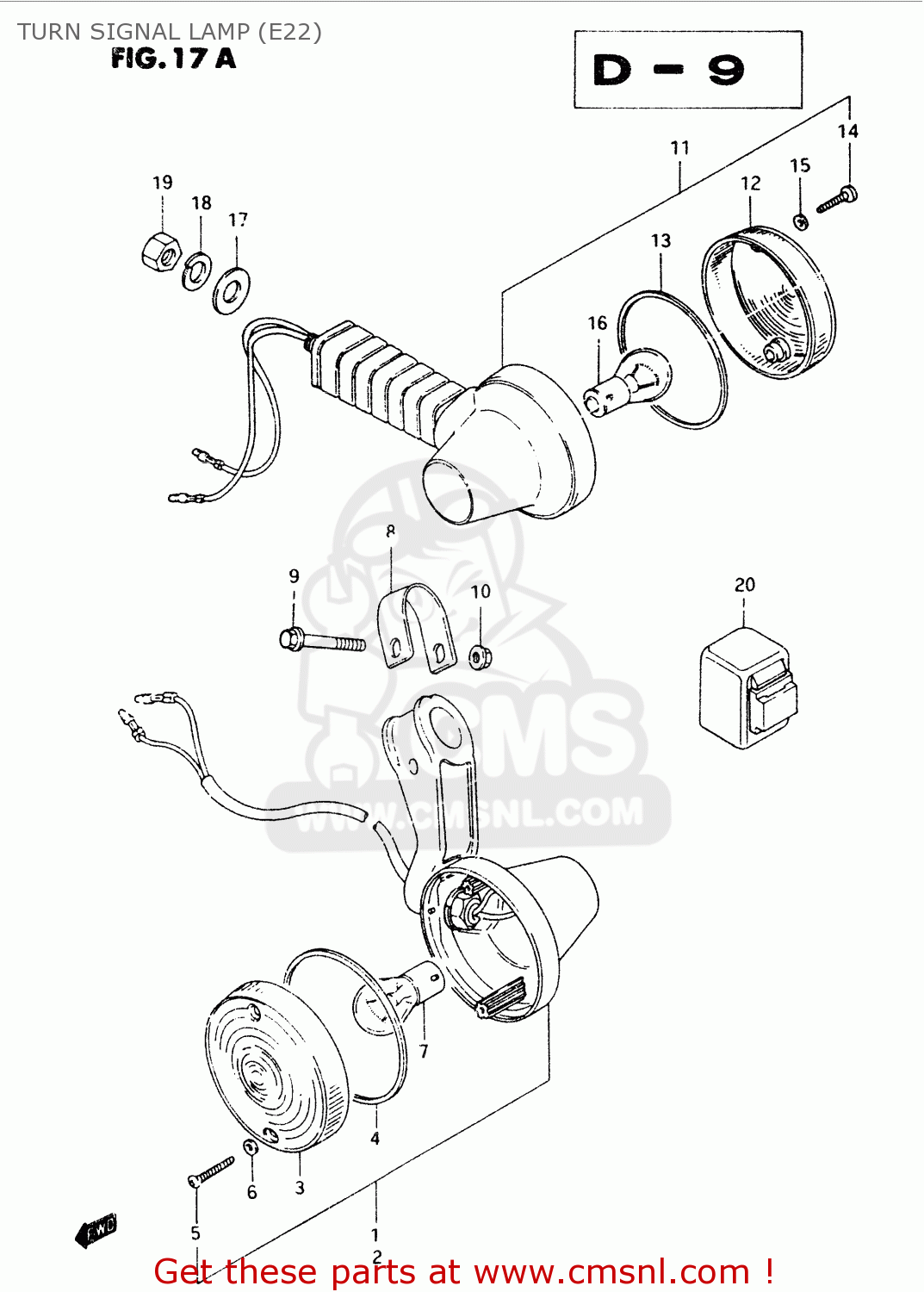

Turn signal lamp (e22) diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

TURN SIGNAL LAMP (E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
TURN SIGNAL LAMP (E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
TURN SIGNAL LAMP (E22) TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
3560113690
ref: 1
LAMP, FRONT TURN SIGNAL RH
3560113690
€ 39.50
2
3560213690
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
3560213690
€ 57.50
3
3561213690
ref: 3
LENS
3561213690
€ 6.00
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
3562513690
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112045
ref: 7
PURCHASE LOCALLY
BULB(12V21W)
0947112045
€ 5.00
8
3561605210
ref: 8
PLATE
3561605210
€ 5.50
9
0910305003
ref: 9
BOLT 5X42
0910305003
€ 2.50
10-1
0831616055
ref: 10-1
MODEL M
NUT ,5MM
€ 2.00
10-2
0831610053
ref: 10-2
MODEL R
NUT
0831610053
€ 2.50
11-1
3560313692
ref: 11-1
MODEL M
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
11-2
3560313A60
ref: 11-2
MODEL R
LAMP ASSY,FRONT TURNSIGNAL
€ 0.00
12
3561213690
ref: 12
LENS
3561213690
€ 6.00
13
3561328620
ref: 13
GASKET (NAS)
3561328620
€ 7.00
14
3562513690
ref: 14
SCREW
€ 1.50
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16
0947112045
ref: 16
PURCHASE LOCALLY
BULB(12V21W)
0947112045
€ 5.00
17
0916012048
ref: 17
WASHER (12.5X26X1.6)
0916012048
€ 2.00
18
0832121125
ref: 18
WASHER
€ 2.50
19-1
0831012125
ref: 19-1
MODEL M
NUT 12MM
€ 2.50
19-2
0831000123
ref: 19-2
MODEL R
NUT
€ 2.50
20
3861045091
ref: 20
RELAY ASSY,TUR
€ 67.50
