HEADLAMP

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

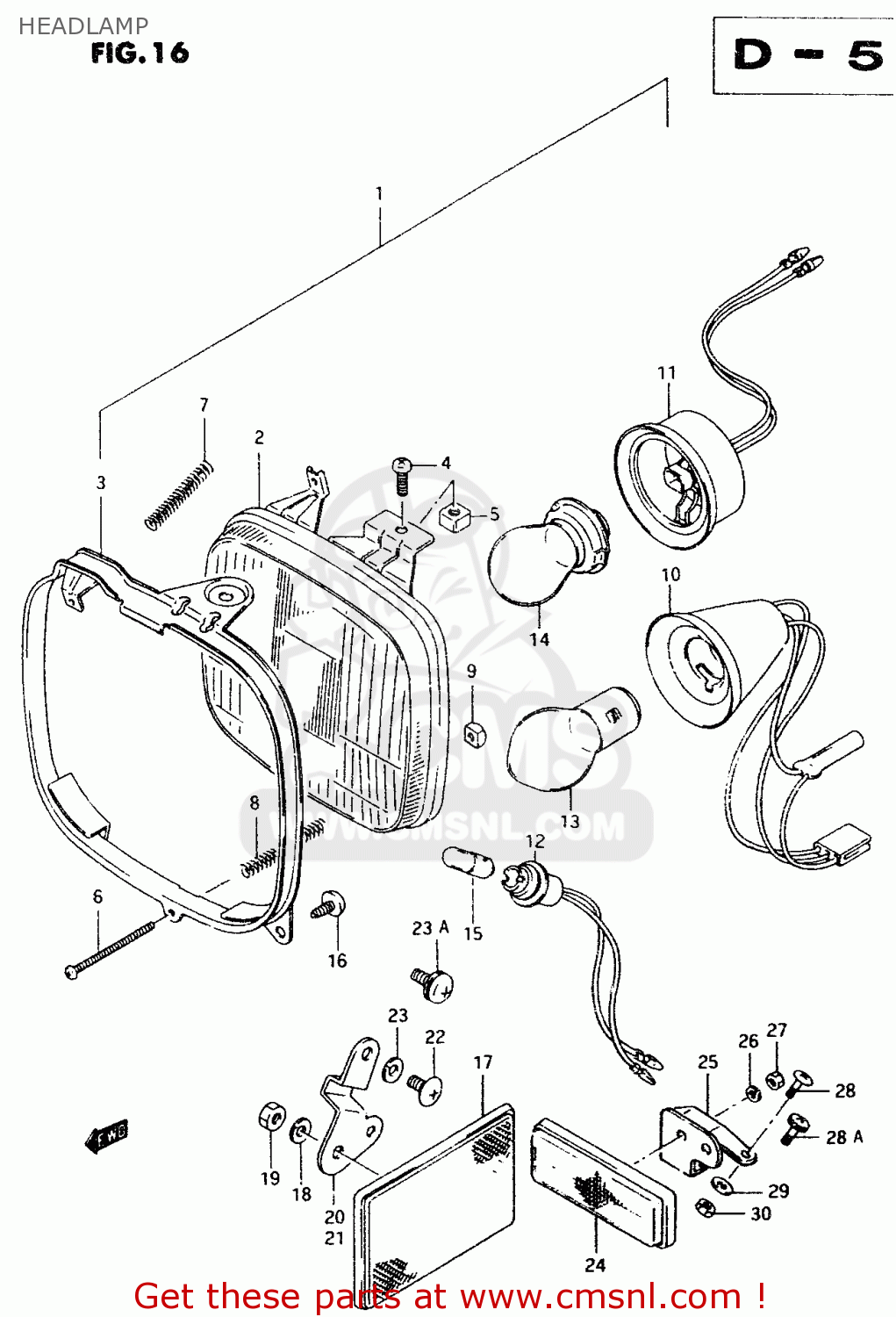

Headlamp diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

HEADLAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
HEADLAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
HEADLAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3510013691999
ref: 1-1
E1,E2,E16,E17,E18,E2
HEADLAMP ASSY
3510013691999
€ 189.00
1-2
3510013680999
ref: 1-2
E25
HEADLAMP ASSY
€ 154.00
2-1
3512113690
ref: 2-1
E1,E2,E16,E17,E18,E2
LAMP UNIT
€ 80.50
2-2
3512113680
ref: 2-2
E25
UNIT
€ 88.00
3
3513013610
ref: 3
RING,MOUNTING
€ 30.00
4
0211205126
ref: 4
SCREW 5X12
€ 1.50
5
3513545900
ref: 5
NUT
3513545900
€ 2.50
6
3515131300
ref: 6
SCREW,HEADLAMP ADJUST
3515131300
€ 3.00
7
3515413610
ref: 7
SPRING
3515413610
€ 2.50
8
3515431300
ref: 8
SPRING
3515431300
€ 2.00
9
3513545600
ref: 9
NUT
3513545600
€ 3.00
10
3517113690
ref: 10
E1,E2,E16,E17,E18,E2
SOCKET
3517113690
€ 18.50
11
3517102180
ref: 11
E25
SOCKET,HEAD LAMP
3517102180
€ 15.00
12
3611845900
ref: 12
E1,E2,E16,E17,E18,E2
SOCKET,PARKING
3611845900
€ 13.00
13
0947112020
ref: 13
E1,E2,E16,E17,E18,E2
BULB(12V35/35W)
0947112020
€ 108.50
14
0947112090
ref: 14
E25,PURCHASE LOCALLY
BULB(12V15W)
0947112090
€ 4.50
15
0947112063
ref: 15
E1,E2,E16,E17,E18,E2
BULB(12V4W)
0947112063
€ 6.00
16-1
0321205165
ref: 16-1
MODEL E/G/H/J/M
SCREW
€ 7.50
16-2
0321205163
ref: 16-2
MODEL R
SCREW
0321205163
€ 7.50
17-1
3595026941
ref: 17-1
E21,MODEL G/H/J E1
REFLEX REFLECTOR
3595026941
€ 18.50
17-2
3595014A50
ref: 17-2
MODEL M E17
REFLEX REFLECTOR, REAR SIDE
€ 0.00
18-1
0832121055
ref: 18-1
E21,MODEL G/H/J E1 M
WASHER,LOCK
0832121055
€ 3.00
18-2
0832101053
ref: 18-2
MODEL R E17
LOCK,WASHER
€ 3.00
19-1
0831012055
ref: 19-1
E21,MODEL G/H/J E1 M
NUT ,5MM
0831012055
€ 2.50
19-2
0831000053
ref: 19-2
MODEL R E17
NUT
€ 2.50
20-1
3595626900
ref: 20-1
MODEL G/H/J E1,E21 M
BRACKET, RH
€ 5.50
20-2
3595613600
ref: 20-2
MODEL M E21
BRACKET, RH
€ 3.50
21-1
3595726900
ref: 21-1
MODEL G/H/J E1,E21 M
BRACKET, LH
€ 9.00
21-2
3595713600
ref: 21-2
MODEL M E21
BRACKET,FR SIDE REFLECTOR,L
€ 3.50
22
0214205104
ref: 22
E21,MODEL G/H/J E1 M
SCREW 5X10
0214205104
€ 2.50
23
0832121055
ref: 23
E21,MODEL G/H/J E1 M
WASHER,LOCK
0832121055
€ 3.00
23A
0211235103
ref: 23A
MODEL R E17
SCREW
0211235103
€ 2.00
24
3596013700
ref: 24
MODEL M/R E17
REFLECTOR, FRONT
€ 14.50
25
3596613700
ref: 25
MODEL M/R E17
BRACKET, FRONT REFLECTOR
€ 6.50
26
0832121057
ref: 26
MODEL M E17
LOCK WASHER
0832121057
€ 2.00
27-1
0831000057
ref: 27-1
MODEL M E17
NUT
0831000057
€ 2.50
27-2
0831000053
ref: 27-2
MODEL R E17
NUT
€ 2.50
28
0211205125
ref: 28
MODEL M E17
SCREW
0211205125
€ 1.50
28A
0211235103
ref: 28A
MODEL R E17
SCREW
0211235103
€ 2.00
29
0916005016
ref: 29
MODEL M/R E17
WASHER
0916005016
€ 1.50
30
0831000053
ref: 30
MODEL M/R E17
NUT
€ 2.50
