RIGHT HANDLE SWITCH

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

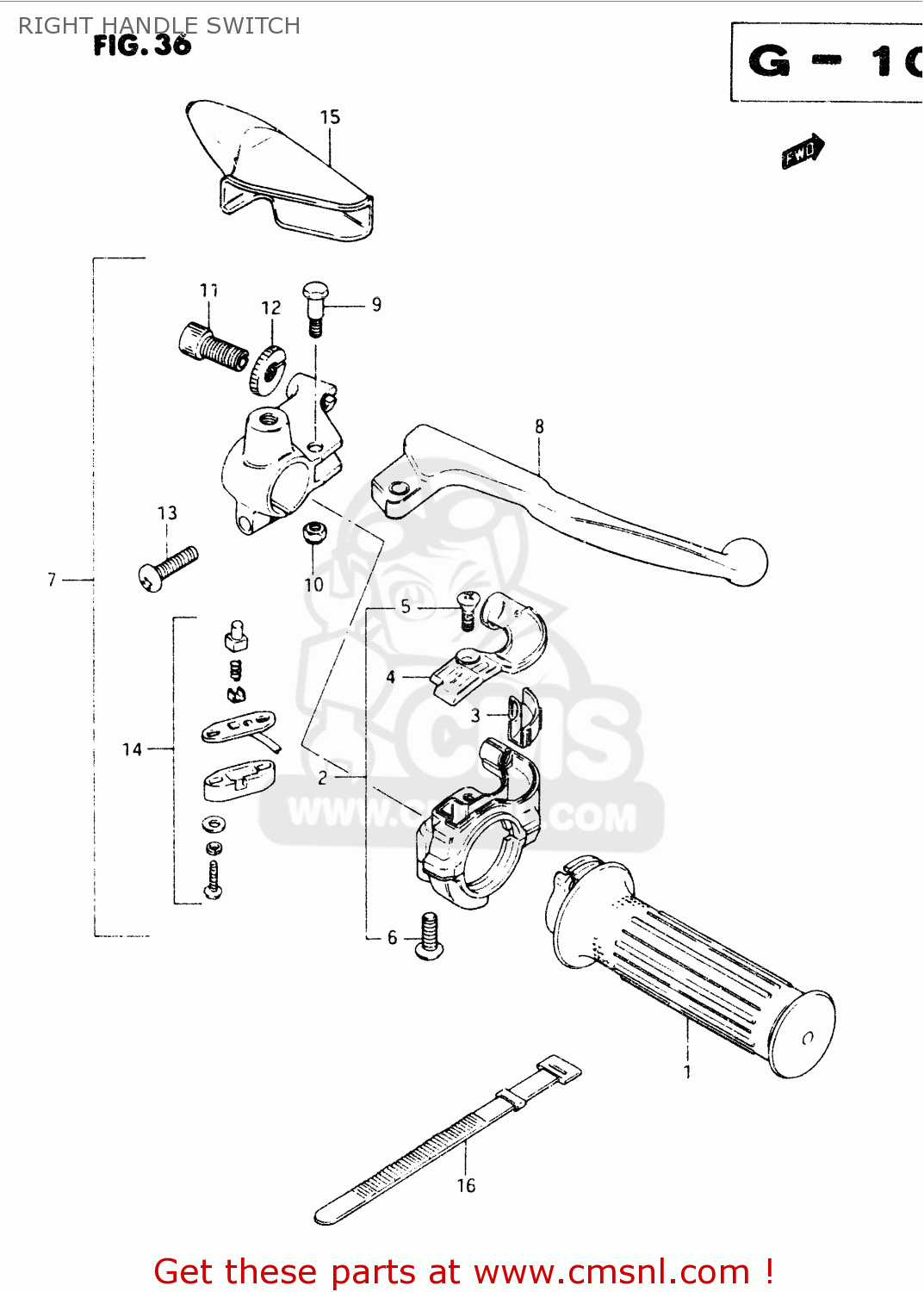

Right handle switch diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

RIGHT HANDLE SWITCH TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

RIGHT HANDLE SWITCH TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

prices are in EUR

ref

part #

description

quantity

1

5711013600
ref: 1

GRIP,THROTTLE

€ 13.00

2

5710013601
ref: 2

CASE ASSY,THROTTLE

€ 34.00

3

5712213600
ref: 3

GUIDE PIECE,THROTTLE

€ 7.50

4

5712913601
ref: 4

COVER,THROTTLE CASE

€ 7.00

5

0213204105
ref: 5

SCREW 4X10

€ 2.50

6

0211205167
ref: 6

SCREW

€ 2.50

7

5730013600
ref: 7

BRAKE LEVER & SWITCH ASSY

€ 45.00

8

5742048700
ref: 8

LEVER,BRAKE

€ 29.50

9

5743111013
ref: 9

BOLT,LEVER PIVOT

€ 6.00

10

0831921068
ref: 10

NUT 6MM

€ 2.00

11

5744111010
ref: 11

ADJUSTER,CABLE

€ 8.00

12

5744211010
ref: 12

NUT,CABLE ADJUSTER

€ 4.00

13

0211206207
ref: 13

SCREW

€ 2.00

14

5746010400
ref: 14

SWITCH ASSY,STOP

€ 18.50

15

5734125601
ref: 15

DUST SEAL,BRAKE/CLUTCH

€ 10.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
