TURN SIGNAL LAMP

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

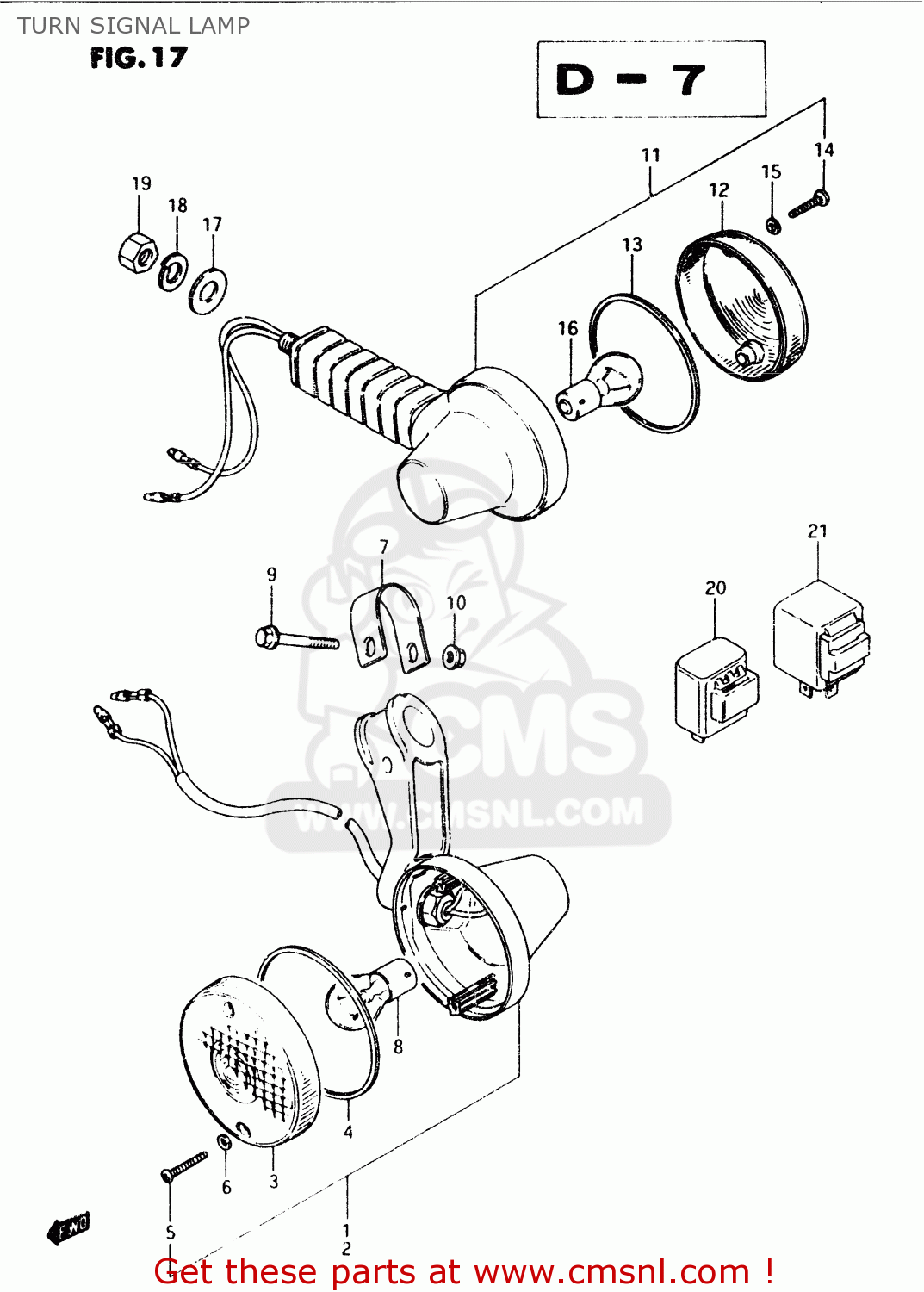

Turn signal lamp diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

TURN SIGNAL LAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
TURN SIGNAL LAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
TURN SIGNAL LAMP TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3560105230999
ref: 1-1
E1,MODEL E E2
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 52.50
1-2
3560113670
ref: 1-2
MODEL G/H/J/M/R E2 M
LAMP, FRONT TURN SIGNAL RH
3560113670
€ 52.50
1-3
3560105230999
ref: 1-3
E21,E25
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 52.50
1-4
3560113670999
ref: 1-4
E16,E18
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560113670999
€ 52.50
2
3560213670999
ref: 2
<-35602-05230-999 <-
LAMP ASSY,FR TURN SIGNAL,L
3560213670999
€ 52.50
3-1
3561248530
ref: 3-1
E1,MODEL E E2
LENS
3561248530
€ 7.50
3-2
3561201A70
ref: 3-2
MODEL G/H/J/M/R E2
LENS,FR TURNSIGNAL LAMP
3561201A70
€ 7.50
3-3
3561248530
ref: 3-3
E16,E18,E21,E25
LENS
3561248530
€ 7.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
0321104256
ref: 5
SCREW ,4X25
0321104256
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3561605210
ref: 7
PLATE
3561605210
€ 5.50
8
0947112045
ref: 8
PURCHASE LOCALLY
BULB(12V21W)
0947112045
€ 5.00
9
0910305003
ref: 9
BOLT 5X42
0910305003
€ 2.50
10-1
0831616055
ref: 10-1
MODEL E/G/H/J/M
NUT ,5MM
€ 2.00
10-2
0831610053
ref: 10-2
MODEL R
NUT
0831610053
€ 2.50
11-1
3560348781999
ref: 11-1
MODEL E E2
LAMP ASSY, REAR TURNSIGNAL
3560348781999
€ 53.50
11-2
3560313670
ref: 11-2
MODEL G/H/J/M/R E2 M
LAMP,RR TURN
3560313670
€ 56.50
11-3
3560348781999
ref: 11-3
E16,E18
LAMP ASSY, REAR TURNSIGNAL
3560348781999
€ 53.50
11-4
3560348720
ref: 11-4
E1,E21,E25
LAMP ASSY, REAR TURN SIGNAL
3560348720
€ 54.00
12-1
3561248510
ref: 12-1
E1,MODEL E E2
LENS
3561248510
€ 10.50
12-2
3565201A70
ref: 12-2
MODEL G/H/J/M/R E2 M
LENS,RR TURNSIGNAL LAMP
3565201A70
€ 10.50
12-3
3561248510
ref: 12-3
E16,E18,E21,E25
LENS
3561248510
€ 10.50
13
3561328620
ref: 13
GASKET (NAS)
3561328620
€ 7.00
14-1
0321104258
ref: 14-1
MODEL E/G/H/J/M
SCREW TAPP.
0321104258
€ 2.00
14-2
0321104253
ref: 14-2
MODEL R
SCREW
0321104253
€ 2.00
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16-1
0947112045
ref: 16-1
MODEL E/G
BULB(12V21W)
0947112045
€ 5.00
16-2
0947112045
ref: 16-2
MODEL H/J/M/R E2
BULB(12V21W)
0947112045
€ 5.00
16-3
0947112056
ref: 16-3
E1,MODEL H/J/M/R E16
BULB 12V 21W
0947112056
€ 5.00
17
0916012048
ref: 17
WASHER (12.5X26X1.6)
0916012048
€ 2.00
18
0832121125
ref: 18
WASHER
€ 2.50
19-1
0831012128
ref: 19-1
MODEL E/G/H/J/M
NUT
0831012128
€ 3.00
19-2
0831000123
ref: 19-2
MODEL R
NUT
€ 2.50
20-1
3861031310
ref: 20-1
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
20-2
3861031310
ref: 20-2
MODEL J/M E2
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
21
3861045091
ref: 21
MODEL G/H E2
RELAY ASSY,TUR
€ 67.50
