WIRING HARNESS

TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

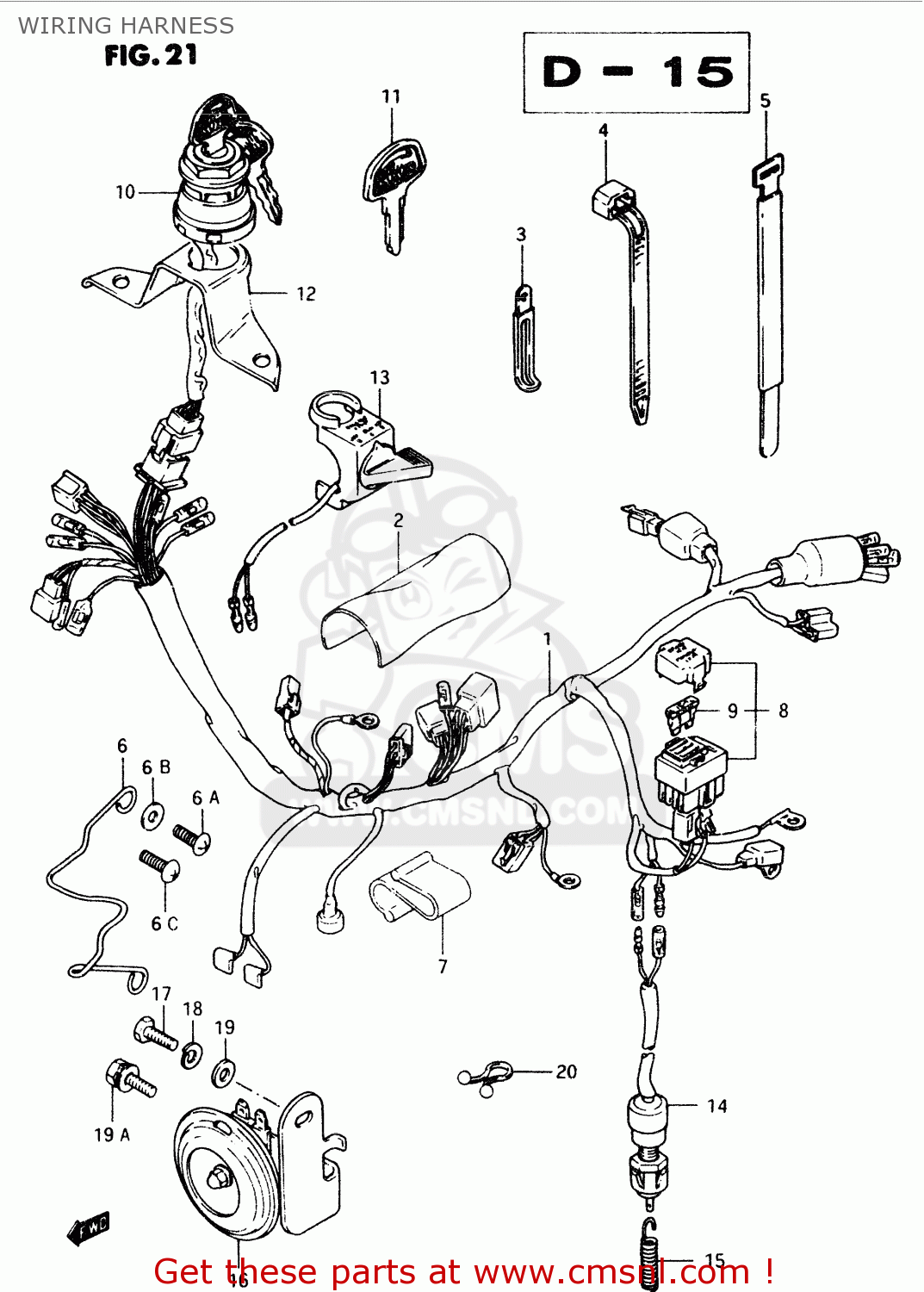

Wiring harness diagram TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)

WIRING HARNESS TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
WIRING HARNESS TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
WIRING HARNESS TS50XK 1994 (R) (E01 E02 E16 E17 E18 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3661013721
ref: 1-1
<-36610-13720
HARNESS,WIRING
€ 109.00
1-2
3661013691
ref: 1-2
E25
WIRING HARNESS
€ 91.00
2-1
3661813601
ref: 2-1
MODEL E/G/H/J/M
COVER, HARNESS
€ 12.00
2-2
3661844B01
ref: 2-2
MODEL R
BOOT,WIRING HARNESS
€ 12.00
3-1
0940406418
ref: 3-1
CLAMP
€ 3.00
3-2
0940406404
ref: 3-2
CLAMP
0940406404
€ 3.00
3-3
0940406419
ref: 3-3
CLAMP
€ 2.50
3-4
0940410405
ref: 3-4
CLAMP
€ 2.00
4-1
0940705403
ref: 4-1
CLAMP,L:88
0940705403
€ 1.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
0940714403
€ 2.50
4-3
0940718402
ref: 4-3
CLAMP(L:165)
0940718402
€ 2.50
5
0940725301
ref: 5
CLAMP(L:250)
0940725301
€ 4.50
6
3661913601
ref: 6
<-36619-13600
GUIDE,WIRING HARNESS
€ 6.50
6A
0211206125
ref: 6A
MODEL E/G/H/J/M
SCREW
0211206125
€ 1.50
6B
0832221064
ref: 6B
MODEL E/G/H/J/M
WASHER
0832221064
€ 2.00
6C
0214206123
ref: 6C
MODEL R
SCREW 6X12
0214206123
€ 2.00
7
3661913610
ref: 7
HOLDER, WIRING HARNESS
3661913610
€ 2.50
8
3674004701
ref: 8
BOX ASSY,FUSE
3674004701
€ 16.00
9
0948115101
ref: 9
FUSE(15A)
0948115101
€ 1.50
10
3711013611
ref: 10
SWITCH ASSY,IGNITION
3711013611
€ 63.50
11
3714519710
ref: 11
OPT
KEY,BLANK
3714519710
€ 13.00
12
3711513610
ref: 12
BRACKET,IGNITION SWITCH
3711513610
€ 7.50
13
3783038200
ref: 13
SWITCH ASSY,ENGINE STOP
3783038200
€ 72.00
14-1
3774048071
ref: 14-1
MODEL E/G/H/J
SWITCH ASSY,STOP LAMP
3774048071
€ 22.00
14-2
3774034B00
ref: 14-2
MODEL M/R
SWITCH ASSY,STOP LAMP
3774034B00
€ 15.00
15
0944306042
ref: 15
SPRING
0944306042
€ 3.00
16-1
3850013670
ref: 16-1
HORN ASSY
3850013670
€ 20.50
16-2
3850013690
ref: 16-2
E17,E18,E22
HORN ASSY
€ 51.00
17
0110706125
ref: 17
MODEL E/G/H/J/M
BOLT
€ 2.00
18
0832121064
ref: 18
MODEL E/G/H/J/M
WASHER,LOCK
0832121064
€ 2.00
19
0832221064
ref: 19
MODEL E/G/H/J/M
WASHER
0832221064
€ 2.00
19A
0158006123
ref: 19A
MODEL R
BOLT
€ 2.00
20
0940800020
ref: 20
CLIP
€ 2.00
