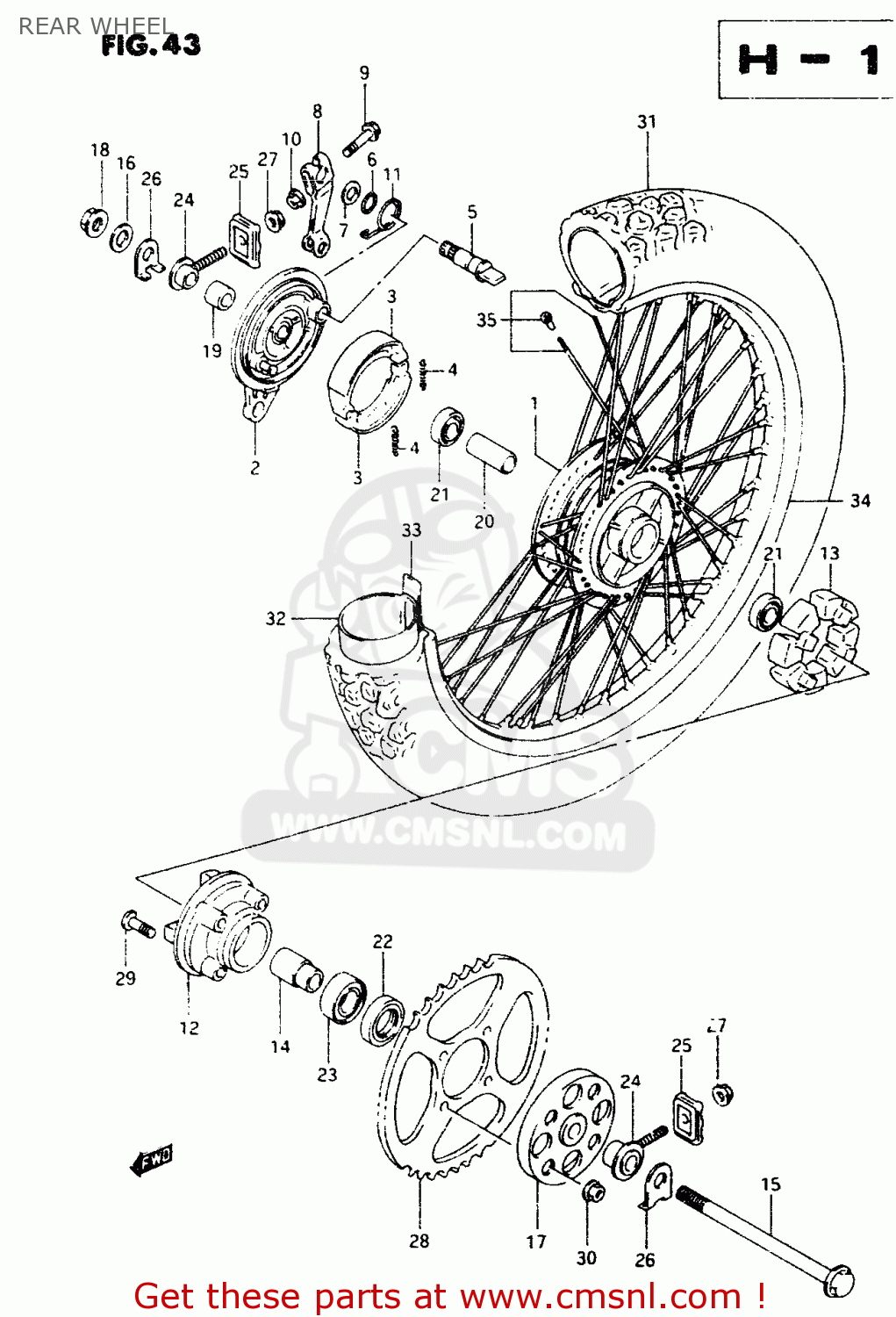

REAR WHEEL

ref

part #

description

quantity

1-1

6411013600
ref: 1-1
MODEL E

HUB,RR WHEEL

€ 98.00

1-2

6411013700
ref: 1-2
MODEL E/G/H/J/M/R

REAR HUB DRUM

€ 121.00

2

6421013600
ref: 2

PANEL,RR HUB

€ 80.50

3-1

5441004700
ref: 3-1
MODEL E ->54410-0470

SHOE, BRAKE

€ 25.50

3-2

5441004701
ref: 3-2
MODEL E/G/H/J/M

SHOE BRAKE

€ 25.50

3-3

5441013600
ref: 3-3
MODEL R

SHOE,RR BRAKE

€ 25.50

3-4

5441013600
ref: 3-4
MODEL M/R E17,E22

SHOE,RR BRAKE

€ 25.50

4-1

0944307001
ref: 4-1
MODEL E FOR 54410-04

SPRING(L:34)

€ 2.50

4-2

0944307025
ref: 4-2
MODEL E/G/H/J/M FOR

SPRING(L:35.8)

€ 2.50

4-3

0944307025
ref: 4-3
MODEL R

SPRING(L:35.8)

€ 2.50

5

6444104701
ref: 5

CAM,RR BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445113601
ref: 8

LEVER,RR BRAKE CAM

€ 21.50

9-1

0151706358
ref: 9-1
MODEL E/G/H/J/M

BOLT 6X35

€ 2.50

9-2

0155006353
ref: 9-2
MODEL R

BOLT

€ 2.50

10-1

0915906017
ref: 10-1
MODEL E/G/H/J/M

NUT

€ 2.50

10-2

0831610063
ref: 10-2
MODEL R

NUT

€ 2.50

11

0944830007
ref: 11

SPRING

€ 19.00

12

6461104700
ref: 12

DRUM,RR SPROCKET

€ 48.00

13

6465104701
ref: 13

ABSORBER,SHOCK

€ 7.50

14

6473343000
ref: 14

RETAINER,RR SPROCKET DRUM

€ 7.00

15

6471104701
ref: 15

AXLE,REAR

€ 24.00

16-1

0832211128
ref: 16-1
MODEL E/G/H/J/M

WASHER

€ 2.00

16-2

0832201123
ref: 16-2
MODEL R

WASHER

€ 2.00

17

6475013600
ref: 17

SPACER

€ 11.50

18-1

0831921128
ref: 18-1
MODEL E/G/H/J/M

NUT 12MM

€ 4.00

18-2

0831921123
ref: 18-2
MODEL R

U NUT

€ 3.50

19

0918012093
ref: 19

SPACER(12.1X22X20)

€ 6.00

20

0918012094
ref: 20

SPACER(12.1X17.3X62)

€ 7.00

21

0814362017
ref: 21

BEARING

€ 11.50

22

0928525001
ref: 22

SEAL OIL(25X40X6)

€ 12.50

23

0926217023
ref: 23

BEARING(17X40X12)

€ 14.00

24

6141013701
ref: 24

ADJUSTER,CHAIN

€ 9.00

25

6144113700
ref: 25

PLATE,CHAIN ADJUSTER GUIDE

€ 6.50

26

6471220900
ref: 26

WASHER,CHAIN ADJUSTER

€ 2.00

27

0831931087
ref: 27

NUT

€ 2.50

28-1

6451113620
ref: 28-1
E2

SPROCKET RR 51

€ 41.00

28-2

6451113650
ref: 28-2
E16,E17,E18,E22

SPROCKET, REAR (NT:54)

€ 69.50

28-3

6451113630
ref: 28-3
E1,E21

SPROCKET RR

€ 43.50

28-4

6451113642
ref: 28-4
E25

SPROCKET RR

€ 33.50

29-1

0911908078
ref: 29-1
MODEL E/G/H/J/M

BOLT

€ 5.00

29-2

0911908043
ref: 29-2
MODEL R

BOLT

€ 2.00

29-3

0911908078
ref: 29-3
MODEL M E22

BOLT

€ 5.00

29-4

0911908043
ref: 29-4
MODEL R E22

BOLT

€ 2.00

29-5

0911908081
ref: 29-5
E22

BOLT

€ 0.00

30

0831931087
ref: 30

NUT

€ 2.50

31

6510026510
ref: 31

TIRE 3.00-18 077-458MM

€ 180.50

32

5520011601
ref: 32

TUBE,INNER

€ 24.50

33

5526114010
ref: 33

PROTECTOR,WHEEL,INNER

€ 3.50

34-1

6531113600
ref: 34-1
MODEL E ->65311-4650

RIM, REAR WHEEL (1.60X18) (SPORK 28PCS)

€ 93.00

34-2

6531113620
ref: 34-2
MODEL E ->55311-1842

RIM, REAR WHEEL (1.60X18) (SPORK 36PCS)

€ 98.50

34-3

5531118420
ref: 34-3
MODEL R E1,E2 E16,E1

RIM,FR WHEEL

€ 98.50

34-4

6531113630
ref: 34-4
MODEL G/H/J/M MODEL

RIM,RR WHEEL(1.60X18)

€ 122.00

35-1

6532013600
ref: 35-1
MODEL E

SPOKE ASSY, REAR WHEEL (SPOKE 28PCS)

€ 26.00

35-2

6532013620
ref: 35-2
MODEL E/G/H/J/M/R

SPOKE SET,RR WHEEL

€ 55.00
