BATTERY

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

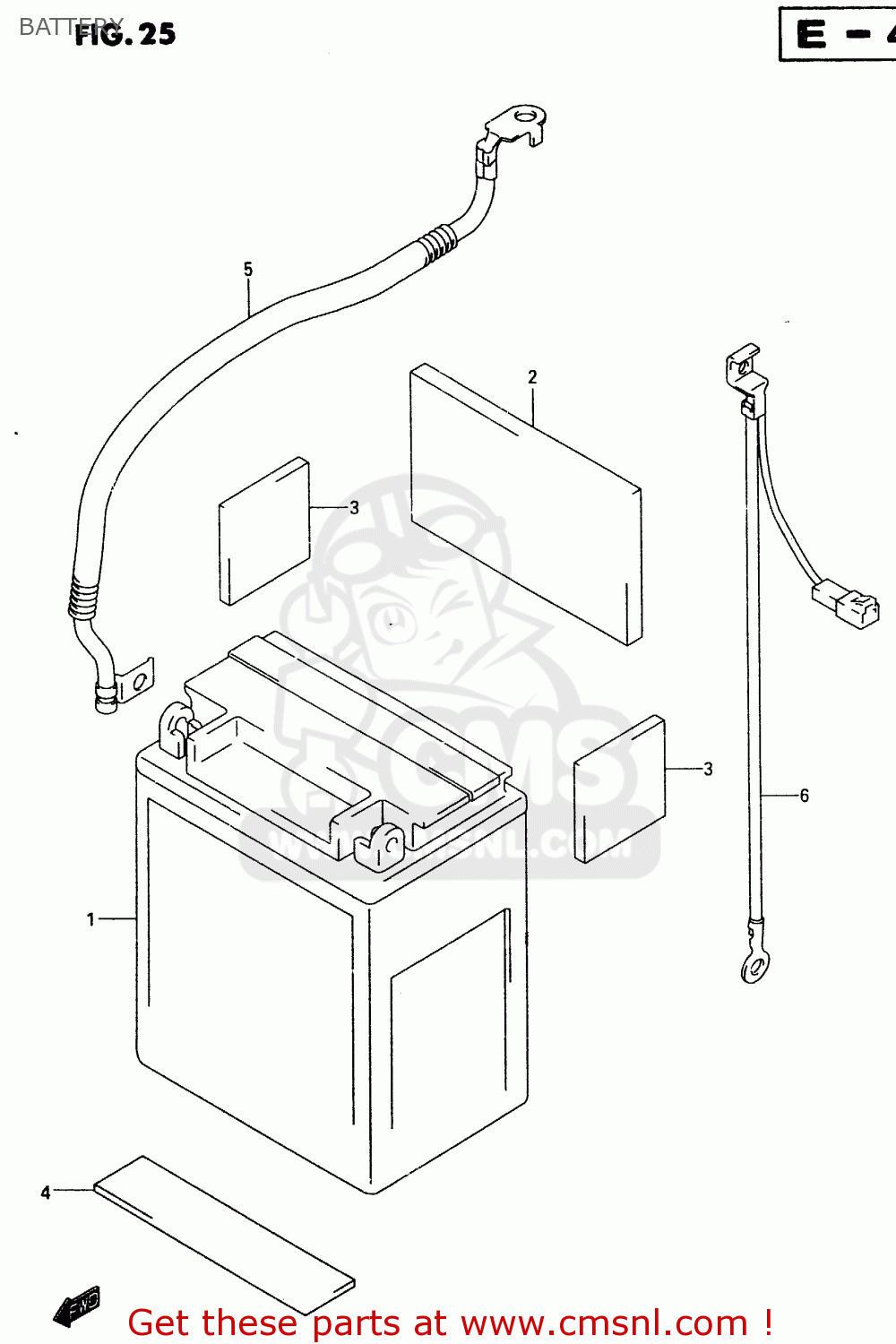

Battery diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3361038B50
ref: 1
FTH16-BS-1

BATTERY ASSEMBLY 12V14AH,F

€ 74.50

2

3365220C00
ref: 2

PROTECTOR(50X50X5)

€ 2.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3365219B00
ref: 4

CUSHION,BATTERY(80X27X3)

€ 4.50

5

3382010F00
ref: 5

WIRE,BATTERY PLUS LEAD

€ 30.00

6

3386010F00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 41.50
