CRANKCASE

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

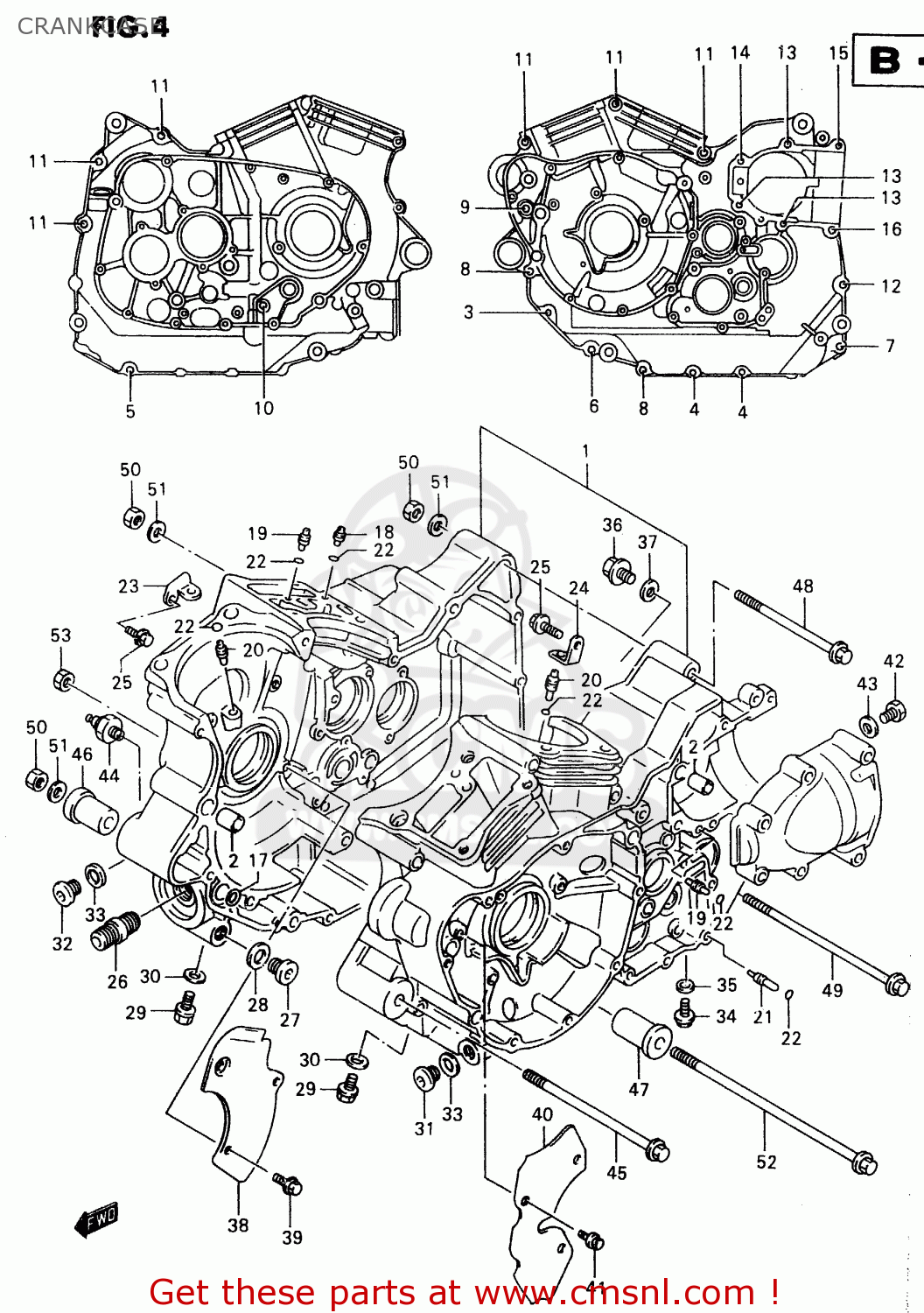

Crankcase diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CRANKCASE VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1130010870
ref: 1
CRANKCASE SET
1130010870
€ 2,774.50
2
0920611017
ref: 2
PIN(8.4X11X20)
0920611017
€ 6.50
3
0155006553
ref: 3
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
4
0155006653
ref: 4
BOLT
€ 2.50
5
0155006853
ref: 5
BOLT
€ 2.50
6
0155008553
ref: 6
BOLT
€ 3.00
7
0155008653
ref: 7
BOLT
€ 3.00
8
0155008703
ref: 8
BOLT (8X70)
€ 2.50
9
0155008903
ref: 9
BOLT
0155008903
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
0910308098
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
0910308164
€ 3.50
12
0155008803
ref: 12
BOLT (8X80)
€ 4.00
13
0155008403
ref: 13
BOLT
0155008403
€ 3.50
14
0155008503
ref: 14
BOLT
0155008503
€ 2.50
15
0155008553
ref: 15
BOLT
€ 3.00
16
0155008653
ref: 16
BOLT
€ 3.00
17
0928012009
ref: 17
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
18
0949344002
ref: 18
JET(2.2)
€ 12.00
19
0949328010
ref: 19
JET,AIR(14)
0949328010
€ 10.50
20
0949380009
ref: 20
JET,PISTON COOLING(0.8)
€ 14.00
21
0949324011
ref: 21
JET,MISSION OIL(1.4)
€ 9.00
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
0928004004
€ 2.00
23
1643838B00
ref: 23
PLATE,PISTON JET FR
€ 1.50
24
1643938B00
ref: 24
PLATE,PISTON JET RR
€ 2.00
25
0155006123
ref: 25
BOLT
0155006123
€ 2.50
26
1659106B00
ref: 26
UNION,OIL STAND
1659106B00
€ 6.00
27
0924816010
ref: 27
PLUG
0924816010
€ 4.50
28
0916816002
ref: 28
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
29
0155008123
ref: 29
BOLT
0155008123
€ 3.50
30
0916808015
ref: 30
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
31
0924814005
ref: 31
PLUG,14X12
0924814005
€ 5.00
32
0924714027
ref: 32
PLUG(14X11.5)
€ 2.00
33
0916814002
ref: 33
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
34
0155006123
ref: 34
BOLT
0155006123
€ 2.50
35
0916806024
ref: 35
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
36
0924712006
ref: 36
PLUG(12X10)
0924712006
€ 2.50
37
0916812002
ref: 37
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
38
1152138B01
ref: 38
PLATE,OIL SEPARATOR
€ 4.00
39
0912506110
ref: 39
BOLT(6X12)
0912506110
€ 2.50
40
1152210F00
ref: 40
PLATE,OIL SEPARATOR FR
€ 4.00
41
0154706123
ref: 41
BOLT
0154706123
€ 2.00
42
0924712100
ref: 42
PLUG, OIL DRAIN
€ 0.00
43
0916812002
ref: 43
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
44
3782033D00
ref: 44
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
45
0910310145
ref: 45
BOLT(10X205)
0910310145
€ 13.00
46
1162110F00
ref: 46
SPACER,ENG MTG
€ 17.00
47
1161020C00
ref: 47
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
48
0910310119
ref: 48
BOLT(10X140)
0910310119
€ 7.50
49
0910310278
ref: 49
BOLT(10X160)
0910310278
€ 9.50
50
0831931103
ref: 50
NUT
0831931103
€ 3.00
51
0832201103
ref: 51
WASHER
0832201103
€ 2.50
52
0910310226
ref: 52
BOLT(10X265)
0910310226
€ 12.00
53
0915910047
ref: 53
NUT
0915910047
€ 7.50
